513 series

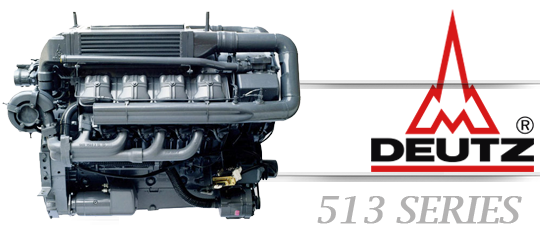

Deutz 513 Engines

Deutz engine 513 srries

Deutz 513 series air-cooled diesel engine is based on the original 413 series diesel engine, and the fuel system and fuel injection system are optimized and improved. Its stroke is increased from 130mm to 140mm, and the maximum torque can reach 1900Nm, which increases the torque reserve. Coefficient, reducing fuel consumption, especially the reduction of diesel engine speed, improving the service life of the whole machine. It also has the characteristics of good adaptability and convenient maintenance. It is an ideal supporting power for special vehicles, construction machinery, and power generation equipment with a power range of 180-406 kW.

Deutz engine 513 srries

LOW

Lifecycle Costs

LARGE

fast delivery

GREATER

Reliability

INNOVATIVE

Technology

BROAD

Product Range




Engine model BF 12 L 513 C
Engine type 4 stroke, 12 cylinder Vee
Displacement 1198 in3 / 19.144 L
Rated Power 230~406 kW @ 1500~2100 RPM
Peak Torque 1900N.m @ 1500~1700 RPM
Cooling type Air Cooled
Emission Standard EU II, US T2

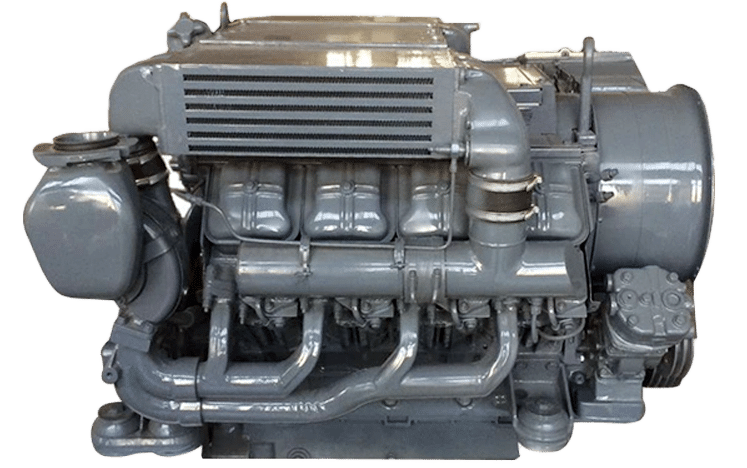

Engine model BF 8 L 513 C
Engine type 4 stroke, 8 cylinder Vee
Displacement 799 in3 / 12.763 L
Rated Power 192~265 kW @ 1500~2300 RPM
Peak Torque 1200N.m @ 1500~1700 RPM
Cooling type Air Cooled
Emission Standard EU II, US T2

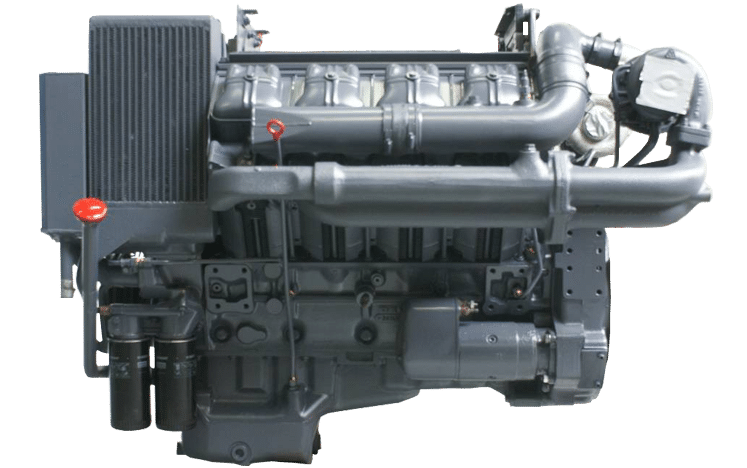

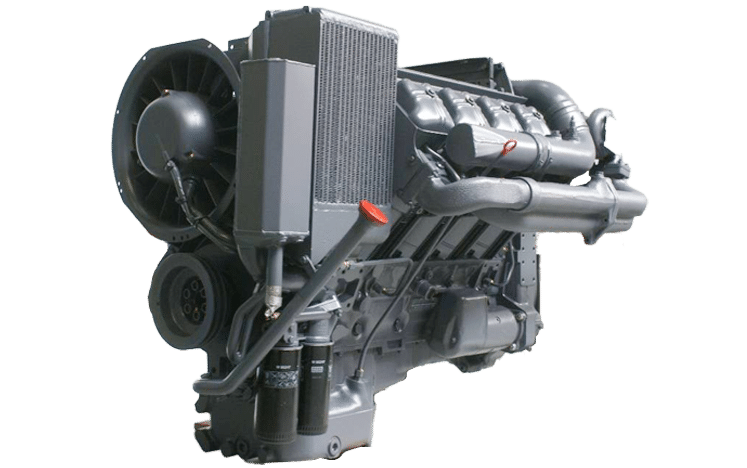

Engine model BF 8 L 513
Engine type 4 stroke, 8 cylinder Vee
Displacement 799 in3 / 12.763 L
Rated Power 235 kW @ 2300 RPM
Peak Torque 1170N.m @ 1500~1700 RPM
Cooling type Air Cooled
Emission Standard EU II, US T2
Engine model BF 8 L 513
Engine type 4 stroke, 8 cylinder Vee
Displacement 799 in3 / 12.763 L
Rated Power 213 kW @ 2300 RPM
Peak Torque 1060N.m @ 1500~1700 RPM
Cooling type Air Cooled
Emission Standard EU II, US T2

Deutz 513 series Air-cooled 8-,12-cylinder V engines.

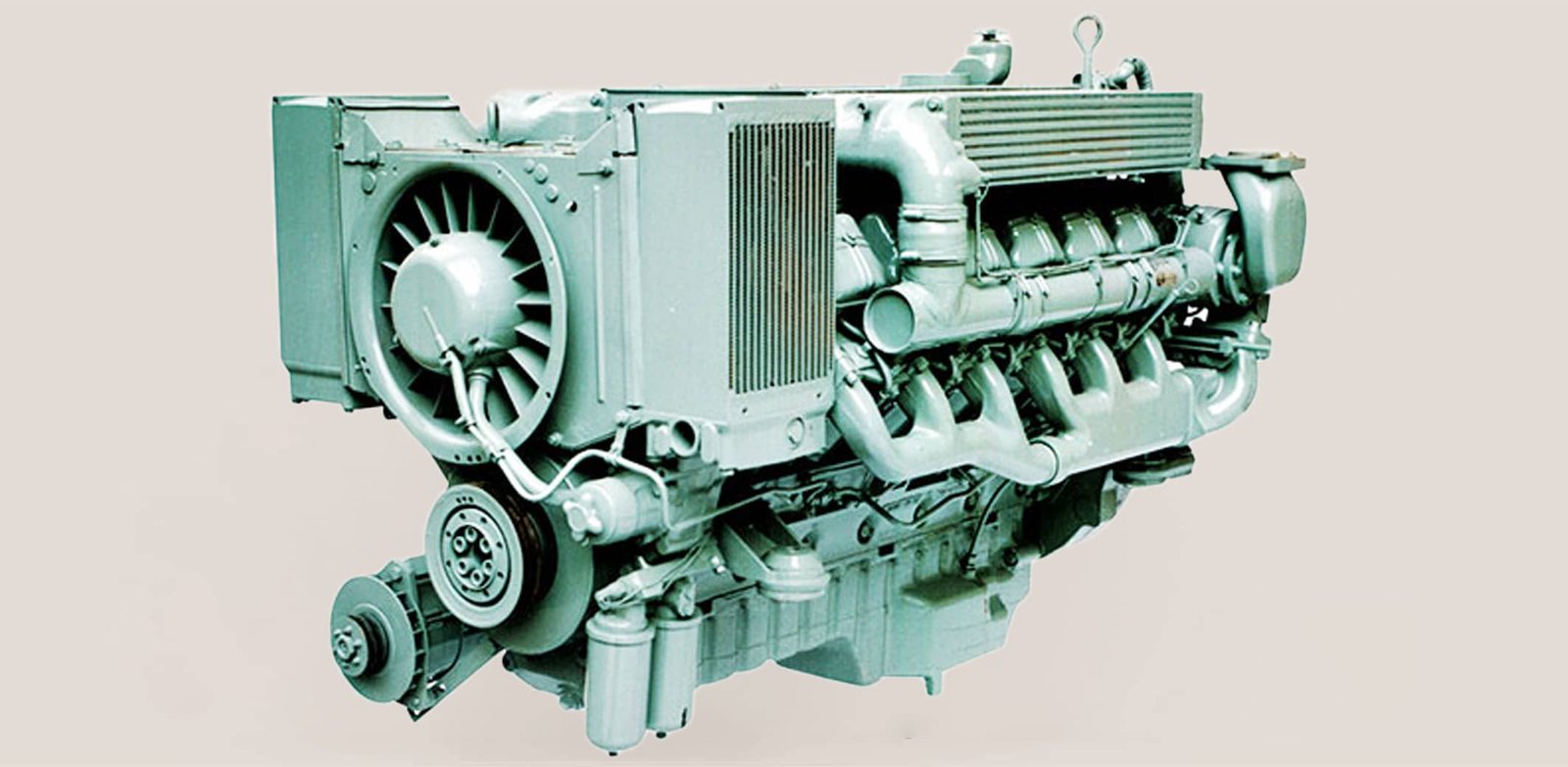

Deutz BF12L513C Engine

eutz 513 series Air-cooled 8-,12-cylinder V engines.

Models Bore * Stroke RPM range Maximum torque
BF 8 L 513 125 * 130 / 4.9 in * 5.1 in 2300 1060 Nm | 770 lb/ft
BF 8 L 513 125 * 130 / 4.9 in * 5.1 in 2300 1170 Nm | 850 lb/ft
BF 8 L 513 C 125 * 130 / 4.9 in * 5.1 in 1500~2300 1200 Nm | 875 lb/ft
BF 8 L 513 LC 125 * 130 / 4.9 in * 5.1 in 1500~2100 1506 Nm | 1095 lb/ft
BF 12 L 513 C 125 * 130 / 4.9 in * 5.1 in 1500~2100 1900 Nm | 1380 lb/ft
F 8 L 513 125 * 130 / 4.9 in * 5.1 in 2300 890 Nm | 647 lb/ft
F 12 L 513 125 * 130 / 4.9 in * 5.1 in 2300 1335 Nm | 970 lb/ft
