914 series

Deutz 914 Engines

Deutz engine 914 srries

Deuta 914 Air-cooled naturally aspirated series engine in inline arrangement. 4- and 6-cylinder engines also with turbocharging and optional charge air cooling. Low noise emissions due to acoustically optimized components with very smooth running and high durability. Also available with an electronic motor regulator (EMR) to allow easy integra- tion into the electronic device control and monitoring system. Best cold starting performance even under extreme conditions. Easy, inexpensive installation due to minimum weight and small installation space. The robust engine design allows world- wide operation even with high sulphur fuels. Highly efficient injection and combus- tion system ensures optimum engine performance at low consumption. A very good load response ensures an immediate power supply.

Deutz engine 914 srries

LOW

Lifecycle Costs

LARGE

fast delivery

GREATER

Reliability

INNOVATIVE

Technology

BROAD

Product Range





Deutz 914 Air-cooled 4- and 6-cylinder in-line engines.

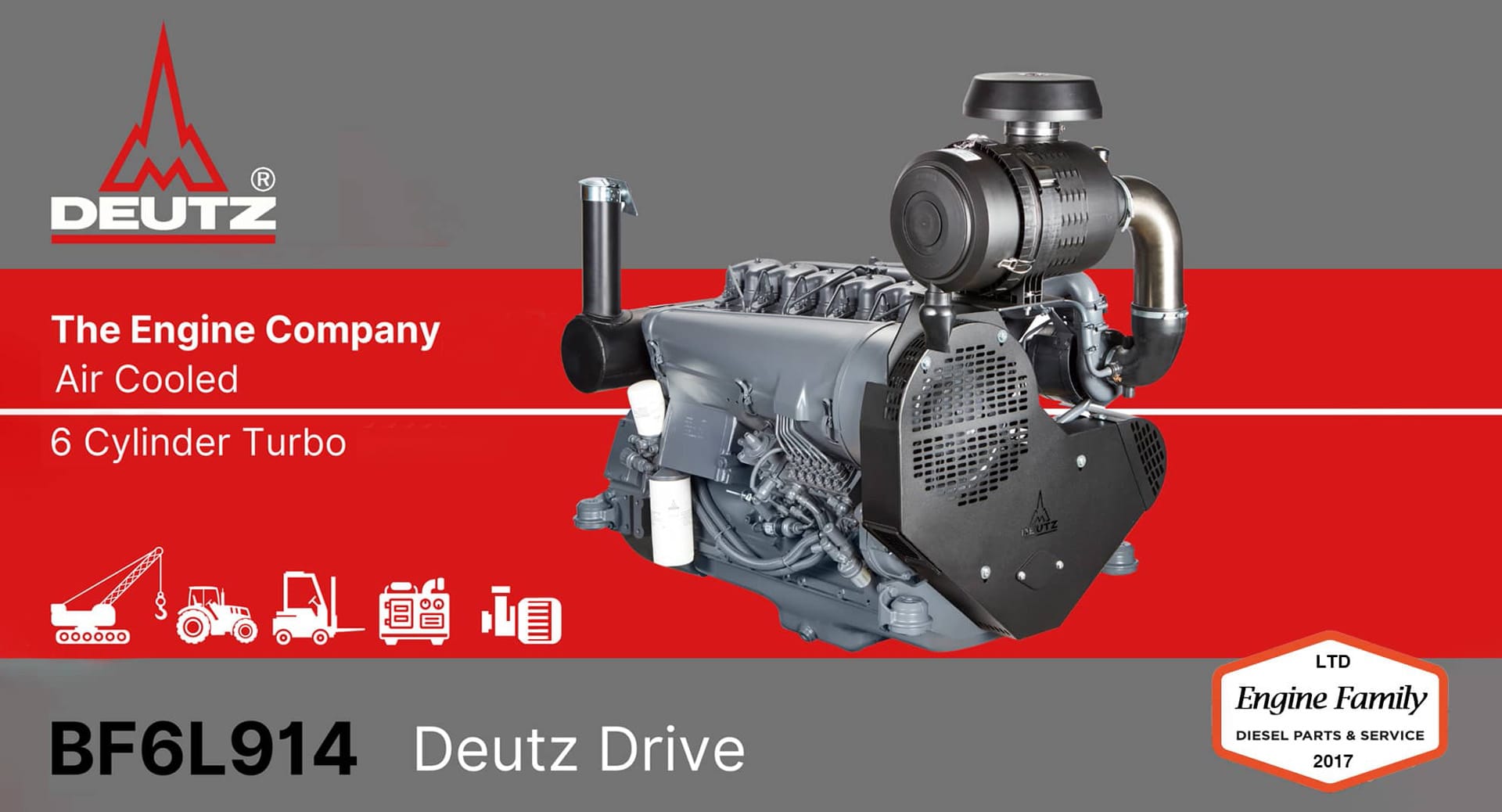

Deutz BF6L914 Engine

Deutz 914 Air-cooled 4- and 6-cylinder in-line engines.

Models Bore * Stroke RPM range Maximum torque
F 4 L 914 G 102 * 132 / 4.0 in * 5.2 in 2300~250 270 Nm | 198.99 lb/ft
F 6 L 914 G 102 * 132 / 4.0 in * 5.2 in 2300~2500 400 Nm | 294.80 lb/ft
BF 4 L 914 G 102 * 132 / 4.0 in * 5.2 in 2300~2500 350 Nm | 257.75 lb/ft
BF 6 L 914 G 102 * 132 / 4.0 in * 5.2 in 2300~2500 550 Nm | 405.35 lb/ft
BF 6 L 914 CG 102 * 32 / 4.0 in * 5.2 in 2300~2500 690 Nm | 508.53 lb/ft
F 4 L 914 E 102 * 132 / 4.0 in * 5.2 in 2300~2500 270 Nm | 198.99 lb/ft
F 6 L 914 E 102 * 132 / 4.0 in * 5.2 in 2300~2500 400 Nm | 294.80 lb/ft
BF 6 L 914 E 102 * 132 / 4.0 in * 5.2 in 2300~2500 550 Nm | 405.35 lb/ft
