Cummins develops and optimizes the integration of key components and provide customized secondary development for customers, enhanced cylinder designe of low noise ,low vibration.With articulated piston with forced cooling, it can withstand extremely high mechanical loads and thermal loads.
Products are supplied complete with cooling package and air cleaner kit for a complete power package. Each component has been specifically developed and rigorously tested for Cummins G-Drive standards, ensuring high performance, durability and reliability.
Four valves per cylinder for increased power with faster response and improved fuel economy. Integrated fluid circuits replace hoses and eliminate potential leaks.
Bosch P7100 type mechanical fuel injection pumps have high injection pressure, optimize engine performance and establish an unrivalled reputation for reliability. Electronic fuel shut off valve is robust design for safety for mechanical fuel system engine.
Cummins optimized turbocharger delivers increased power, fuel economy, low smoke and lower noise levels.
Strengthening electronic governor control unit to optimize engine speed stability, transient response and reliability.

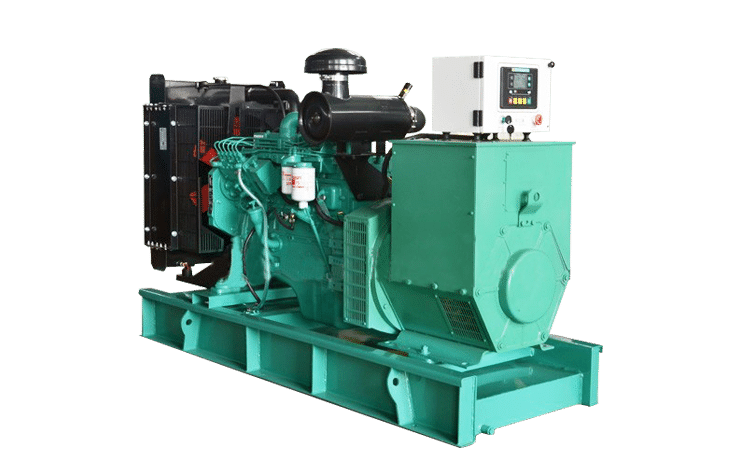

| Engine model | 6LTAA8.9-G3 |
| Engine type | 4 stroke, 6 cylinders in line |
| Displacement | 8.9 L |
| Rated Power | 230kW (287.5 Kva) @ 1500 rpm |
| Frequency | 50Hz / 60Hz |
| Cooled type | Radiator / water and fan |
| Alternator | Stamford / Marathon |

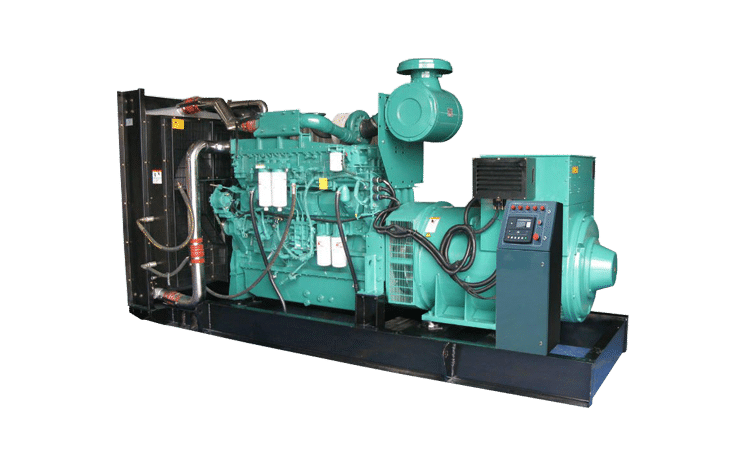

| Engine model | 6LTAA8.9-G2 |
| Engine type | 4 stroke, 6 cylinders in line |
| Displacement | 8.9 L |
| Rated Power | 220kW (275.5 Kva) @ 1500 rpm |
| Frequency | 50Hz / 60Hz |
| Cooled type | Radiator / water and fan |
| Alternator | Stamford / Marathon |
| Engine model | 6LTAA8.9-G3 |
| Engine type | 4 stroke, 6 cylinders in line |
| Displacement | 8.9 L |
| Rated Power | 250kW (312.5 Kva) @ 1500 rpm |
| Frequency | 50Hz / 60Hz |
| Cooled type | Radiator / water and fan |
| Alternator | Stamford / Marathon |
From dense urban areas to remote locations; communities and operations of every application and industry rely on robust, flexible, and fully integrated power systems on demand or full-time, in a global economy where the power is always on, 24/7.

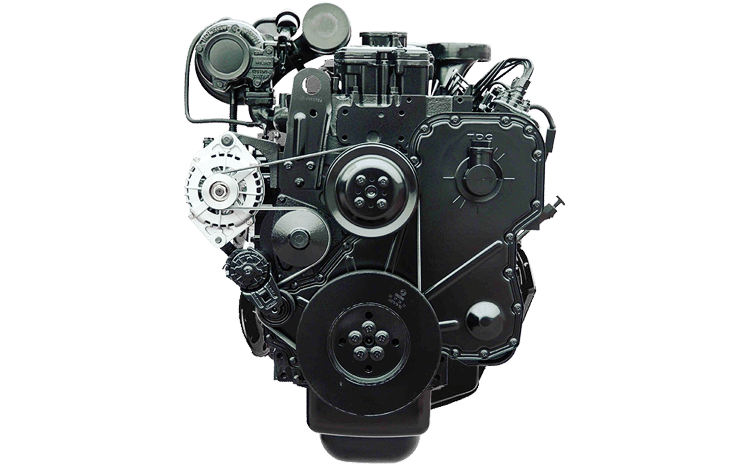

Cummins® 6L series engine has a mechanical fuel system which is designed to deliver robust performance in the most extreme conditions. It also has electronic governor controls for superior engine speed stability and transient response. The cylinder head has 24-valves and bigger flow injector design which provides one of the highest power-to-weight ratios in its class. At the same time, the 6L series engine delivers better fuel economy and less smoke emission than similar engines.
Our power system products include diesel and gas-powered generator sets ranging from 15 – 3750 kVA, alternators, diesel engines ranging from 49 – 5,500 hp, generator-drive engines, battery storage systems and integrated power systems that combine generator sets, paralleling controls and switchgear technologies, all connected to our industry-leading digital solutions for complete power system control.
All aspects of generator set design, manufacturing and service have been brought together in one company. All the major components – the engine, alternator, control systems and containers – are manufactured and built by Cummins. This integrated approach means each element of a generator set is matched to work in harmony from the start.
Cummins Power Generation has looked beyond today’s challenges, helping our customers meet their future needs by developing the next generation of power. It takes a globally integrated culture of knowledge, know-how and innovation to ensure this next generation of power is Always On. Our comprehensive portfolio delivers centralized as well as distributed energy solutions for your unique power need—commercial, industrial, marine, mining, recreational, emergency and residential.
