C Series

Cummins Generator engine C Series

DCEC Cummins B Series Generator engine

Cummins Generator engine C Series

  • Engine Design
  • Robust in-line six cylinder designed for high hour marine applications. Single piece crossflow cylinder head for maximum durability and optimized combustion. Replaceable wet cylinders for longer life and lower rebuild cost

  • Fuel System
  • Bosch in-line fuel pump operates at high injection pressures for cleaner combustion and lower emissions

  • Cooling System
  • Single loop keel cooling or engine mounted heat exchanger available for simplified installation. Optional fan drive for radiator applications

  • Exhaust System
  • SOLAS compliant, wet exhaust manifold with shielding or water cooled design available for lower engine surface temperatures and improved emissions

  • Air System
  • Cummins turbocharger optimized for marine applications with wastegate for exceptional transient response. Marine grade air filter

  • Fleetguard® Fuel Filters
  • These engines are equipped with Cummins Fleetguard fuel filters featuring nanotechnology-based media, designed to remove 98.7 percent of all particles as small as 4 microns, which is up to 13 times more than competing filters.

Cummins logo
Cummins logo
  • Construction Engines
  • Product Type Spectrum



Engine model 6CTA8.3-G1
Engine type 4 stroke, 6 cylinders in line
Displacement 8.3 L
Rated Power 163kW (255.9 Kva) @ 1500 rpm
Frequency 50Hz / 60Hz
Cooled type Radiator / water and fan
Alternator Stamford / Marathon
Engine model 6CTAA8.3-G2
Engine type 4 stroke, 6 cylinders in line
Displacement 8.3 L
Rated Power 183kW (228.8 Kva) @ 1500 rpm
Frequency 50Hz / 60Hz
Cooled type Radiator / water and fan
Alternator Stamford / Marathon
Engine model 6CTAA8.3-G2
Engine type 4 stroke, 6 cylinders in line
Displacement 8.3 L
Rated Power 203kW (253.8 Kva) @ 1500 rpm
Frequency 50Hz / 60Hz
Cooled type Radiator / water and fan
Alternator Stamford / Marathon

DIESEL GENERATOR TO MEET YOUR NEEDS.

DIESEL GENERATOR TO MEET YOUR NEEDS

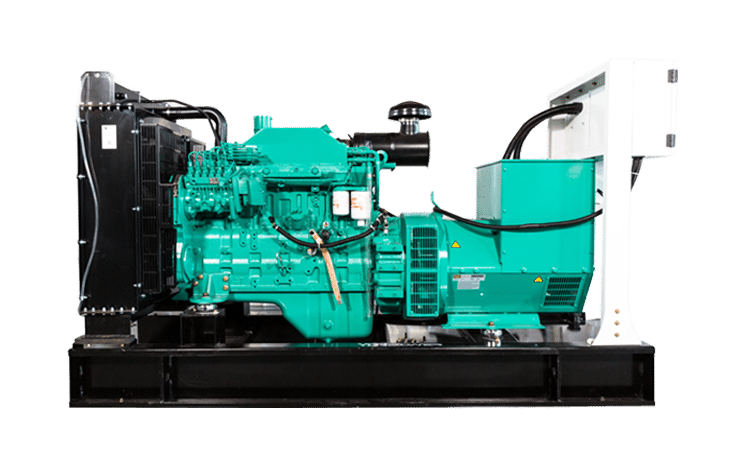

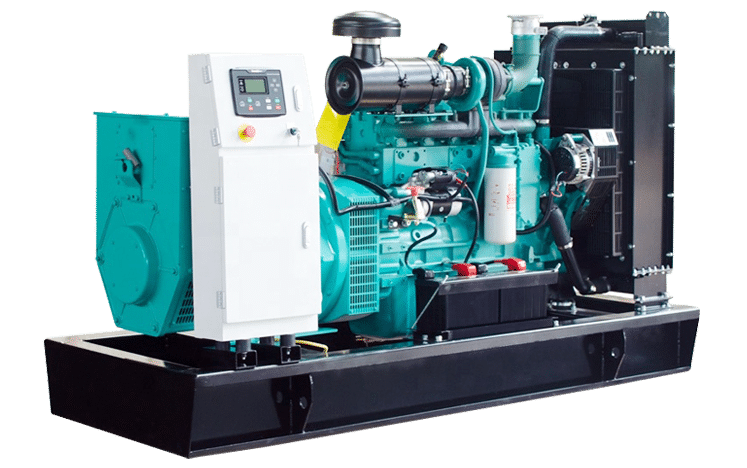

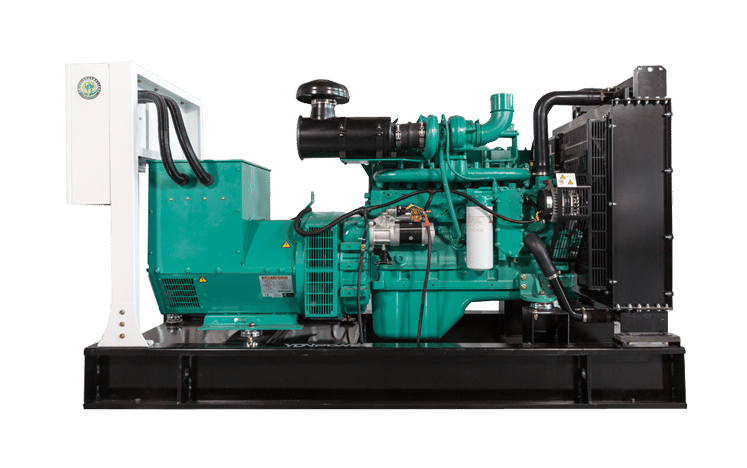

  • Cummins 6CT8.3 series Power Generation Set
  • C-Series engines have established an unrivalled reputation for reliability. Engines in the series incorporate features to reduce maintenance and enhance performance in order to meet the most demanding requirements of generator set operation.

    Advanced design and manufacturing workmanship,make it durable and reliable The fuels burn more fully under Bosch inline fuel pump, high injection pressure , less energy loss , more powerful , strong adaptability fuel.

    Cylinder liners are designed with platen honing and corrosion-resistant high-nickel cast iron pistons, greatly reducing oil loss, enhancing durability and extending service life.

  • Cummins 6C series Power Generation Set Features
  • Coolpac Integrated Design - Supplied with cooling package and air cleaner kit for a complete power package.

    Single Poly Vee belt drive, for fan, alternator and water pump, with self-tensioning idler for minimum maintenance.

    Inline-type Bosch P-Series pump operates at high injection pressures for cleaner combustion and lower emissions.

    Spin-on fuel filter and full-flow lubricating oil filter. Top mounted Holset HX40W turbo-charger for increased power, fuel economy, and lower smoke and noise levels.

    Service and Support - G-Drive products are backed by an uncompromising level of technical support and after sales service, delivered through a world class service network.
