Deutz 913 series engines

Deutz 913 Engines

Air-cooled naturally aspirated engine in inline arrangement. Low noise emissions due to acoustically optimized components with very smooth running and high durability. Easy, inexpensive installation due to minimum weight and small installation space. Best cold starting performance even under extreme conditions. The robust engine design allows worldwide operation even with high sulphur fuels. Highly efficient injection and combustion system ensures optimum engine performance at low consumption. A very good load response ensures an immediate power supply. Deutz 913 series air-cooled engine is produced by the Deutz factory in Beinei, China authorized by Deutz Germany, and is processed completely according to the Deutz production technology and product line of Germany. The quality is exactly the same as German Deutz.

LOW

Lifecycle Costs

LARGE

fast delivery

GREATER

Reliability

INNOVATIVE

Technology

BROAD

Product Range

F 4 L 913 G

Engine model	F 4 L 913 G
Engine type	4 stroke, 4 cylinder in-line
Displacement	249 in³ / 4.086 L
Rated Power	50～56 kW @ 2300～2500 RPM
Peak Torque	250N.m @ 1600 RPM
Cooling type	Air Cooled
Applicable	Construction machinery

F 6 L 913 G

Engine model	F 6 L 913 G
Engine type	4 stroke, 6 cylinder in-line
Displacement	374 in³ / 6.128 L
Rated Power	79～85 kW @ 2300～2500 RPM
Peak Torque	380N.m @ 1600 RPM
Cooling type	Air Cooled
Applicable	Construction machinery

BF 4 L 913 G

Engine model	BF 4 L 913 G
Engine type	4 stroke, 4 cylinder in-line
Displacement	249 in³ / 4.086 L
Rated Power	68～78 kW @ 2300～2500 RPM
Peak Torque	340N.m @ 1600 RPM
Cooling type	Air Cooled
Applicable	Construction machinery

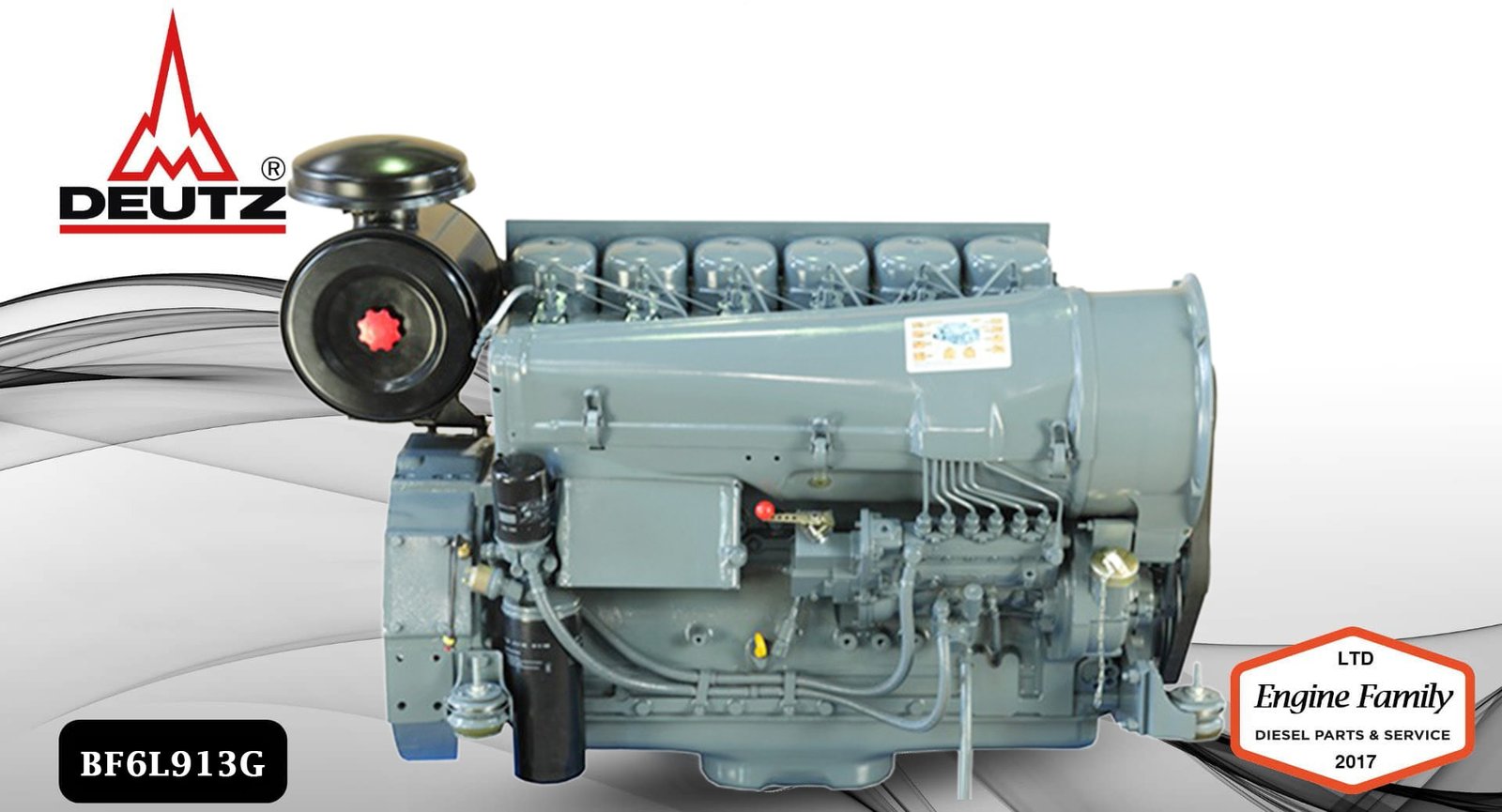

BF 6 L 913 G

Engine model	BF 6 L 913 G
Engine type	4 stroke, 6 cylinder in-line
Displacement	374 in³ / 6.128 L
Rated Power	112～118 kW @ 2300～2500 RPM
Peak Torque	490N.m @ 1600 RPM
Cooling type	Air Cooled
Applicable	Construction machinery

BF 6 L 913 CG

Engine model	BF 6 L 913 CG
Engine type	4 stroke, 6 cylinder in-line
Displacement	374 in³ / 6.128 L
Rated Power	125～141 kW @ 2300～2500 RPM
Peak Torque	620N.m @ 1600 RPM
Cooling type	Air Cooled
Applicable	Construction machinery

F 4 L 913 D

Engine model	F 4 L 913 D
Engine type	4 stroke, 4 cylinder in-line
Displacement	249 in³ / 4.086 L
Continuous Power	34～40 kW @ 1500～1800 RPM
Maximum power	37～44 kW @ 1500～1800 RPM
Cooling type	Air Cooled
Applicable	Gen sets

F 6 L 913 D

Engine model	F 6 L 913 D
Engine type	4 stroke, 6 cylinder in-line
Displacement	249 in³ / 6.128 L
Continuous Power	51～65 kW @ 1500～1800 RPM
Maximum power	54～68 kW @ 1500～1800 RPM
Cooling type	Air Cooled
Applicable	Gen sets

BF 4 L 913 D

Engine model	BF 4 L 913 D
Engine type	4 stroke, 4 cylinder in-line
Displacement	249 in³ / 4.086 L
Continuous Power	57～66 kW @ 1500～1800 RPM
Maximum power	62～71 kW @ 1500～1800 RPM
Cooling type	Air Cooled
Applicable	Gen sets

BF 6 L 913 D

Engine model	BF 6 L 913 D
Engine type	4 stroke, 6 cylinder in-line
Displacement	374 in³ / 6.128 L
Continuous Power	88～106 kW @ 1500～1800 RPM
Maximum power	92～112 kW @ 1500～1800 RPM
Cooling type	Air Cooled
Applicable	Gen sets

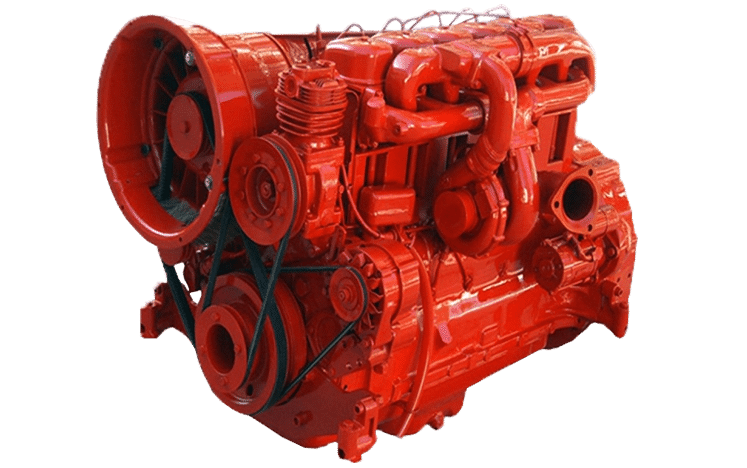

BF 6 L 913 CD

Engine model	BF 6 L 913 CD
Engine type	4 stroke, 6 cylinder in-line
Displacement	374 in³ / 6.128 L
Continuous Power	114～130 kW @ 1500～1800 RPM
Maximum power	120～136 kW @ 1500～1800 RPM
Cooling type	Air Cooled
Applicable	Gen sets

F 4 L 913 G

Engine model	F 4 L 913 G
Engine type	4 stroke, 4 cylinder in-line
Displacement	249 in³ / 4.086 L
Rated Power	50～56 kW @ 2300～2500 RPM
Peak Torque	250N.m @ 1600 RPM
Cooling type	Air Cooled
Applicable	Agri

BF 6 L 913 G

Engine model	BF 6 L 913 G
Engine type	4 stroke, 6 cylinder in-line
Displacement	374 in³ / 6.128 L
Rated Power	112～118 kW @ 2300～2500 RPM
Peak Torque	490N.m @ 1600 RPM
Cooling type	Air Cooled
Applicable	Agri

Deutz 913 Air-cooled 4- and 6-cylinder in-line engines.

Deutz 913 Air-cooled 4- and 6-cylinder in-line engines.

Models	Bore * Stroke	RPM range	Maximum torque
F 4 L 913 G	102 * 125 / 4.0 in * 4.92 in	2300～250	250 Nm \| 184.38 lb/ft
F 6 L 913 G	102 * 125 / 4.0 in * 4.92 in	2300～2500	380 Nm \| 280.25 lb/ft
BF 4 L 913 G	102 * 125 / 4.0 in * 4.92 in	2300～2500	340 Nm \| 250.75 lb/ft
BF 6 L 913 G	102 * 125 / 4.0 in * 4.92 in	2300～2500	490 Nm \| 361.38 lb/ft
BF 6 L 913 CG	102 * 125 / 4.0 in * 4.92 in	2300～2500	620 Nm \| 457.25 lb/ft
F 4 L913 D	102 * 125 / 4.0 in * 4.92 in	1500～1800	N / A
F 6 L 913 D	102 * 125 / 4.0 in * 4.92 in	1500～1800	N / A
BF 6 L 913 CD	102 * 125 / 4.0 in * 4.92 in	1500～1800	N / A
