As a result of intensive research, ValueSpares coolants are specially designed for use in MTU engines to protect your equipment. In cold environments, they offer a low freezing point, protecting engines from damage. They also elevate the boiling point during hot conditions and severe duty.
ValueSpares coolants protect the cooling system from all kinds of corrosion. Coolant produces a durable protective layer that insulates cylinder liners and water pumps from cavitation (pitting) damage. With exceptional thermal transfer characteristics, ValueSpares coolants feature high temperature stability, which prevents overheating.
For further protection, the coolants inhibit the formation of corrosion, which can lead to leaks and other costly parts damage.
ValueSpares coolants protect the cooling system from all kinds of corrosion. Coolant produces a durable protective layer that insulates cylinder liners and water pumps from cavitation (pitting) damage. With exceptional thermal transfer characteristics, ValueSpares coolants feature high temperature stability, which prevents overheating.
For further protection, the coolants inhibit the formation of corrosion, which can lead to leaks and other costly parts damage.

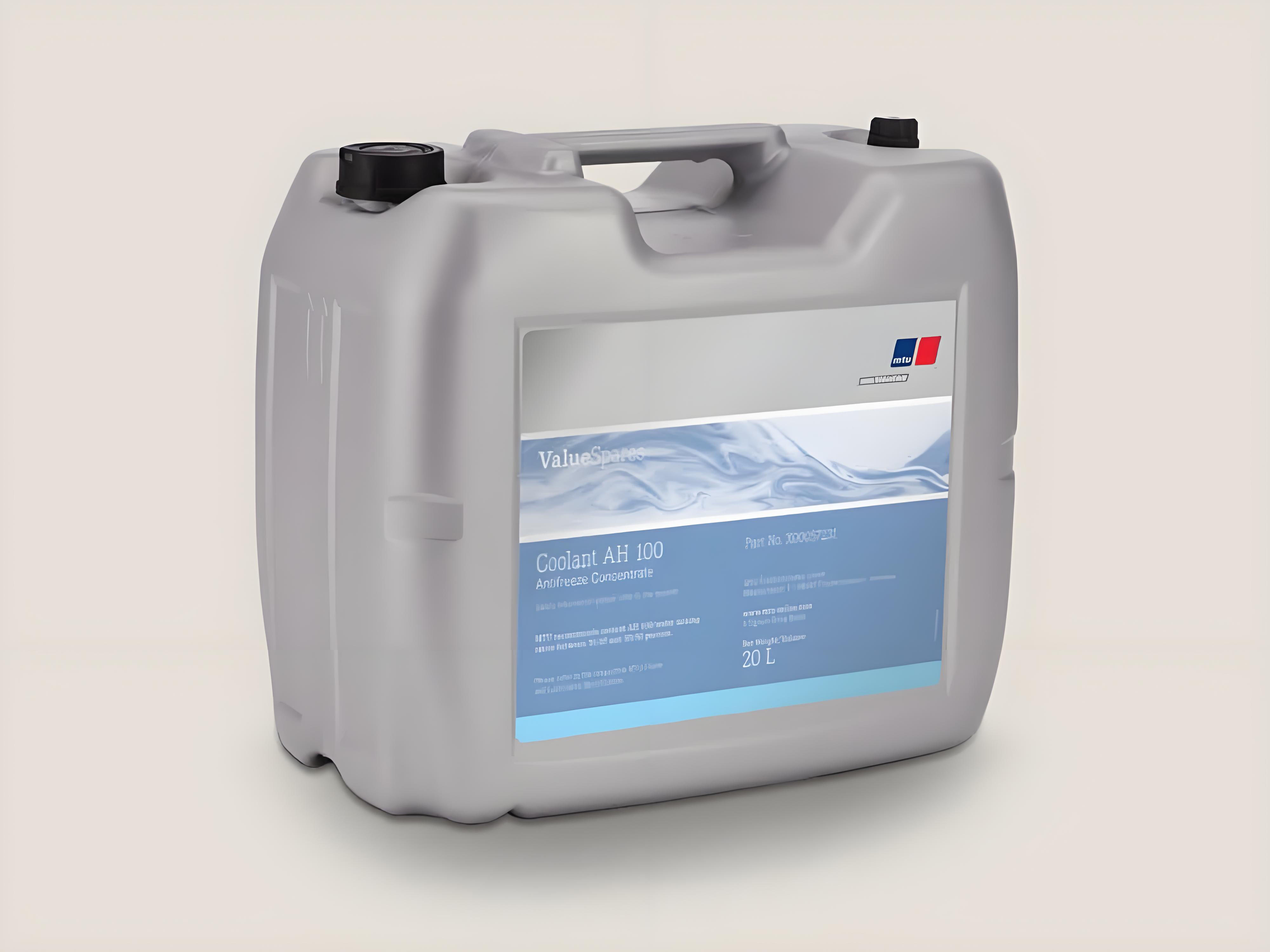

| Coolant AH 100 Antifreeze Concentrate | Coolant CS 100 Corrosion Inhibitor Concentrate | |
| Storage stability | Shelf life of at least three years when stored in original, sealed (unopened), air-tight containers at temperatures of up to 30°C. | Shelf life of at least three years when stored in original,sealed (unopened), air-tight containers at temperatures of up to 30°C. |
| Water mixture | MTU recommends coolant AH 100/water mixing ratios between 35/65 and 50/50 percent. Freezing point approximately - 25 °C (35/65 mixture) / - 40°C (50/50 mixture) | MTU recommends a mix of 10% CS 100 to 90% water. |
| Change interval | 9000 hours or 5 years, whichever comes fi rst. | 6000 hours or 2 years, whichever comes fi rst. |
| Available sizes | 20 liters and 210 liters | 20 liters and 210 liters |
| Appearance | Blue | Green |
Approved by MTU for use in MTU engines, ValueSpares coolants are the perfect choice to optimize performance. Our MTU coolant antifreeze concentrate AH 100 and corrosion inhibitor concentrate CS 100 are perfectly formulated to provide maximum protection for your cooling system.
Cooling fl uid (a mixture of coolant concentrate and water) absorbs and removes thermal energy generated during combustion. With outstanding thermal transfer characteristics, ValueSpares coolants protect the engine block, cylinder heads and other components against overheating and engine damage, which can result in avoidable repair costs and downtime.
Without MTU coolant, the oxygen in the water can lead to a chemical reaction with the metallic components in the cooling system during engine operation. To avoid this problem and prevent corrosion, MTU coolants contai suitable additives which form a protective fi lm on engine components.
Cavitation involves the formation and break-up of vapor bubbles in engine coolant cavities such as water pumps and cylinder liners. When vapor bubbles implode, they cause a crater-like material erosion known as cavitation. MTU coolants guard against this problem, forming a protective fi lm on metal components. The fi lm acts as a shield that absorbs energy from imploding vapor bubbles.
Since water expands when it freezes, using water soluble corrosion inhibitors in the cooling system of a combustion engine can cause extensive damage. MTU Antifreeze Concentrate – AH 100 – is specially formulated for use at extremely low temperatures in cold regions, as the glycol constituent in the concentrate enables the freezing point of the coolant to be lowered to suitable levels, depending on mixing ratios.
ValueSpares coolants are free from nitrites, amines and phosphates.
The following mtu ValueCare antifreezes for cooling systems containing light metal are available from Rolls-Royce Solutions in individual regions:
Important information: For the Series 4000-04 and 4000-05, only coolants marked with an asterisk * in the brand name can be used!
The following mtu ValueCare antifreezes for cooling systems containing light metal are available from Rolls-Royce Solutions in individual regions:
Important information: For the Series 4000-04 and 4000-05, only coolants marked with an asterisk * in the brand name can be used!
| Manufacturer | Brand name | Operating time Hour / Year |
Comments / Material number |
| MTU Friedrichshafen GmbH |
Coolant AH100* Antifreeze Concentrate |
9000 / 5 | X00057231 (20 l) X00057230 (210 l) X00068202 (1000 l) |
| BASF SE | Glysantin G05 | 9000 / 5 | |
| Glysantin G48 blue green* | 9000 / 5 | X00058054 (25 l) X00058053 (210 l) |
|
| Glysantin G30 pink* | 9000 / 5 | X00058072 (canister) X00058071 (barrel) |
|
| Fuchs Petrolub SE | Maintain Fricofin | 9000 / 5 | |
| Maintain Fricofin G12 Plus | 9000 / 3 | X00058074 (canister) X00058073 (barrel) |
|
| Krafft S.L.U. | Refrigerante ACU 2300 | 9000 / 3 | X00058075 (barrel) |

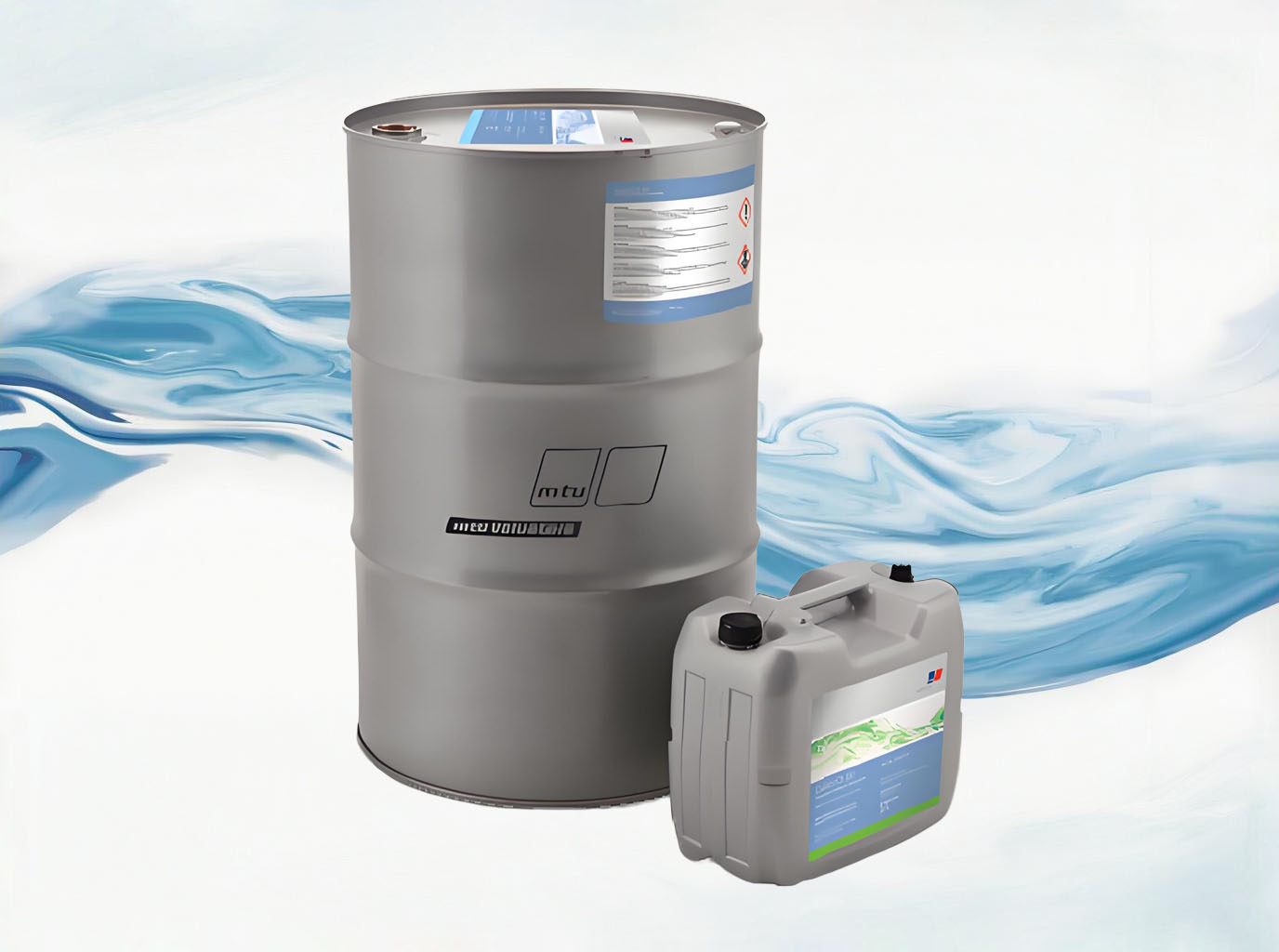

Coolant CS 100 protects against cavitation and corrosion of all metals and alloys used in cooling systems such as aluminium, ferrous and yellow metals. This coolant can be used in regions where frost protection is not a requirement.
Coolant CS 100 protects against cavitation and corrosion of all metals and alloys used in cooling systems such as aluminium, ferrous and yellow metals. This coolant can be used in regions where frost protection is not a requirement.
| Color | Green |
| Mixing ratios and | 10% CS 100 / 90% water For preparation of the coolant use clean water. For the accurate requirements of water, please refer to the respective Fluids and Lubricats Specification. |
| Storage stability | At least three years when stored in original, sealed (unopened), air-tight containers at temperatures of max. 30°C |
| Change intervals | 6000 hours or 2 years, whichever comes first |
| Part No. | Designation | Container |
| X00057233 | Coolant CS 100 Corrosion Inhibitor Concentrate | 20 Liters |
| X00057232 | Coolant CS 100 Corrosion Inhibitor Concentrate | 210 Liters |
