| PART NUMBER | X50441600048 |

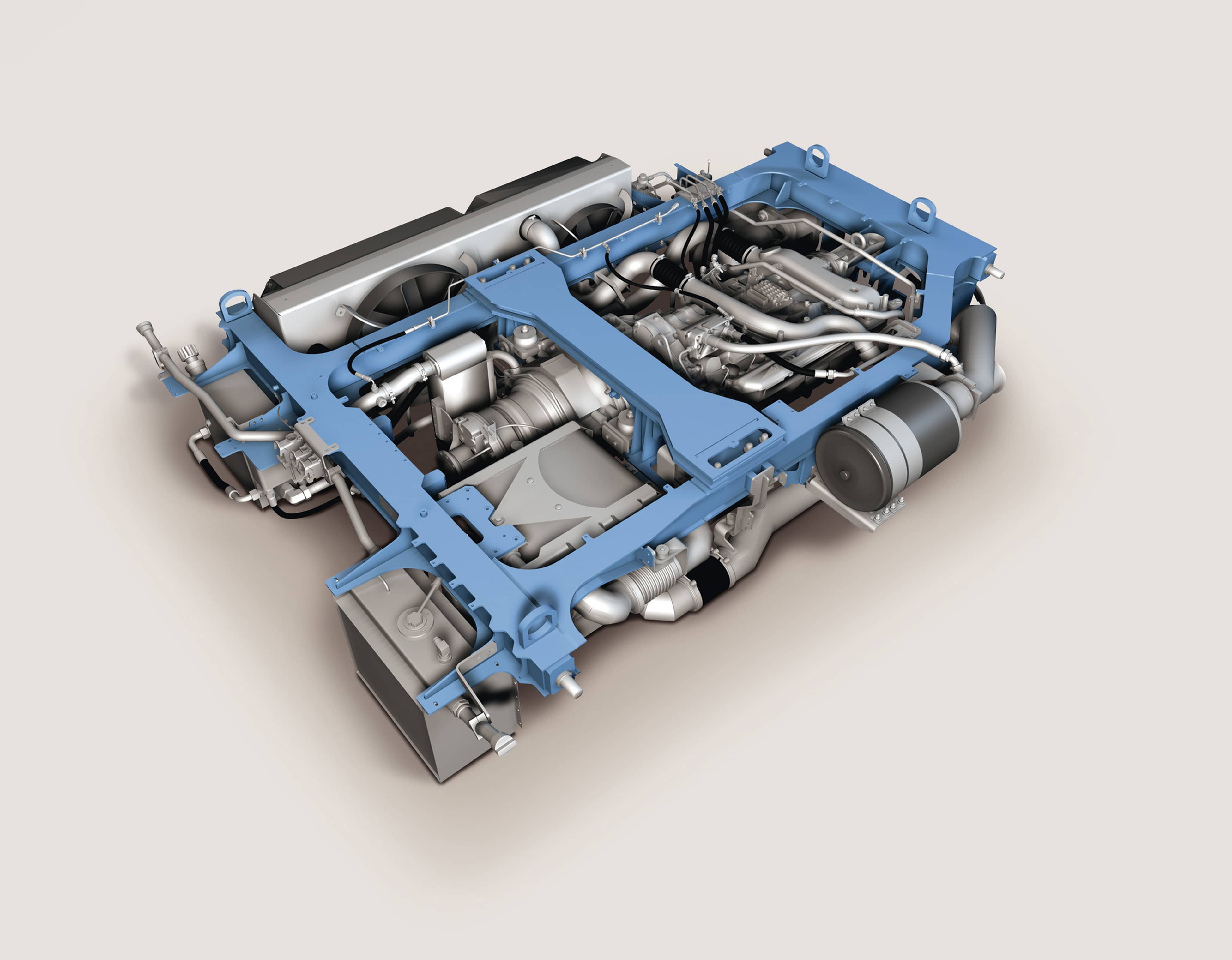

| ENGINE TYPE | MTU POWERPACK SERIES 1800 |
| DESCRIPTION | AIR HOSE |
| DIMENSIONS | N/A |
| UNIT WEIGHT | 0.815 KG |
| HS CODE | 40094100 |
| NATO-VERS.-NR. | N/A |

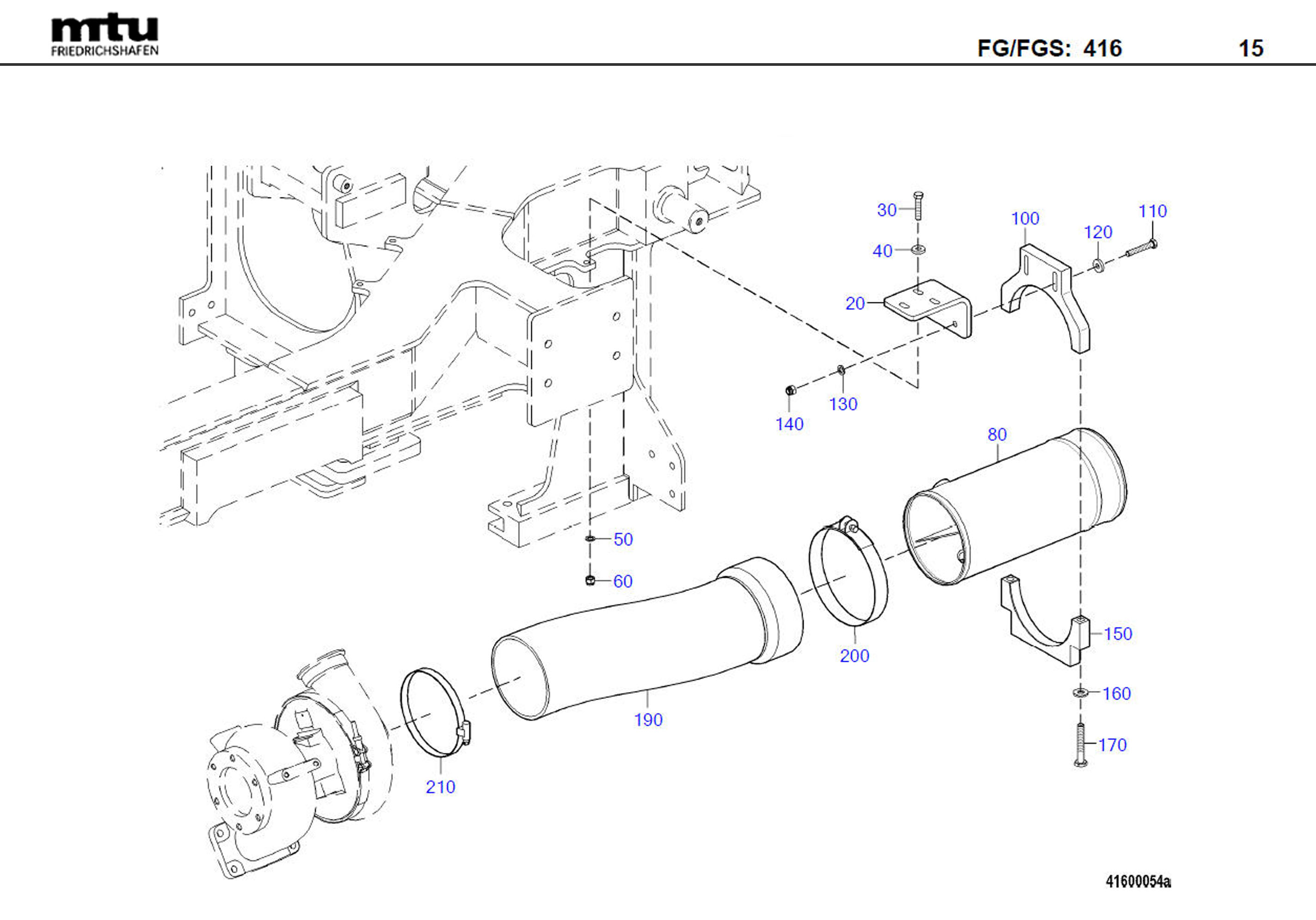

| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 20 | HOLDER FOR INTAKE AIR SYSTEM | X50440100063 | 01 |
| 30 | HEX SCREW | 304017008085 | 02 |
| 35 | LEVEL MONITOR | 304017008086 | 01 |
| 40 | WASHER | 007349008002 | 03 |
| 50 | WASHER | 200433008401 | 03 |
| 60 | NUT | 0005315082 | 03 |
| 65 | RETAINER | 5061323340 | 01 |
| 80 | AIR INTAKE PIPE FOR POWERPACK | X50441600006 | 01 |
| 100 | PIPE HALF-CLAMP | X00013558 | 00 |
| 110 | HEX SCREW | 304017008087 | 02 |
| 120 | WASHER | 007349008002 | 02 |
| 130 | WASHER | 200433008401 | 02 |
| 140 | NUT | 5069900251 | 02 |
| 150 | PIPE HALF-CLAMP | X00013591 | 01 |
| 160 | CONICAL SPR. WASHER | 206796010000 | 02 |
| 170 | HEX SCREW | 000931010230 | 02 |
| 190 | AIR HOSE | X50441600048 | 01 |
| 200 | CLAMP | 900288156004 | 01 |
| 210 | CLAMP | 000000000677 | 01 |
| 230 | HOSE | X50441400004/88 | 01 |
| 240 | CLAMP | 000000000667 | 04 |
| 250 | HOSE ADAPTER | X50499100001 | 01 |
| 260 | COPPER SEALING RING | 007603030101 | 03 |
| 270 | HEX SCREW | 304017008084 | 02 |
| 300 | WASHER | 200433008401 | 02 |
| 310 | HEX SCREW | 304017008085 | 02 |
| 320 | HOSE | X50441400004/88 | 01 |
| 330 | UNION | 915006020005 | 02 |
| 340 | ELBOW | X50499100311 | 02 |
| 350 | CLAMP | 916016035201 | 03 |
| 360 | NUT | 5069900251 | 01 |
| 370 | HEX SCREW | 304017008083 | 01 |
| 380 | HOSE | 007349008002 | 01 |
| 390 | CLAMP | 916016035203 | 01 |
| C/N | New Part Number | Superseded Part Number | Valid From Date |
|---|---|---|---|
| 01 | X50441600048/88 | X50441600048 | N/A |
| 02 | X50441600048/88 | X50441600048/88 | 2025/04/16 |
| Make | Emissions EU Stage | Power KW | U/MIN |
|---|---|---|---|
| 6H 1800 R81 | IIIA / IIIB / V | 315 | 1800 |
| 6H 1800 R75 | IIIA / IIIB / V | 315 | 1800 |
| 6H 1800 R76 | IIIA / IIIB / V | 315 | 1800 |
| 6H 1800 R82 | IIIA / IIIB | 335 | 1800 |
| 6H 1800 R75L | IIIA / IIIB | 335 | 1800 |
| 6H 1800 R83 | IIIA / IIIB | 360 | 1800 |
| 6H 1800 R85 | IIIA / IIIB | 360 | 1800 |
| 6H 1800 R86 | V | 375 | 1800 |
| 6H 1800 R84 | IIIA / IIIB | 390 | 1800 |
| 6H 1800 R85L | IIIA / IIIB | 390 | 1800 |
| 6H 1800 R48P | IIIA / IIIB | 390 | 1800 |
| 6H 1800 R81P | IIIA / IIIB / V | 315 | 1800 |
