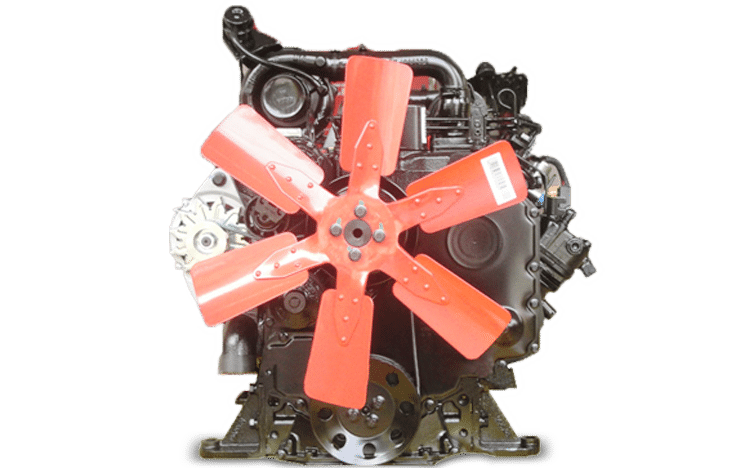

| Engine model | 4BTAA3.9-C130 |
| Engine type | 4 stroke, 4 cylinders in line |
| Displacement | 3.9 L |
| Rated Power | 97kW (130 HP) @ 2200rpm |
| Peak Torque | 510 N.m @ 1400rpm |
| Emission Standard | Euro II |
| Use for | Construction machinery |
Cummins engine 4BTAA3.9-C130 technique specification |
|
|---|---|
| Bore*stroke | 102 * 120mm |
| Intake method | Turbochager & Intercooled |
| Fuel systeme | Direct Injection Pump |
| Cooling method | Fluid Cooling 8.3 L |
| Governor Type | Mechanical Control |
| Compression Ratio | 17.3 : 1 |
| Idle Speed | 750 rpm |
| Starting System | Electrical Starting Motor 24V/750A,12V/500A |
| Lowest Starting Temp .(with/without auxiliary system) | -10℃/-25℃ |
Cummins diesel engine 4BTAA3.9-C130 trade information |
|
| Warranty time | 1year or 1500h |
| Engine Size(L*W*H) | 867mm*544mm*988mm |
| Packing size | 920mm*600mm*1040mm |
| Weight net | 338 Kg |
| Weight gross | 398 Kg |
| Delivary port | Shanghai |
| Marine delivary boat | Masket/zhongyuan |
| Delivary time | 15 working days |
| Trade termes | FOB/CIF/CNF |
| Payement termes | T/T，L/C |
| Mode of transport | Sea transportation or air transportation |
