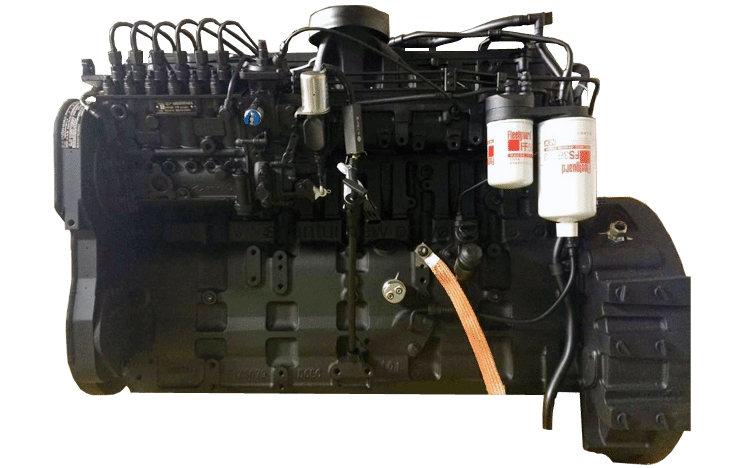

Engine model 6CTAA8.3-C215
Engine type 6 cylinders in line
Displacement 8.3 L
Rated Power 160 kW/215HP @ 2200rpm
Peak Torque 900 N.m @ 1500 rpm
Emission Standard Euro II
Manufacturer DCEC Cummins
Cummins logo
Cummins logo
  • Product advantages
  • Cummins parts

Cummins engine 6CTAA8.3-C215 technique specification

Bore*stroke 114 mm* 135mm
Intake method Turbocharged & Aftercooled
Fuel systeme Weifu PW2000/RSV
Cooling method Fluid Cooling 9.80 L
Governor Type Mechanical Control
Compression Ratio 18 : 1
Fuel Consumption 223g/kW.h @ Rated Power
Lowest Starting Temp .(with/without auxiliary system) -12℃
Starting System Electrical Starting Motor 12V/24V

Cummins diesel engine 6CTAA8.3-C215 trade information

Warranty time 1year or 1500h
Engine Size(L*W*H) 1560mm*900mm*1400mm
Packing size 1680mm*1020mm*1480mm
Weight net 760 Kg
Weight gross 850 Kg
Delivary port Shanghai
Marine delivary boat Masket/zhongyuan
Delivary time 15 working days
Trade termes FOB/CIF/EXW
Payement termes T/T,L/C
Mode of transport Sea transportation or air transportation

Original/genuine parts

Genuine Cummins Parts | 3945329

Bushing | P/N: 3945329

Cummins spare parts | P/N: 3944163

Craneshaft bearing | P/N: 3944163

Cummins diesel parts | P/N: 3924582

Intake Valve Seat | P/N: 3924582

Cummins engine parts | P/N: 4024883

Oil Seal | P/N: 4024883

Cummins parts guarantee of engine durability and reliability

Cummins parts
Cummins parts
Cummins parts

Choose Genuine. Because There is a Difference.

Genuine Cummins Parts

Choose Genuine. Because There is a Difference.

Using Genuine Cummins parts makes all the difference. Genuine Cummins new and ReCon® parts are guaranteed to fit right and work right.

Extend the life of your equipment by choosing the best parts for your Cummins engine or generator.

Backed by Cummins with a 100% comprehensive warranty on parts, labour and progressive damage nothing works better or lasts longer.

The difference between Genuine Cummins parts and non-genuine parts isn’t always the easiest to detect.

Precision design, state-of-the-art manufacturing and rigorous testing ensures that Genuine Cummins parts perform at Cummins factory-specified levels of durability, reliability and performance.

Don't see the parts you are looking for? Click Here and we can get it for you or send you a quote from the thousands of commonly used Cummins parts.
