Engine model 6LTAA8.9-C260
Engine type 4 stroke, 6 cylinders in line
Displacement 8.9 L
Rated Power 194 kW/260HP @ 2200rpm
Peak Torque 1240N.m @ 1400 rpm
Emission Standard Euro II
Manufacturer DCEC Cummins
Cummins logo
Cummins logo
  • Product advantages
  • Cummins parts

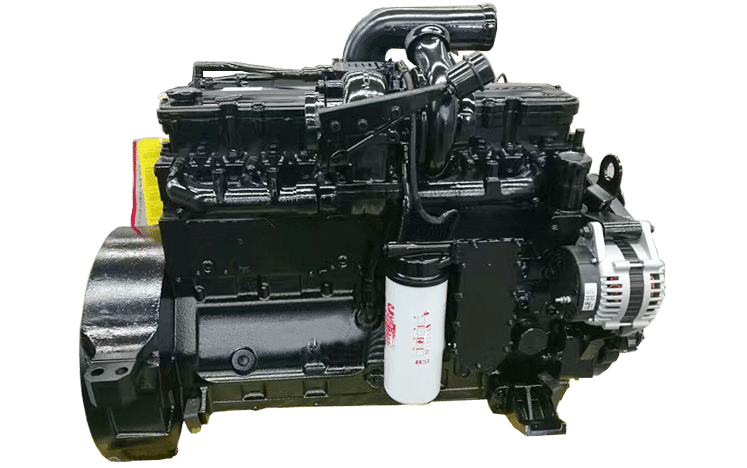

Cummins engine 6LTAA8.9-C260 technique specification

Bore*stroke 114 mm* 135mm
Intake method Turbocharged Air-Air intercooled
Fuel systeme PW2000 Pump/RSV Governor Regulation
Cooling method Fluid Cooling 9.80 L
Governor Type Mechanical Control
Compression Ratio 16.6 : 1
Fuel Consumption 210g/kW.h @ Rated Power
Center of gravity from front face of block 427 mm
Center of gravity above crankshaft centerline 163 mm

Cummins diesel engine 6LTAA8.9-C260 trade information

Warranty time 1year or 1500h
Engine Size(L*W*H) 1400mm*800mm*1040mm
Packing size 1550mm*950mm*1450mm
Weight net 604 Kg
Weight gross 700 Kg
Delivary port Shanghai
Marine delivary boat Masket/zhongyuan
Delivary time 15 working days
Trade termes FOB/CIF/EXW
Payement termes T/T,L/C
Mode of transport Sea transportation or air transportation

Original/genuine parts

Genuine Cummins Parts | 3943841

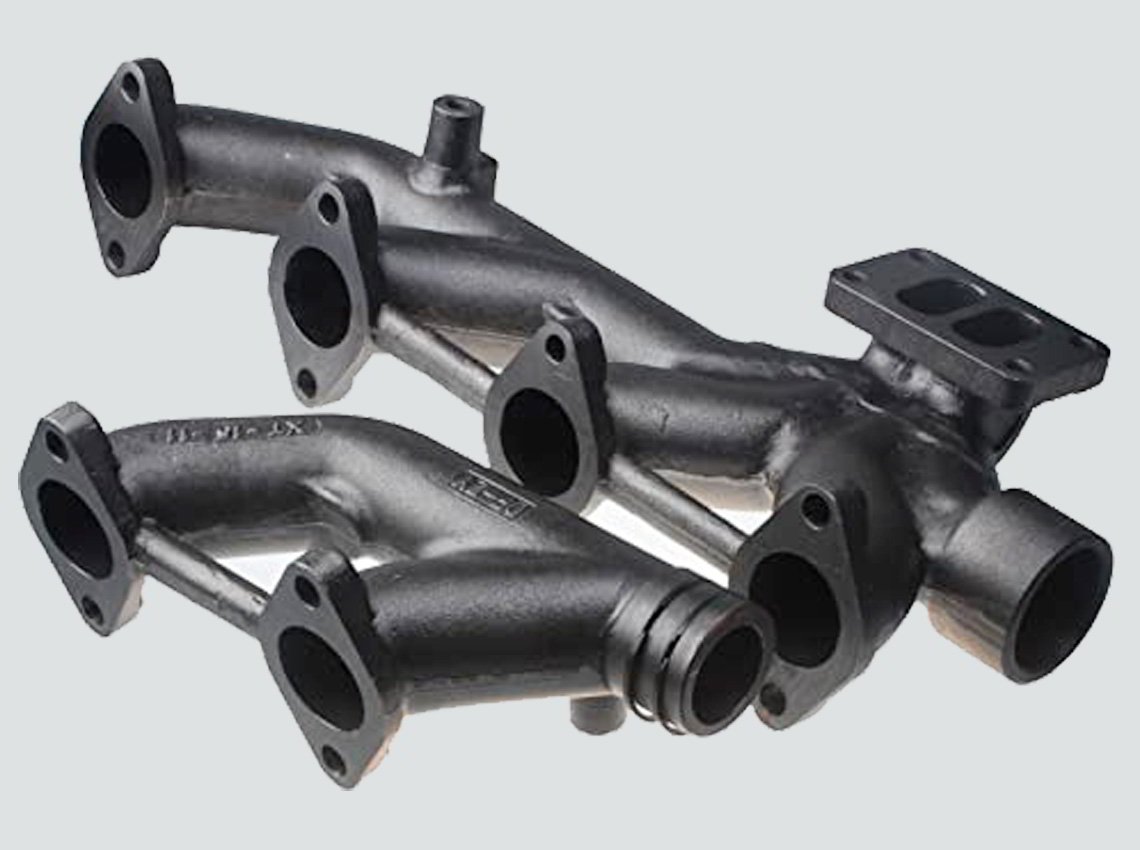

Manifold exhaust | P/N: 3943841

Cummins spare parts | P/N: 5267632

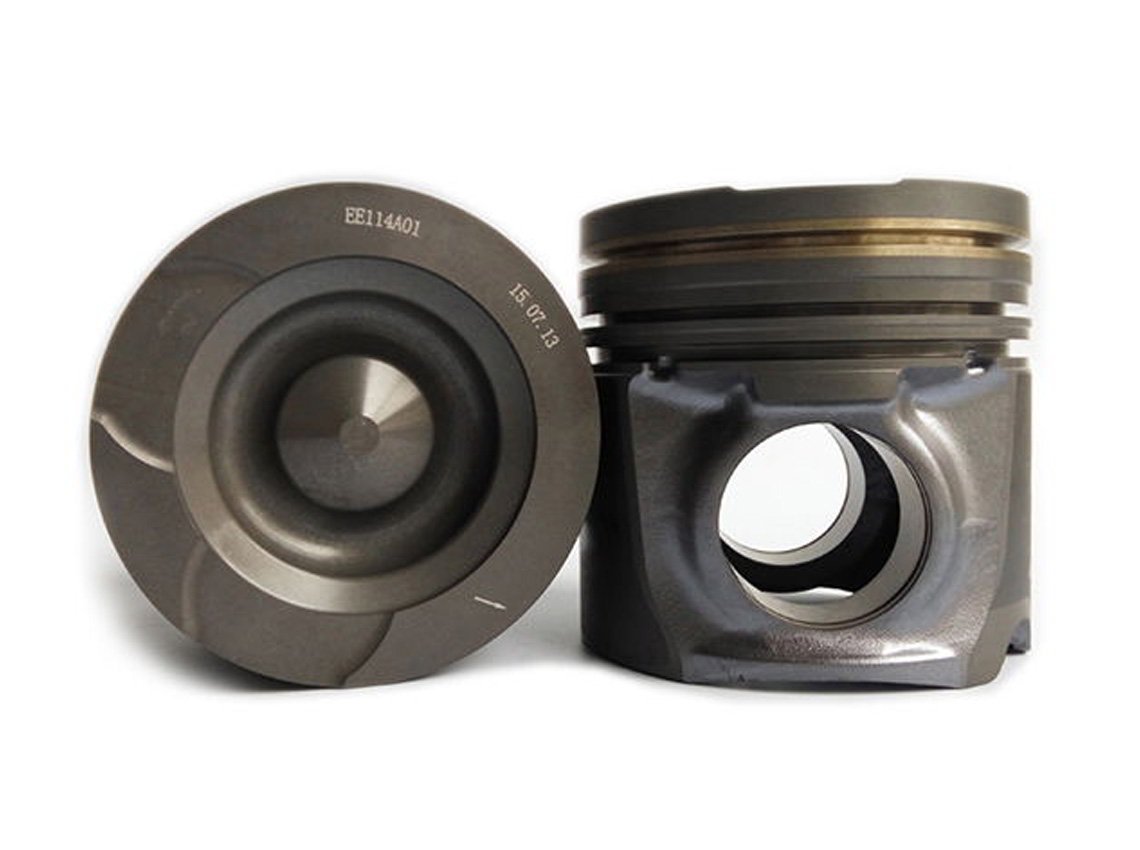

Piston | P/N: 5267632

Cummins diesel parts | P/N: 5291445

Water pump | P/N: 5291445

Cummins engine parts | P/N: 5284903

Thermostat | P/N: 5284903

Cummins parts guarantee of engine durability and reliability

Cummins parts
Cummins parts
Cummins parts

Choose Genuine. Because There is a Difference.

Genuine Cummins Parts

Choose Genuine. Because There is a Difference.

Using Genuine Cummins parts makes all the difference. Genuine Cummins new and ReCon® parts are guaranteed to fit right and work right.

Extend the life of your equipment by choosing the best parts for your Cummins engine or generator.

Backed by Cummins with a 100% comprehensive warranty on parts, labour and progressive damage nothing works better or lasts longer.

The difference between Genuine Cummins parts and non-genuine parts isn’t always the easiest to detect.

Precision design, state-of-the-art manufacturing and rigorous testing ensures that Genuine Cummins parts perform at Cummins factory-specified levels of durability, reliability and performance.

Don't see the parts you are looking for? Click Here and we can get it for you or send you a quote from the thousands of commonly used Cummins parts.
