Engine model KTA38-G1
Engine type 4 Cycle , 60° Vee , 12 Cylind
Displacement 38.0 L
Rated Power 560kW (700 Kva) @ 1500 rpm
Compression Ratio 14.5:1
Frequency 50Hz / 60Hz
Alternator Stamford / Marathon
Cummins logo
Cummins logo
  • Product advantages
  • Cummins parts

Cummins G-Drive KTA38-G1 technique specification

Bore*stroke 159 mm * 159 mm / 6.25 in * 6.25 in
Aspiration Turbocharged , Aftercooled
Fuel system Cummins direct Injection PT Fuel Injection Pump
Compression Ratio 14.5:1
Governor Type Electronic Governor
Firing Order 1R-6L-5R-2L-3R-4L-6R-1L2R-5L-4R-3L
Exhaust Gas Flow (cfm / litre/s) 3426 / 1617
Steady State Stability Band at Any Constant Load 493 lbm.ft2 / 20.78 kg.m2 (with FW 6011 Flywheel)
Intake Air Flow (cfm / liter/s) 1850 / 873
Exhaust Gas Flow (cfm / liter/s) 5255 / 2480
Manufacturer CCEC Cummins

Cummins G-Drive KTA38-G1 Trade information

Warranty time 1year or 1500h
Engine Size(L*W*H): 2200mm*1200mm*1800mm
Packing size 2500mm*1500mm*2100mm
Weight net 4366 Kg
Weight gross 4600 Kg
Delivary port Shanghai
Marine delivary boat Masket/zhongyuan
Delivary time 15 working days
Trade termes FOB/CIF/CNF
Payement termes T/T,L/C
Mode of transport Sea transportation or air transportation

Original/genuine parts

Cummins parts | P/N: 3017670

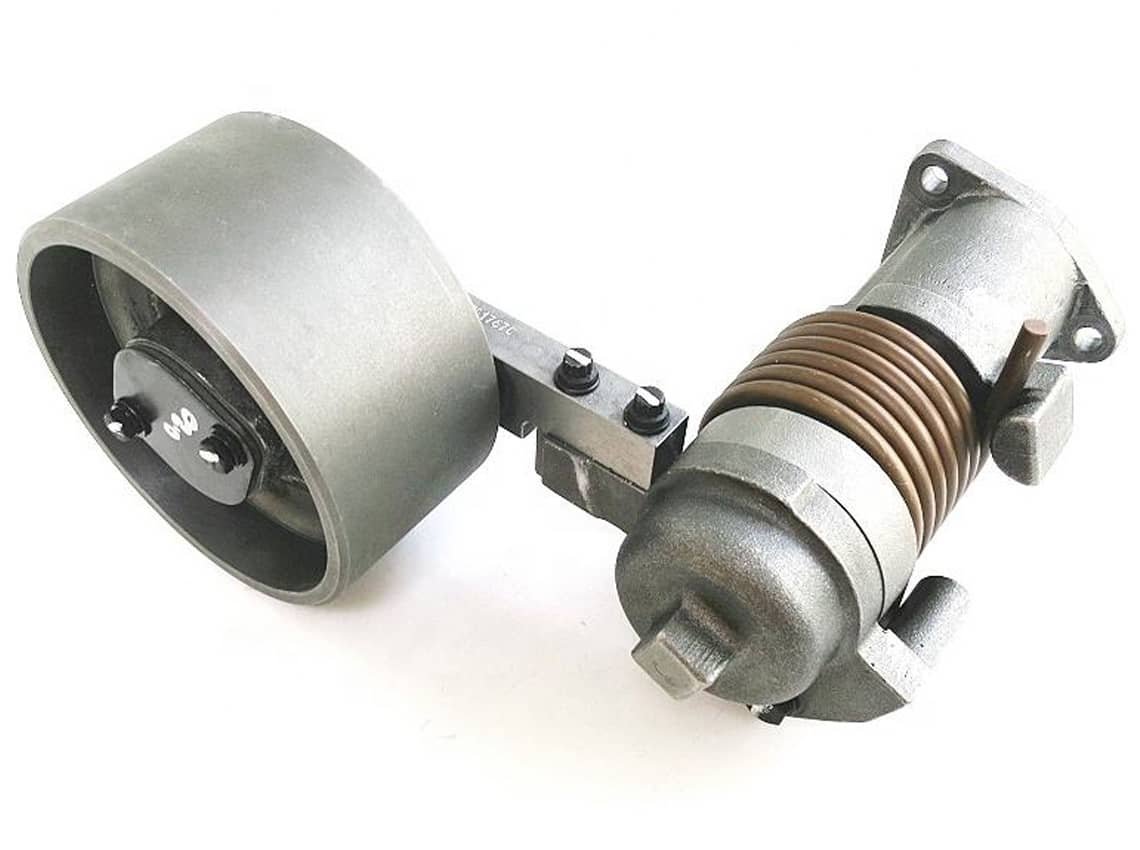

Fan idler | P/N: 3017670

Original Cummins Parts| P/N: 3803283

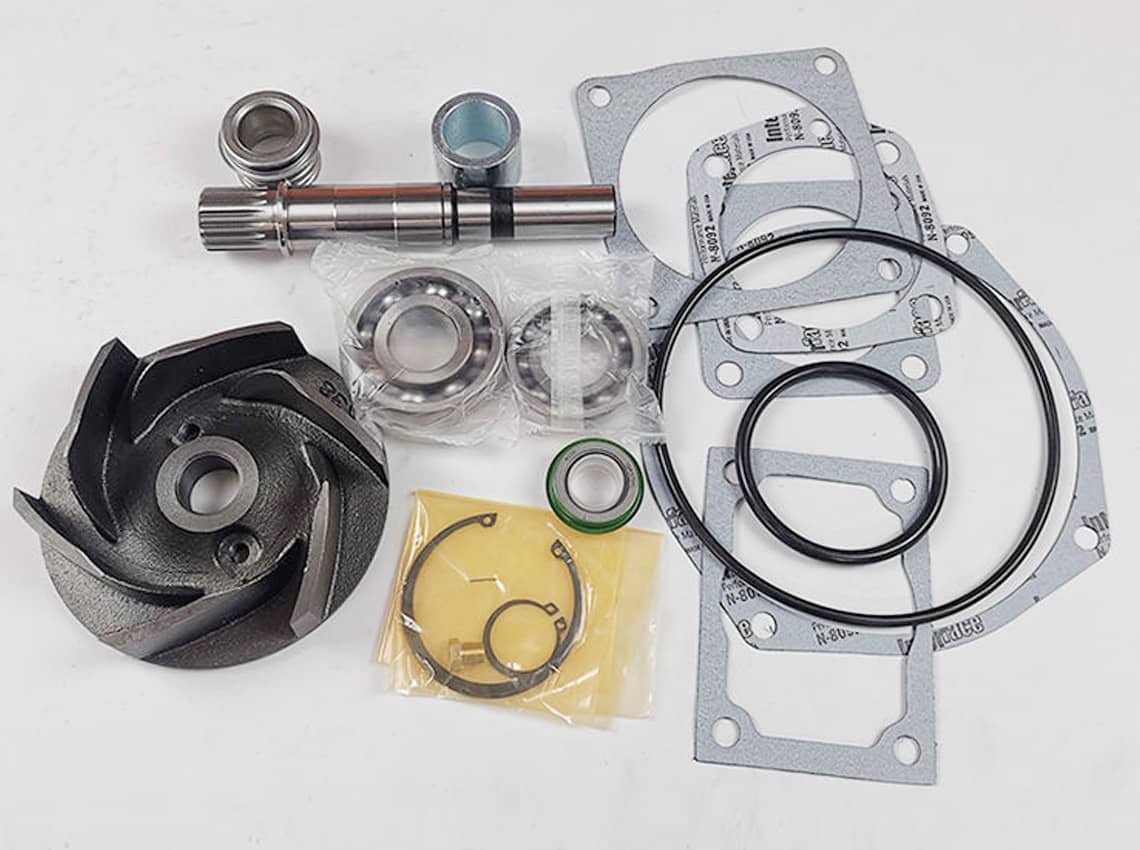

Water Pump Kits | P/N: 3803283

Genuine Cummins Parts | 3011884

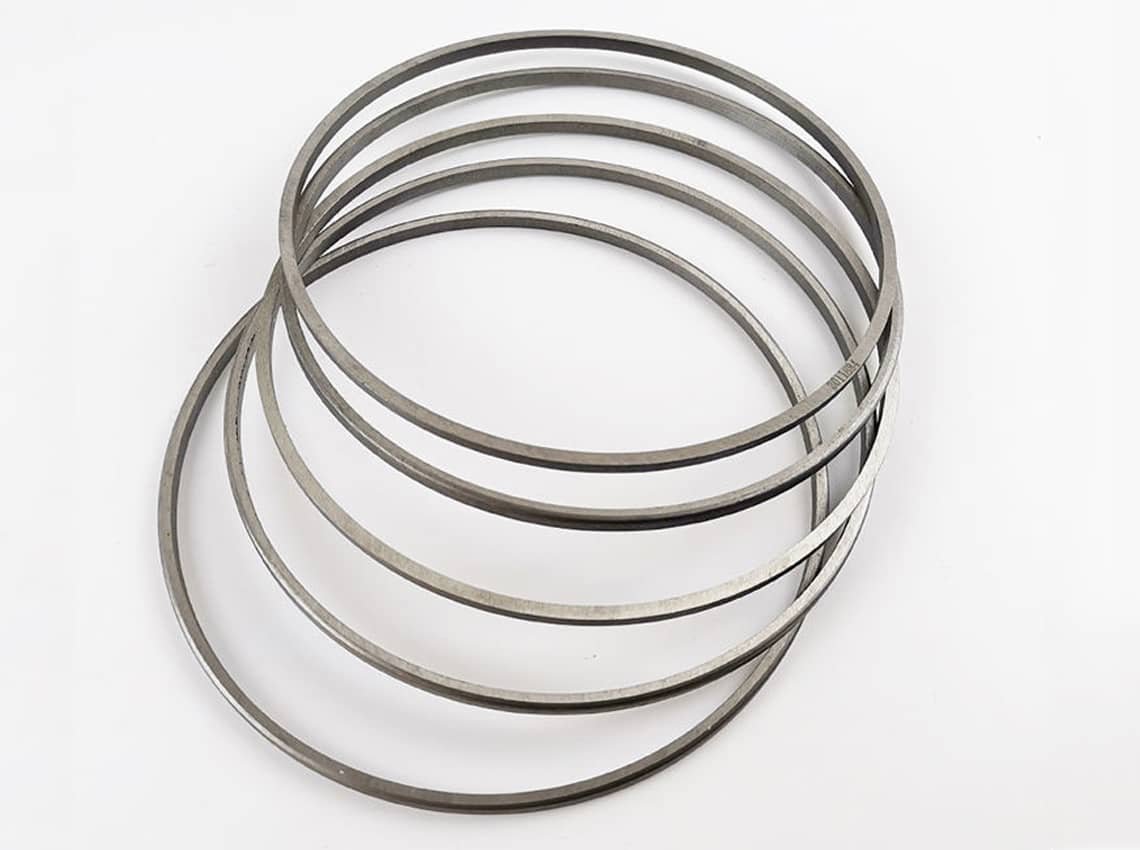

cylinder liner gasket | P/N: 3011884

Cummins diesel parts | P/N: 3042428

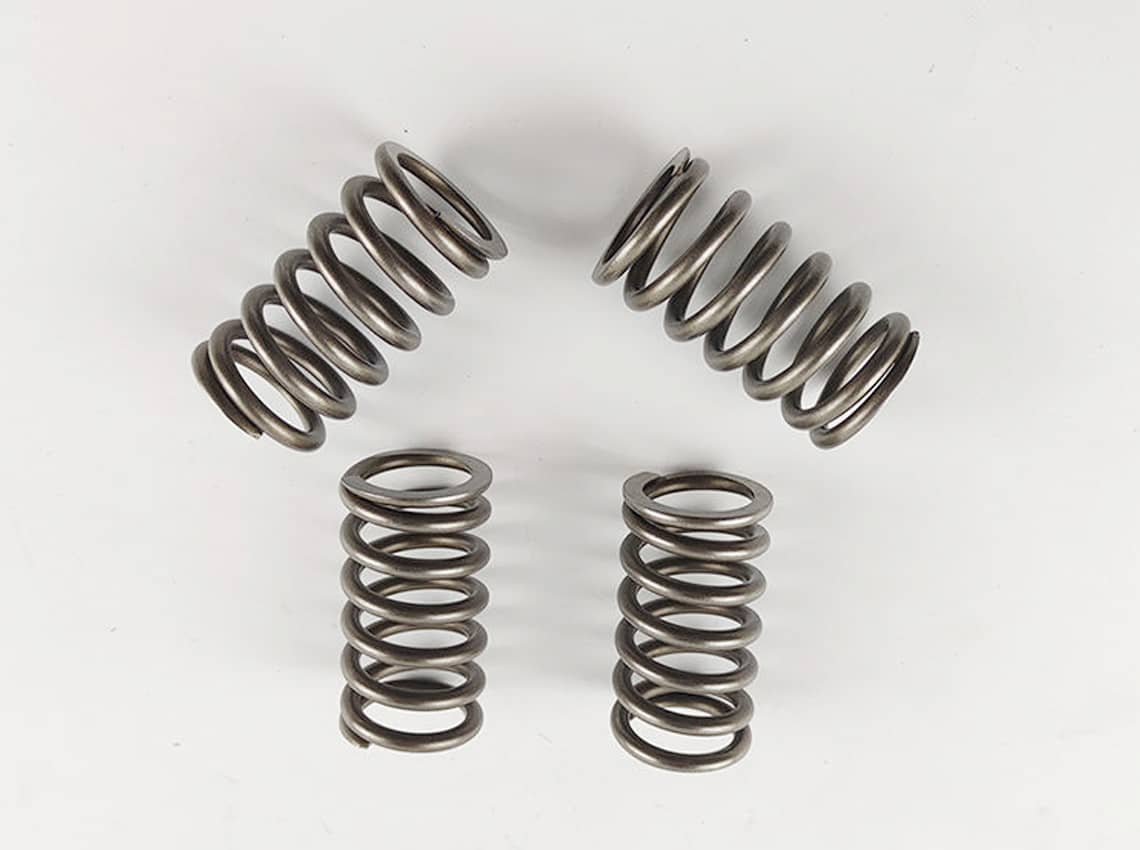

Injector Spring | P/N: 3042428

Cummins parts guarantee of engine durability and reliability

Cummins parts
Cummins parts
Cummins parts

Professional configuration, best quality

CCEC Cummins production plant

Professional configuration, best quality

Advanced design and sophisticated manufacturing, adapt to a variety of harsh working conditions, high strength, strong ability to work under heavy loads.

The cylinder block and cylinder head adopt an integrated design to prevent the occurrence of engine water and oil leakage. The parts are about 40% less than other similar engines, and the failure rate is greatly reduced.

Using forged steel camshaft and crankshaft, high-strength cylinder block design, multiple parts cast on the cylinder block, high rigidity, high pressure resistance, good reliability, and longer service life.

The cylinder bore adopts a platform mesh honing design, which is perfect The geometric structure effectively prevents oil leakage, and adopts advanced technologies such as new piston ring components and gasket crimping molding to reduce oil loss.

Adopt Holset supercharger with integral wastegate valve, low-speed response and strong power, three-stage fuel filter to ensure a balanced level of particulate dispersion, protect the main components of the fuel system, and maximize the life of the engine.

Electronic control system can intelligently switch the working mode according to the environment and operating conditions, and has the functions of self-diagnosis, alarm and remote monitoring.

Don't see the parts you are looking for? Click Here and we can get it for you or send you a quote from the thousands of commonly used Cummins parts.
