Engine model QSK19-G11
Engine type 4 stroke, 6 cylinders in line
Displacement 18.9 L
Rated Power 606kW (757.5 Kva) @ 1500 rpm
Compression Ratio 15.0:1
Frequency 50Hz / 60Hz
Alternator Stamford / Marathon
Cummins logo
Cummins logo
  • Product advantages
  • Cummins parts

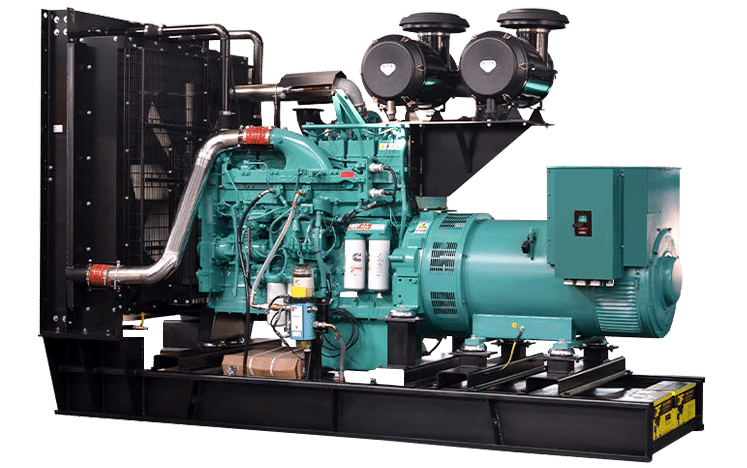

Cummins G-Drive QSK19-G11 technique specification

Bore*stroke 159 mm * 159 mm / 6.25 in * 6.25 in
Aspiration Turbocharged & Air – Air Aftercooled
Fuel system Cummins direct Injection PT Fuel Injection Pump
Cooling method Fluid Cooling
Governor Type Electronic Control
Exhaust Gas Temperature (°F / °C) 965 / 519
Exhaust Gas Flow (cfm / litre/s) 4887 / 2307
Steady State Stability Band at Any Constant Load 194.6 lbm.ft2 / 8.2 kg.m2 (with FW 4016 Flywheel)
Intake Air Flow (cfm / liter/s) 1939 / 916
Center of Gravity from Rear Face of Block 24.0 in / 609.6 mm
Manufacturer CCEC Cummins

Cummins G-Drive QSK19-G11 Trade information

Warranty time 1year or 1500h
Engine Size(L*W*H): 1424mm*796mm*1583mm
Packing size 1695mm*985mm*1723mm
Weight net 1900 Kg
Weight gross 2100 Kg
Delivary port Shanghai
Marine delivary boat Masket/zhongyuan
Delivary time 15 working days
Trade termes FOB/CIF/CNF
Payement termes T/T,L/C
Mode of transport Sea transportation or air transportation

Original/genuine parts

Cummins parts | P/N: 3545647

Turbocharger Repair Kit | P/N: 3545647

Original Cummins Parts| P/N: 4917433

Cylinder Block | P/N: 4917433

Genuine Cummins Parts | 3800192

Gasket Kit | P/N: 3800192

Cummins diesel parts | P/N: 3011324

Cover Heat Exchanger | P/N: 3011324

Cummins parts guarantee of engine durability and reliability

Cummins parts
Cummins parts
Cummins parts

Professional configuration, best quality

CCEC Cummins production plant

Professional configuration, best quality

Advanced design and sophisticated manufacturing, adapt to a variety of harsh working conditions, high strength, strong ability to work under heavy loads.

The cylinder block and cylinder head adopt an integrated design to prevent the occurrence of engine water and oil leakage. The parts are about 40% less than other similar engines, and the failure rate is greatly reduced.

Using forged steel camshaft and crankshaft, high-strength cylinder block design, multiple parts cast on the cylinder block, high rigidity, high pressure resistance, good reliability, and longer service life.

The cylinder bore adopts a platform mesh honing design, which is perfect The geometric structure effectively prevents oil leakage, and adopts advanced technologies such as new piston ring components and gasket crimping molding to reduce oil loss.

Adopt Holset supercharger with integral wastegate valve, low-speed response and strong power, three-stage fuel filter to ensure a balanced level of particulate dispersion, protect the main components of the fuel system, and maximize the life of the engine.

Electronic control system can intelligently switch the working mode according to the environment and operating conditions, and has the functions of self-diagnosis, alarm and remote monitoring.
