Engine model QSK50-G7
Engine type 4 Cycle , 60° Vee , 16 Cylind
Displacement 3067 in3 / 50.3 L
Rated Power 1421kW (1790.5 Kva) @ 1500 rpm
Compression Ratio 15.0:1
Frequency 50Hz
Alternator Stamford / Marathon
Cummins logo
Cummins logo
  • Product advantages
  • Cummins parts

Cummins G-Drive QSK50-G7 technique specification

Bore*stroke 159 mm * 159 mm / 6.25 in * 6.25 in
Aspiration Turbocharged & Low Temp. Aftercooled
Fuel system Cummins direct Injection PT Fuel Injection Pump
Moment of Inertia of Rotating Components 112 lbm.ft2 / 12.7 kg.m2 (with FW 6066 Flywheel)
Center of Gravity from Rear Face of Block 47.48 in. / 1,206 mm
Center of Gravity Above Crankshaft Centerline 10.98 in. / 279 mm
Piston Speed (ft/min / m s) 1562 / 7.9
Maximum Bending Moment at Rear Face of Block 4,499 lb·ft / 6,100 N.m
Intake Air Flow – cfm (L/s) 3944 / 1861
Exhaust Gas Flow – cfm / L/s 9671 / 4564
Manufacturer CCEC Cummins

Cummins G-Drive QSK50-G7 Trade information

Warranty time 1year or 1500h
Engine Size(L*W*H): 2594mm*1307mm*1646mm
Packing size 2794mm*1507mm*1846mm
Weight net 5410 Kg
Weight gross 5800 Kg
Delivary port Shanghai
Marine delivary boat Masket/zhongyuan
Delivary time 15 working days
Trade termes FOB/CIF/CNF
Payement termes T/T,L/C
Mode of transport Sea transportation or air transportation

Original/genuine parts

Cummins engine parts | P/N: 3630172

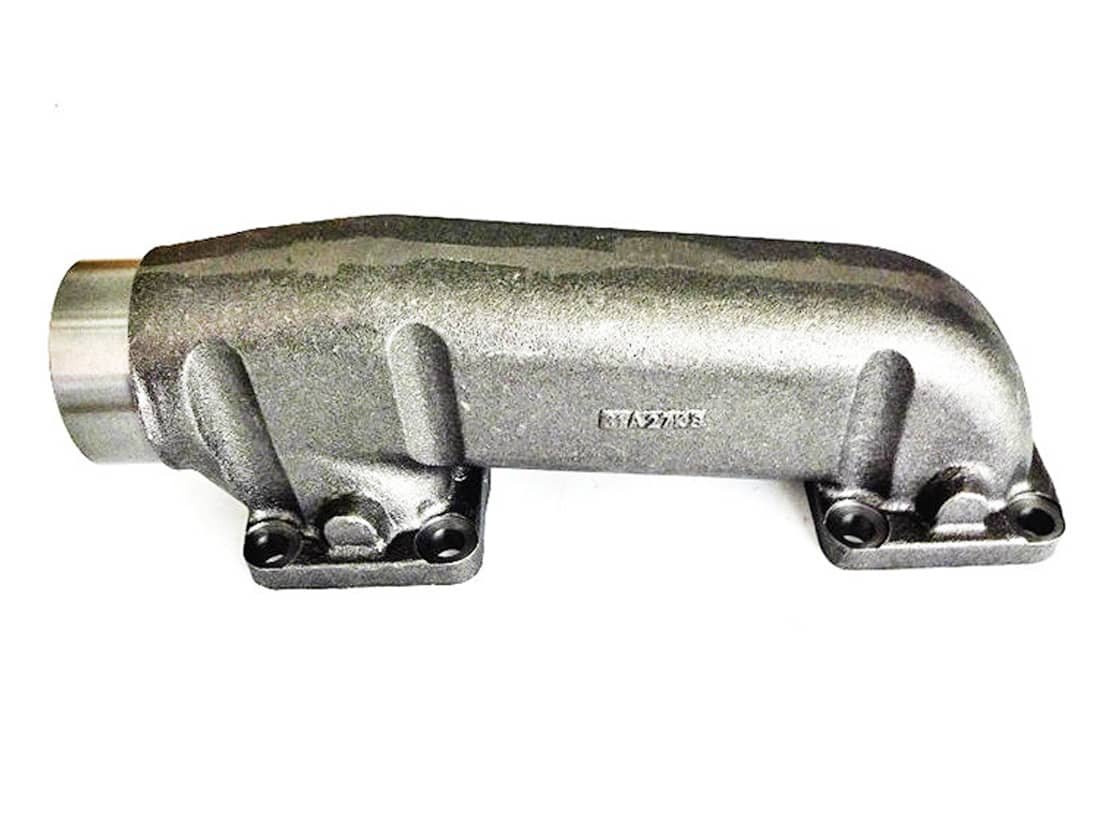

Manifold Exhaust | P/N: 3630172

Original Cummins Parts| P/N: 3631163

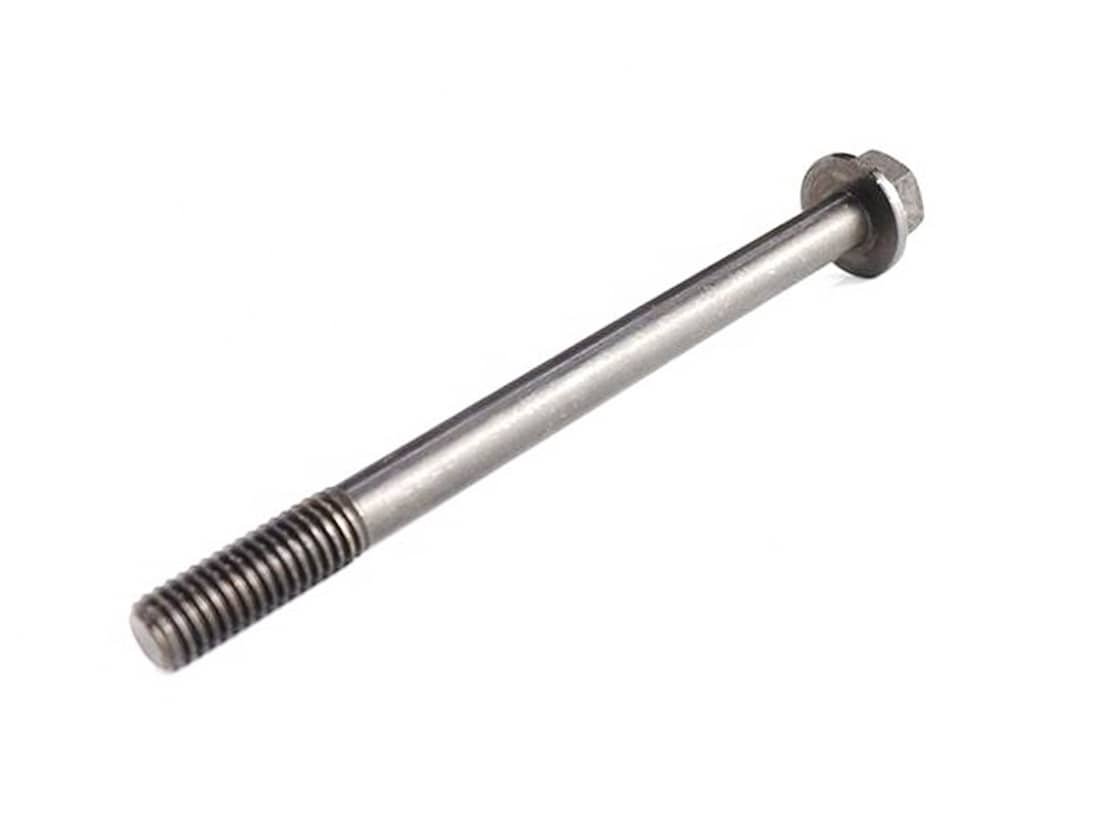

Screw | P/N: 3631163

Genuine Cummins Parts | 206587R

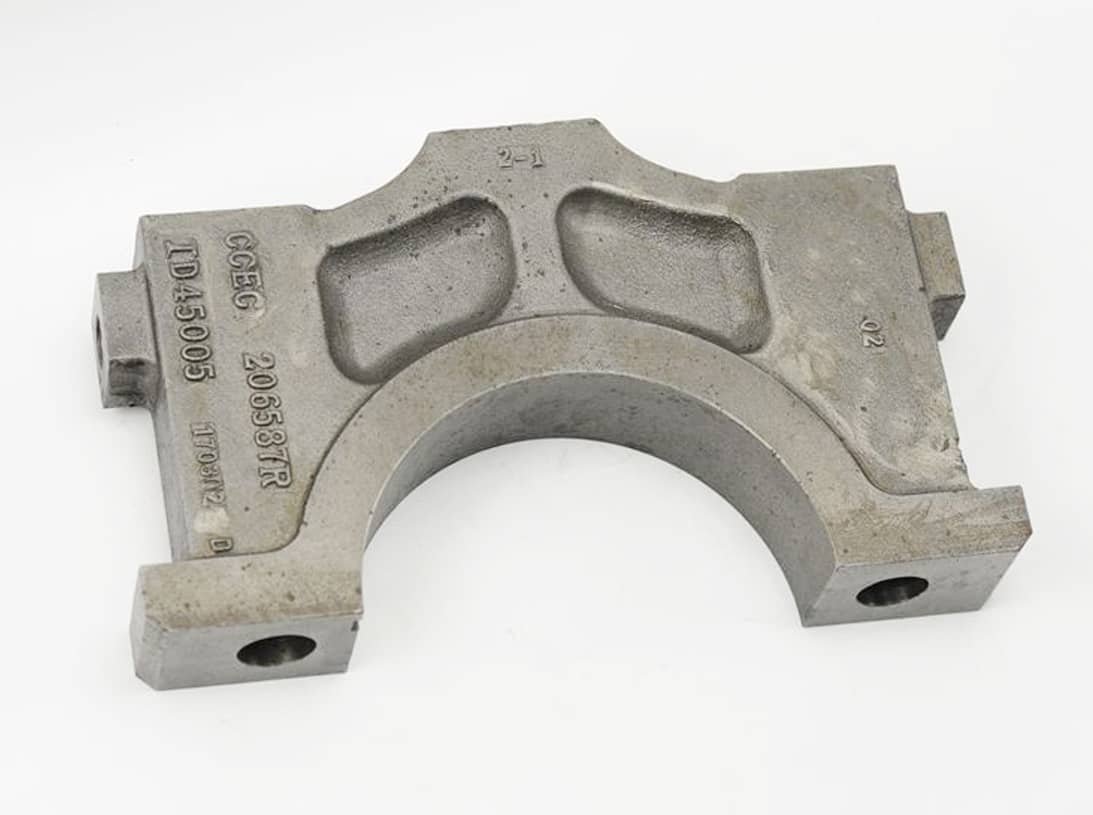

Main bearing Cap | P/N: 206587R

Cummins diesel parts | P/N:3080521

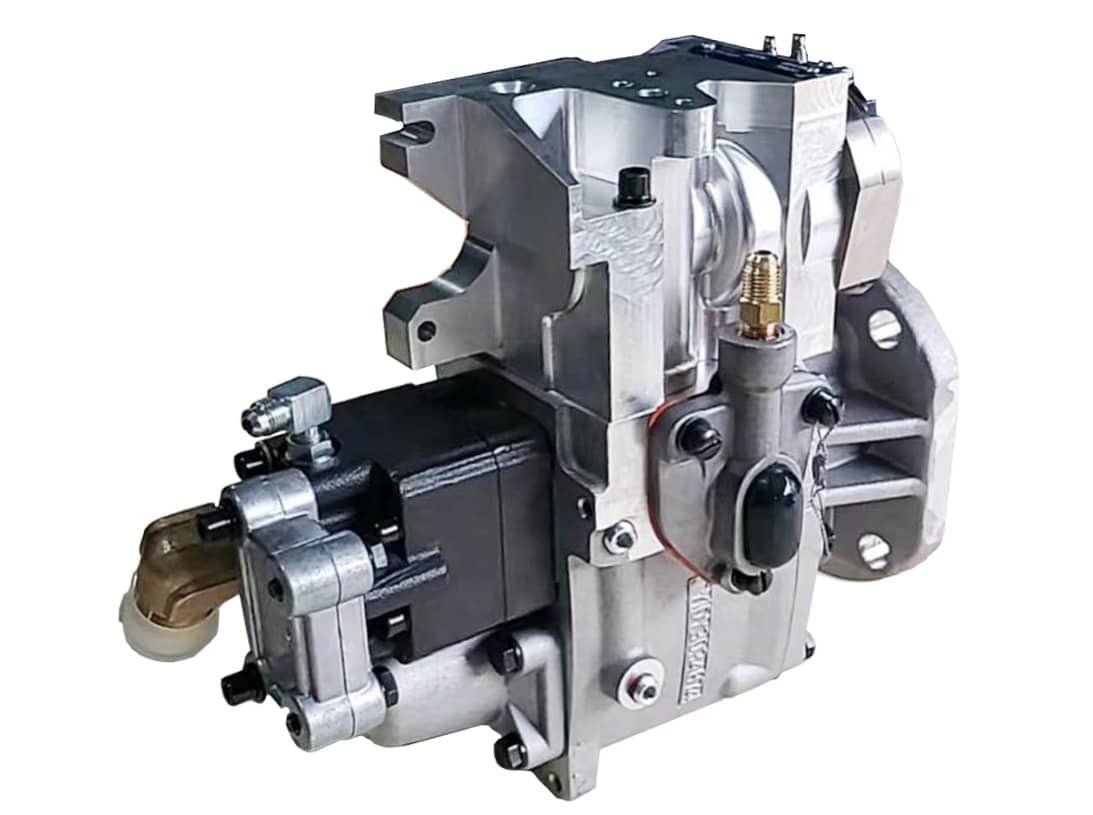

Fuel Pump | P/N: 3080521

Cummins parts guarantee of engine durability and reliability

Cummins parts
Cummins parts
Cummins parts

Professional configuration, best quality

CCEC Cummins production plant

Professional configuration, best quality

Advanced design and sophisticated manufacturing, adapt to a variety of harsh working conditions, high strength, strong ability to work under heavy loads.

The cylinder block and cylinder head adopt an integrated design to prevent the occurrence of engine water and oil leakage. The parts are about 40% less than other similar engines, and the failure rate is greatly reduced.

Using forged steel camshaft and crankshaft, high-strength cylinder block design, multiple parts cast on the cylinder block, high rigidity, high pressure resistance, good reliability, and longer service life.

The cylinder bore adopts a platform mesh honing design, which is perfect The geometric structure effectively prevents oil leakage, and adopts advanced technologies such as new piston ring components and gasket crimping molding to reduce oil loss.

Adopt Holset supercharger with integral wastegate valve, low-speed response and strong power, three-stage fuel filter to ensure a balanced level of particulate dispersion, protect the main components of the fuel system, and maximize the life of the engine.

Electronic control system can intelligently switch the working mode according to the environment and operating conditions, and has the functions of self-diagnosis, alarm and remote monitoring.
