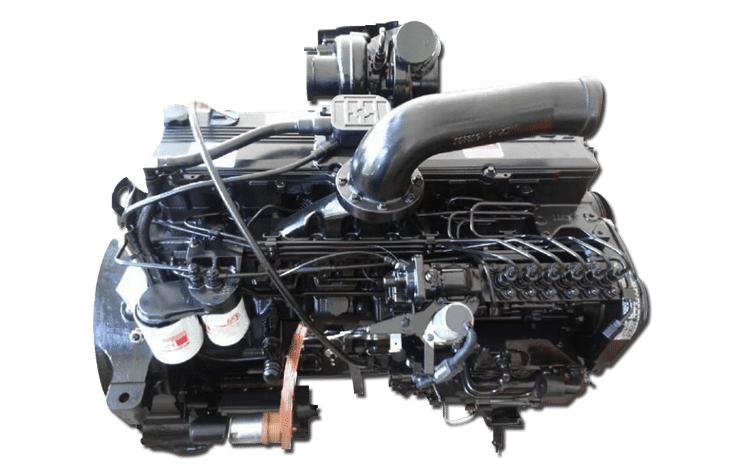

Engine model L340-30
Engine type 6 cylinders in line
Displacement 8.9 L
Rated Power 250KW(340 HP)@2200rpm
Peak Torque 1350N.m @ 1400 rpm
Emission Standard Euro Ⅲ
Use for Construction vehicles
Cummins logo
Cummins logo
  • Product advantages
  • Cummins parts

Cummins engine L340-30 technique specification

Bore*stroke 114*145mm
Intake method Turbochager & Intercooled
Fuel systeme Direct Injection Pump
Cooling method Fluid Cooling 11.1L
Governor Type Mechanical Control
Compression Ratio 16.6 : 1
Fuel Consumption 225 g/kW.h
Starting System Electrical Starting Motor 24V/750A
Lowest Starting Temp .(without auxiliary system) -10℃/-25℃

Cummins engine L340-30 trade parameters

Warranty time 1year or 1500h
Engine Size(L*W*H): 1149mm*799mm*1022mm
Packing size 1300mm*850mm*1100mm
Weight net 680 Kg
Weight gross 700 Kg
Delivary port Shanghai
Marine delivary boat Masket/zhongyuan
Delivary time 15 working days
Trade termes FOB/CIF/CNF
Payement termes T/T,L/C
Mode of transport Sea transportation or air transportation

Original/genuine parts

Genuine Cummins Parts | C3968563

Oli seal | P/N: C3968563

Cummins parts | P/N: AF26186

Air filter | P/N: AF26186

Cummins parts | P/N: 5318476

Compression ring | P/N: C3904531

Cummins parts | P/N: 5318476

Cylinder liner | P/N: 5318476

Cummins parts guarantee of engine durability and reliability

Cummins parts
Cummins parts
Cummins parts

Choose Genuine. Because There is a Difference.

Genuine Cummins Parts

Choose Genuine. Because There is a Difference.

Using Genuine Cummins parts makes all the difference. Genuine Cummins new and ReCon® parts are guaranteed to fit right and work right.

Extend the life of your equipment by choosing the best parts for your Cummins engine or generator.

Backed by Cummins with a 100% comprehensive warranty on parts, labour and progressive damage nothing works better or lasts longer.

The difference between Genuine Cummins parts and non-genuine parts isn’t always the easiest to detect.

Precision design, state-of-the-art manufacturing and rigorous testing ensures that Genuine Cummins parts perform at Cummins factory-specified levels of durability, reliability and performance.

Don't see the parts you are looking for? Click Here and we can get it for you or send you a quote from the thousands of commonly used Cummins parts.
