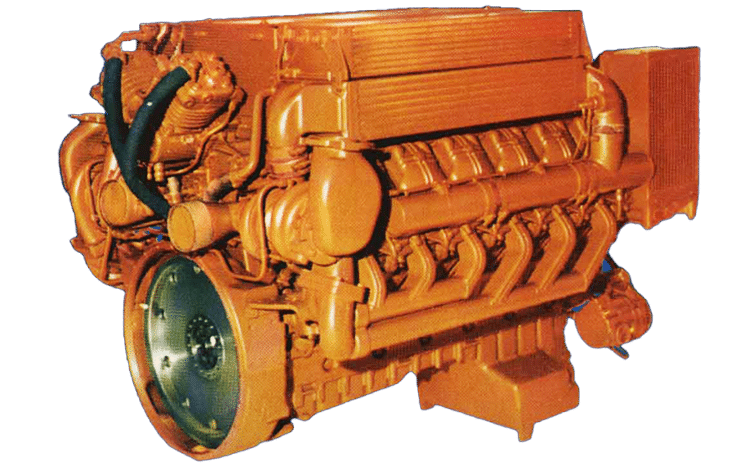

Engine model BF 12 L 413 FC
Engine type 4 stroke, 12 cylinders Vee
Displacement 1168 in3 / 19.144 L
Rated Power 230 - 386 kW @ 2300 RPM
Peak Torque 1695N.m @ 1500~2500 RPM
Cooling type Air Cooled
Emission Standard EU II, US T2
deutz logo
Duutz logo
  • product properties
  • Deutz parts

Deutz engine BF 12 L 413 FC technique specification

Bore*stroke 125 mm * 130 mm / 4.92 in * 5.12 in
Intake method Naturally asirated
idle speed 600 RPM
Compression Ratio 16.5:1
Maximum nominal speed 2300 RPM
power range 230 ~ 386 kW
Specific fuel consumption 210 g/kW.h 0.34 lb/hph
Max. torque 1695 Nm
Lowest Starting Temp .(without auxiliary system) -10℃/-25℃

Deutz engine BF 12 L 413 FC trade parameters

Warranty time 1year or 1500h
Weight net 970 Kg
Weight gross 1030 Kg
Delivary port Shanghai
Marine delivary boat Masket/zhongyuan
Delivary time 15 working days
Trade termes FOB/CIF/FAC
Payement termes T/T,L/C
Certifications Emission certificate
Engine Size (L*W*H) 1412mm*1038mm*937mm
Packing Size (L*W*H) 1560mm*1250mm*1280mm
Mode of transport Sea transportation or air transportation

Original/genuine parts

Genuine Deutz Parts | 02427793

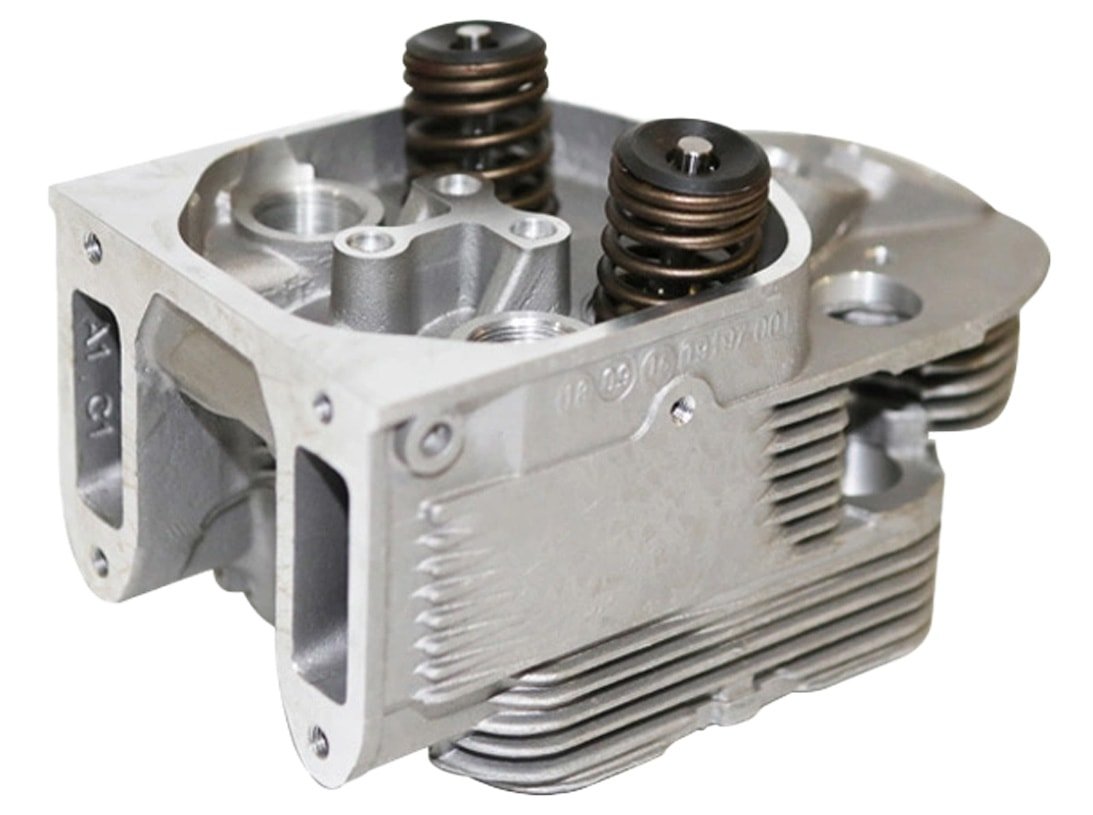

Cylinder Head | P/N: 02427793

Deutz parts | P/N: 0292810

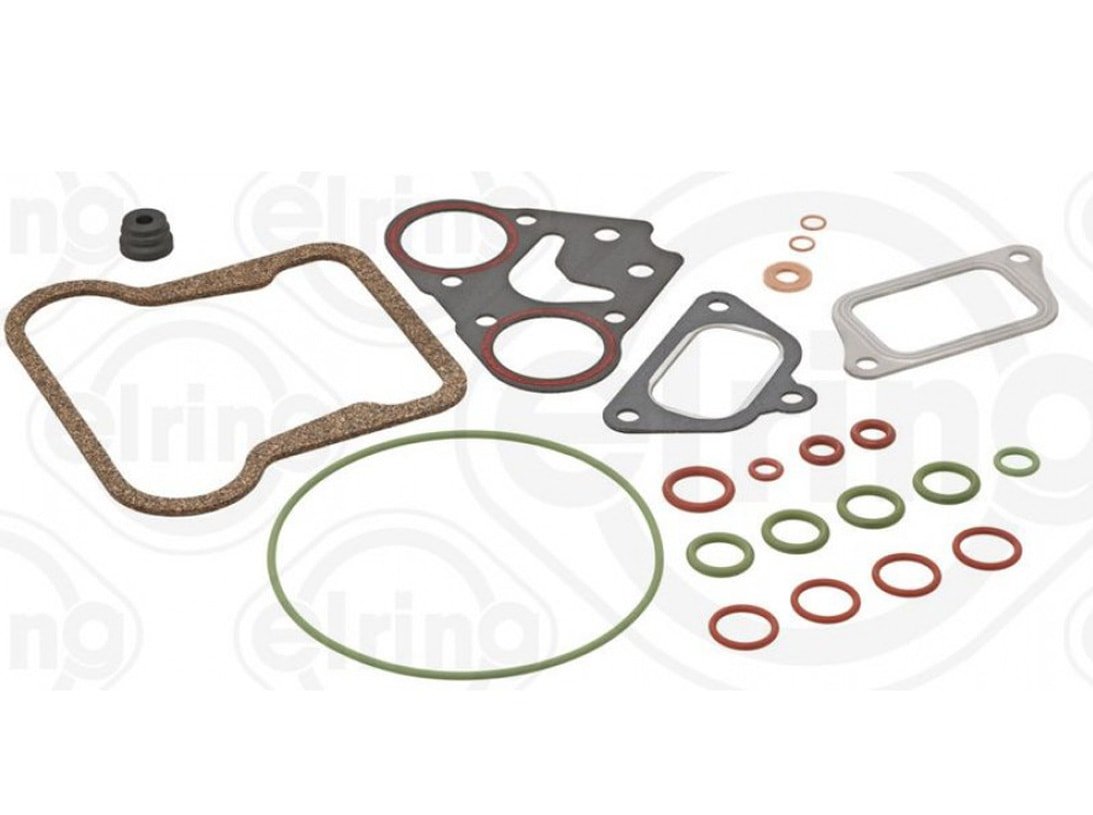

Gasket Kit | P/N: AF26186

Deutz engine parts | P/N: 04182778

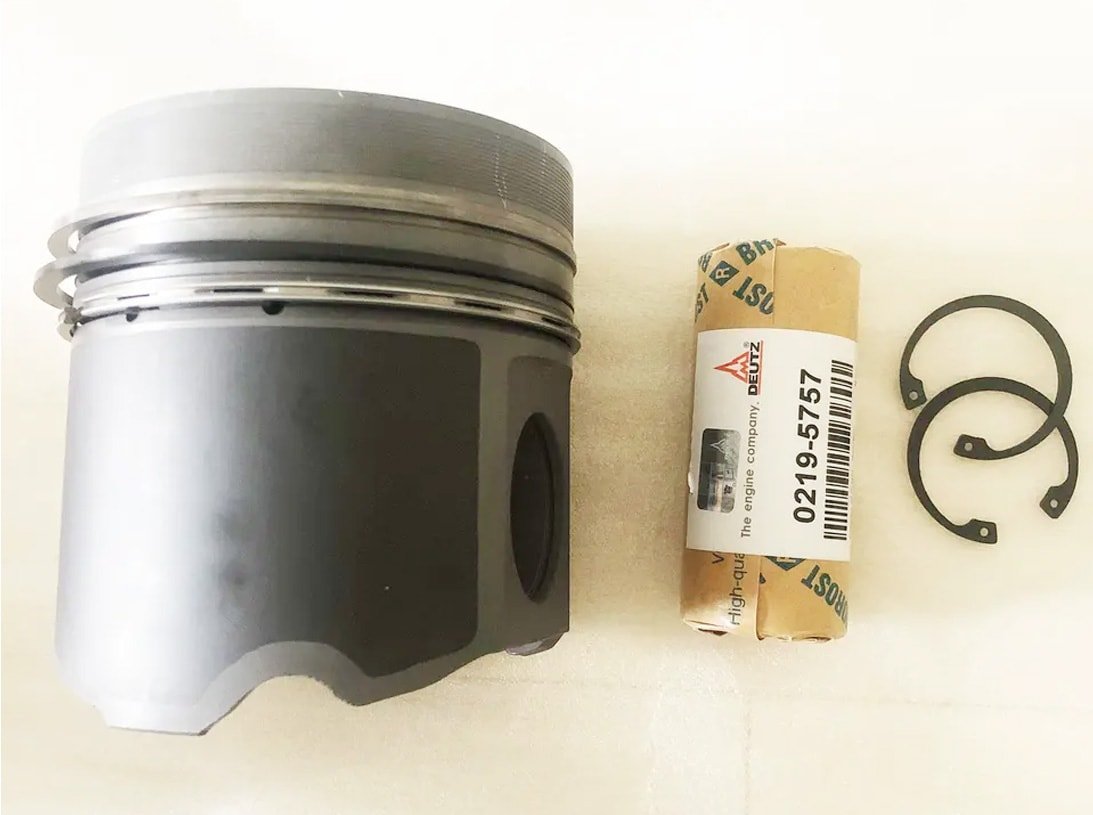

Piston Set | P/N: 04182778

Deutz diesel parts | P/N: 03358824

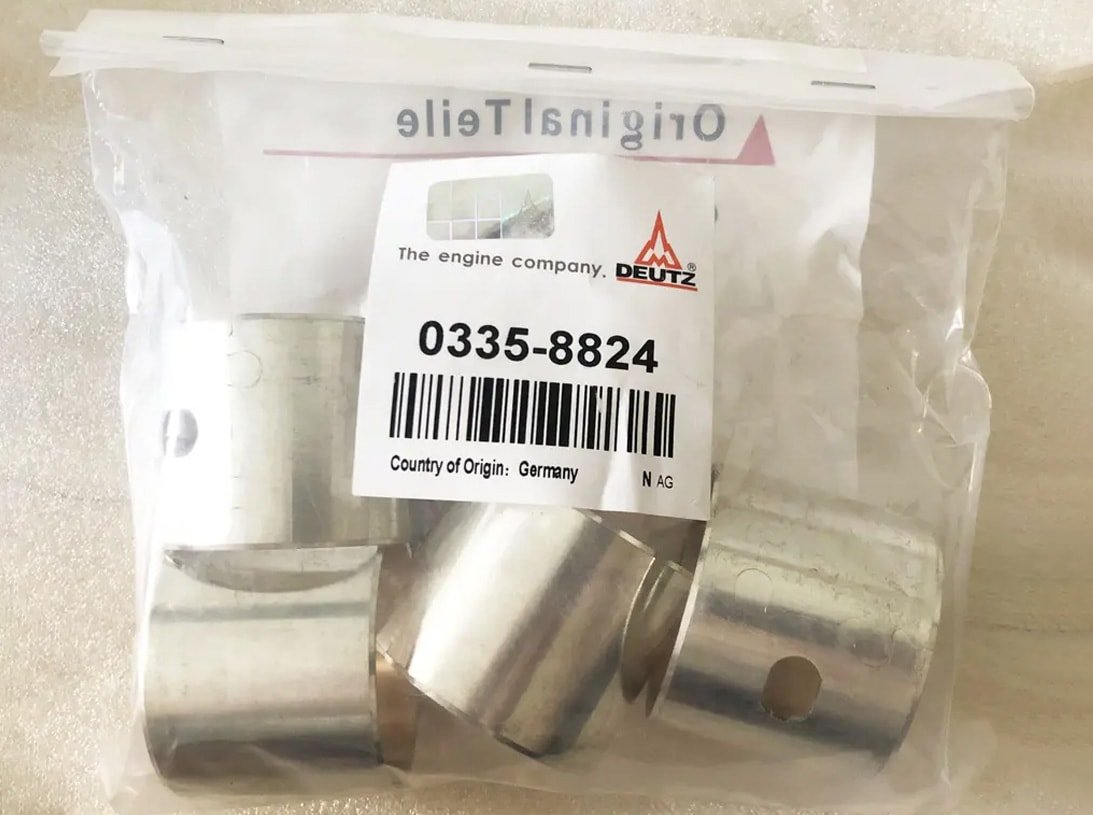

Conrod Bush | P/N: 03358824

Genuine Deutz parts and fluids ensure engine durability and reliability

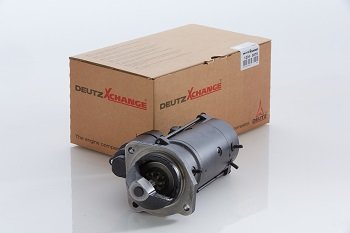

DEUTZ Xchange Parts

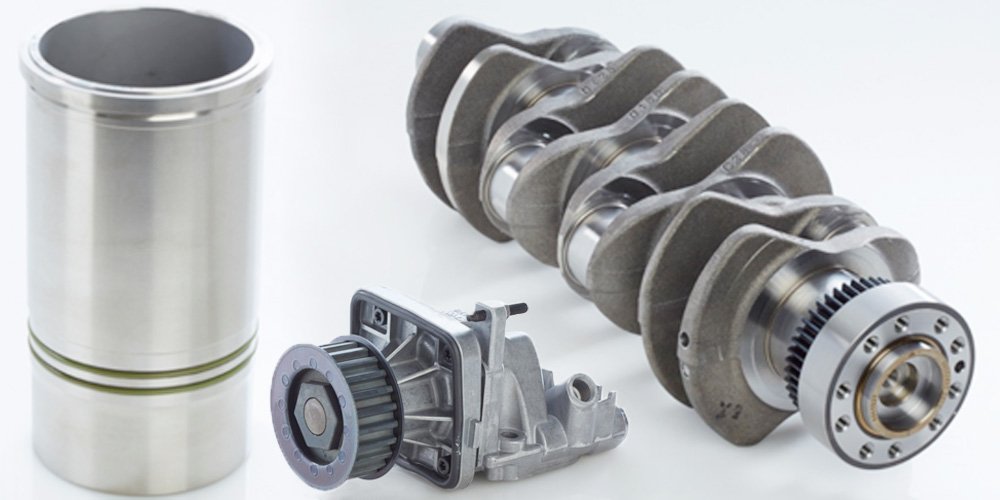

DEUTZ Genuine Parts Kits

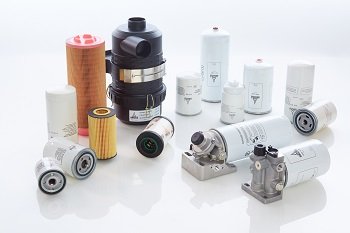

DEUTZ Genuine Maintenance Parts and Operating Fluids

Choose Genuine. Because There is a Difference.

Genuine Deutz Parts

Choose Genuine. Because There is a Difference.

Genuine DEUTZ spare parts are the key to preserve the reliability and durability of your DEUTZ engine.

We offer a complete product portfolio, an unique genuine spare parts competence and the highest quality parts. Genuine DEUTZ parts provide optimum protection against wear and engine damage and they have been designed and tested specifically for DEUTZ engines – to provide you with maximum performance and long engine life.

Thorough and continuous maintenance is the key to preserve the reliability and durability of your DEUTZ engine.

For this reason, you should pay special attention to the maintenance parts and operating fluids being used: The quality of these components is crucial to maintain the desired performance of your engine.

Only highgrade, genuine products with perfect fit offer optimum protection against premature wear and possible engine damage – this is why you should rely on genuine DEUTZ wear parts and operating liquids.

Finally, DEUTZ Xchange parts are quality tested and certified per original equipment specifications (DIN ISO 9001/ DIN EN ISO 14001)

Don't see the parts you are looking for? Click Here and we can get it for you or send you a quote from the thousands of commonly used Deutz parts.
