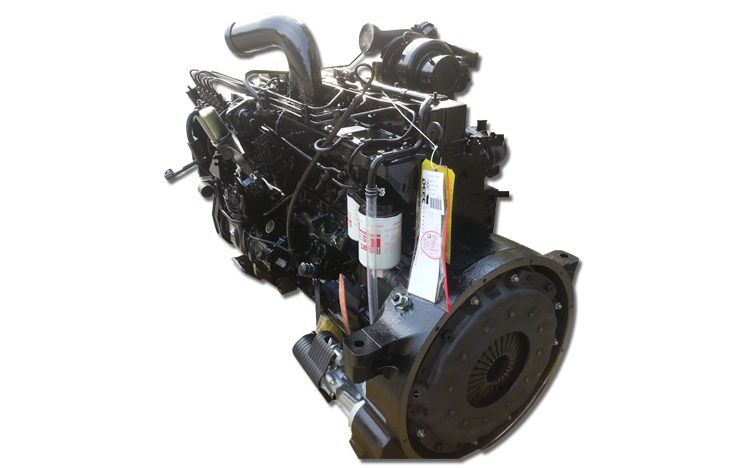

Engine model C245-33
Engine type 4 stroke, 6 cylinder in line
Displacement 8.3 L
Rated Power 180kW (245 HP)@2200rpm
Peak Torque 1024 N.m @1400rpm
Emission Standard Euro Ⅲ
Use for truck
Cummins logo
  • Product advantages
  • Cummins parts

Cummins engine C245-33 technique specification

Bore*stroke 114 * 135mm
Intake method Turbochager & Intercooled
Fuel systeme Bosch PW2000 Pump
Cooling method Fluid Cooling 12.3 L
Governor Type Mechanical Control
Compression Ratio 18 : 1
Fuel Consumption 40.4 L/hr @ Rated Power
Starting System Electrical Starting Motor 24V/510A
Lowest Starting Temp .(with/without auxiliary system) -10℃/-25℃

Cummins diesel engine C245-33 trade parameters

Warranty time 1year or 1500h
Engine Size(L*W*H): 1180mm*920mm*1280mm
Packing size 1200mm*950mm*1300mm
Weight net 776 Kg
Weight gross 800 Kg
Delivary port Shanghai
Marine delivary boat Masket/zhongyuan
Trade termes FOB/CIF/CNF
Delivary time 15 working days
Payement termes T/T,L/C
Mode of transport Sea transportation or air transportation

Original/genuine parts

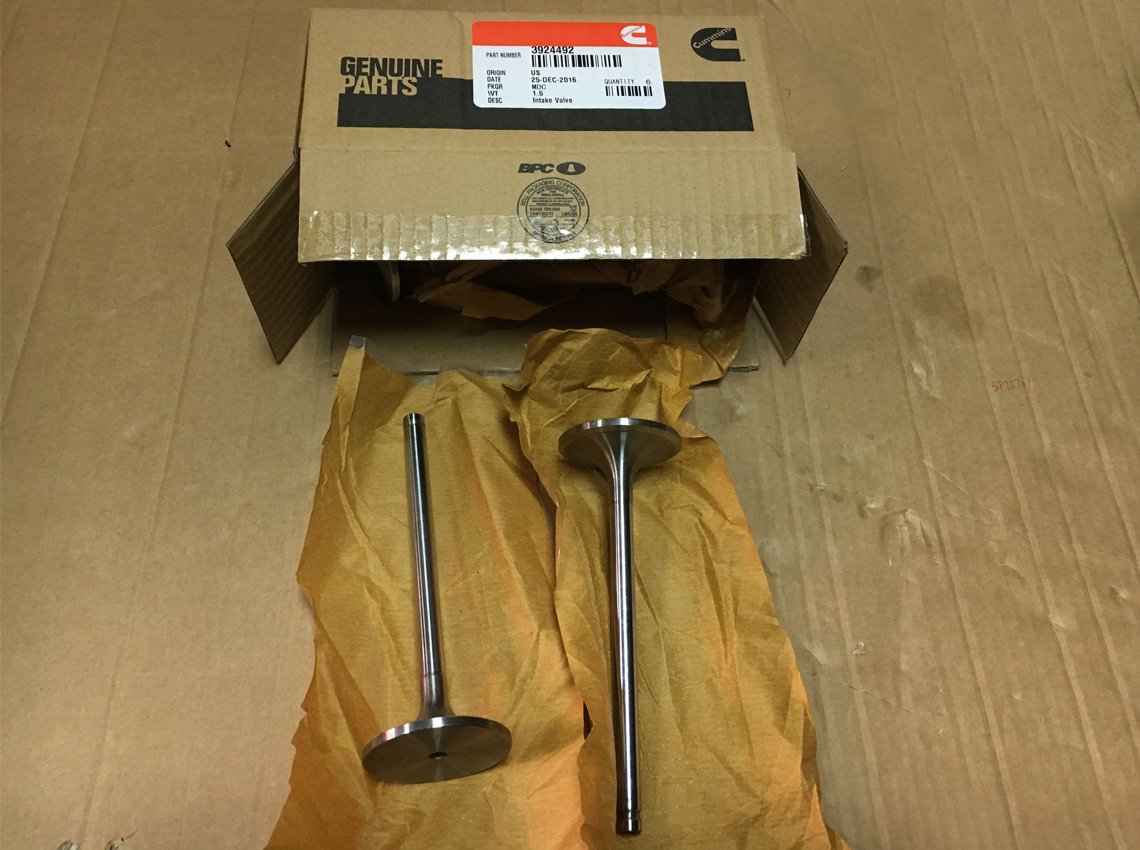

Cummins parts | P/N: 3924492

Intake valve | P/N: 3924492

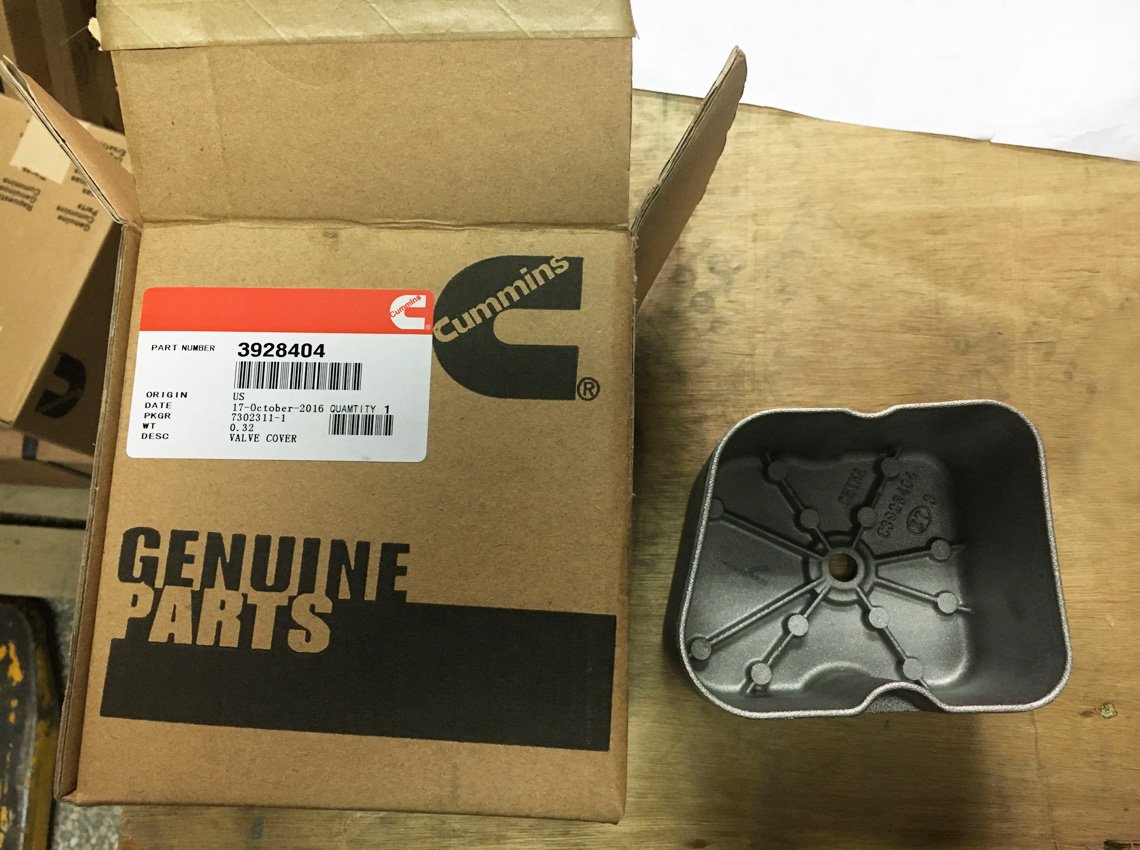

Genuine Cummins Parts | 3928404

Valve cover | P/N: 3928404

Cummins parts | P/N: 4025121

Main bearing | P/N: 4025121

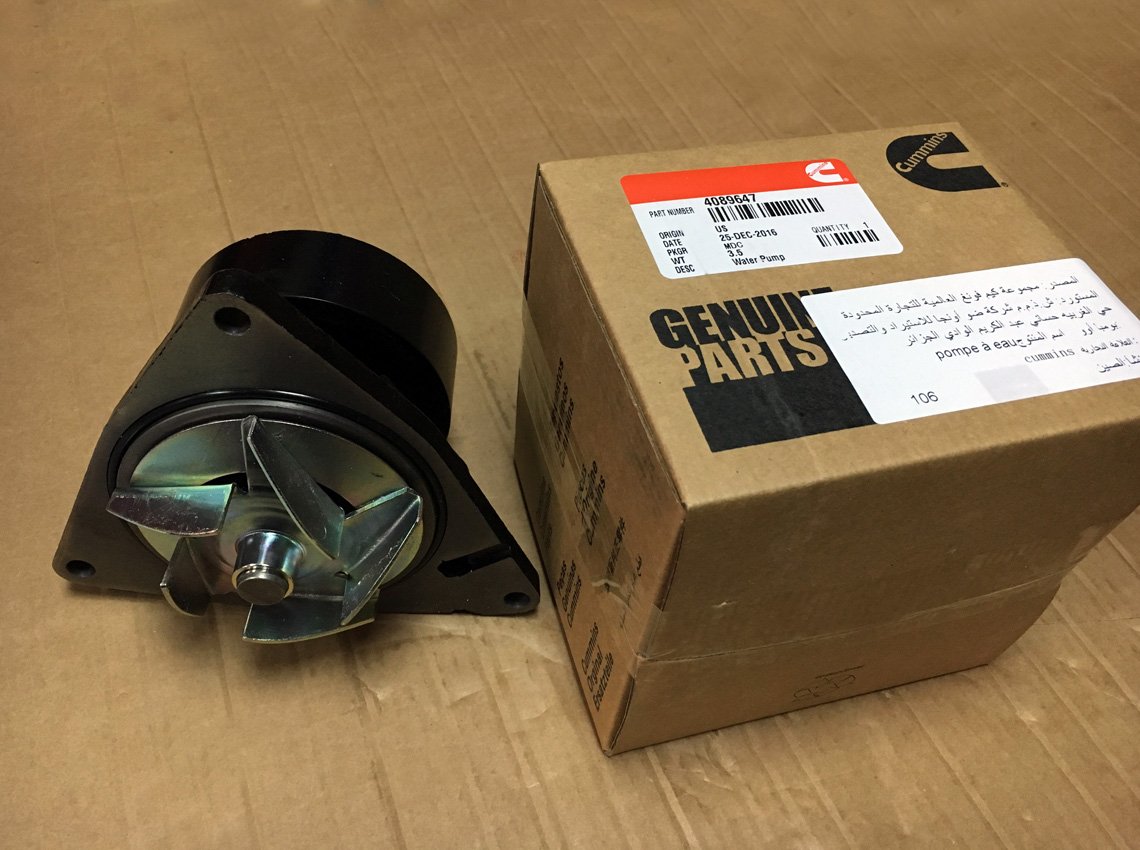

Cummins parts | P/N: 4089647

Water pump | P/N: 4089647

Cummins parts guarantee of engine durability and reliability
