Engine model BF 8 L 513
Engine type 4 stroke, 8 cylinder Vee
Displacement 799 in3 / 12.763 L
Rated Power 235 kW @ 2300 RPM
Peak Torque 1170N.m @ 1500~1700 RPM
Cooling type Air Cooled
Emission Standard EU II, US T2
deutz logo
Duutz logo
  • product properties
  • Deutz parts

Deutz engine BF 8 L 513 technique specification

Bore*stroke 125 mm * 130 mm / 4.92 in * 5.12 in
Intake method Turbocharged
idle speed 600 RPM
Rated Speed 2300 RPM
Rated Power 235 kW
Specific fuel consumption 212 g/kW.h 0.35 lb/hph
Max. torque 1170 Nm @ 850 lb/ft
Car Model Truck
Lowest Starting Temp .(without auxiliary system) -10℃/-25℃

Deutz engine BF 8 L 513 trade parameters

Warranty time 1year or 1500h
Weight net 920 Kg
Weight gross 1080 Kg
Delivary port Shanghai
Marine delivary boat Masket/zhongyuan
Delivary time 15 working days
Trade termes FOB/CIF/FAC
Payement termes T/T,L/C
Engine Size (L*W*H) 1201mm*1148mm*1042mm
Packing Size (L*W*H) 1350mm*1250mm*1200mm
Transport Package wooden box
Mode of transport Sea transportation or air transportation

Original/genuine parts

Genuine Deutz Parts | 04180681

Main bearing | P/N: 04180681

Deutz parts | P/N: 01174420

Oil filter | P/N: 01174420

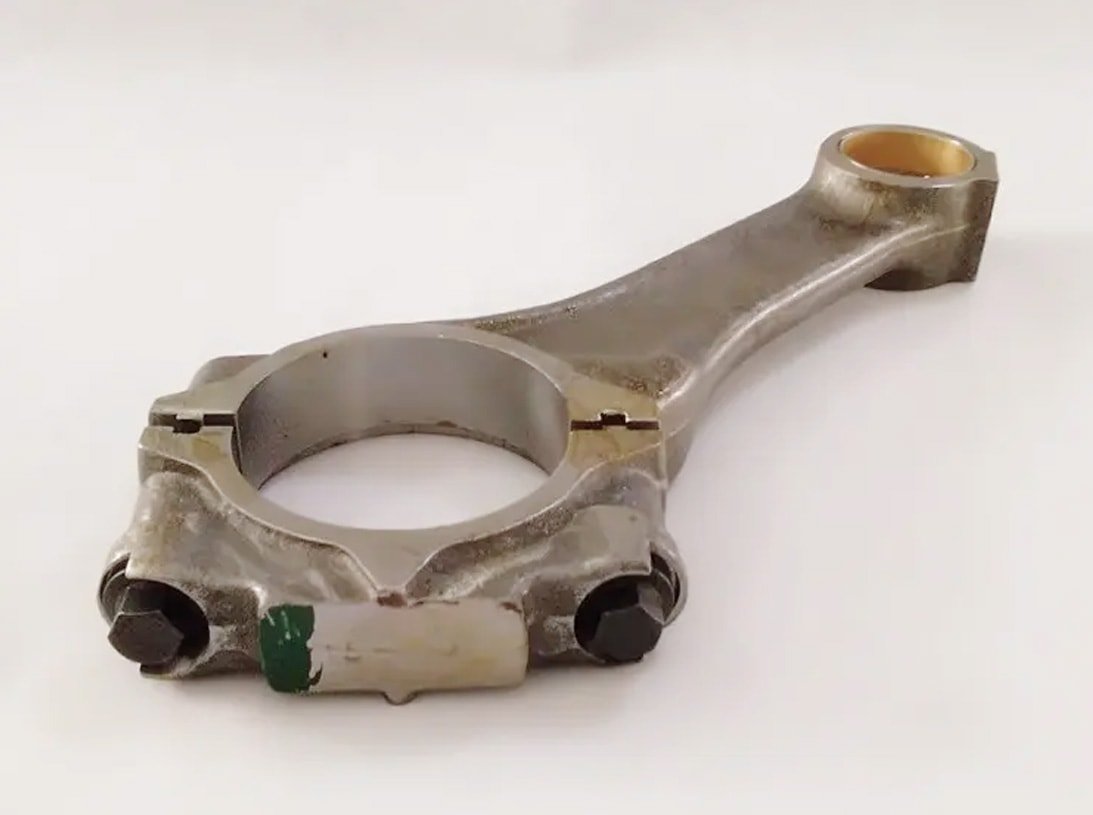

Deutz engine parts | P/N: 04240519

CONNECTING ROD | P/N: 04240519

Deutz diesel parts | P/N: 2928083


Genuine Deutz parts and fluids ensure engine durability and reliability

DEUTZ Xchange Parts
DEUTZ Genuine Parts Kits
DEUTZ Genuine Maintenance Parts and Operating Fluids

Choose Genuine. Because There is a Difference.

Genuine Deutz Parts

Choose Genuine. Because There is a Difference.

Genuine DEUTZ spare parts are the key to preserve the reliability and durability of your DEUTZ engine.

We offer a complete product portfolio, an unique genuine spare parts competence and the highest quality parts. Genuine DEUTZ parts provide optimum protection against wear and engine damage and they have been designed and tested specifically for DEUTZ engines – to provide you with maximum performance and long engine life.

Thorough and continuous maintenance is the key to preserve the reliability and durability of your DEUTZ engine.

For this reason, you should pay special attention to the maintenance parts and operating fluids being used: The quality of these components is crucial to maintain the desired performance of your engine.

Only highgrade, genuine products with perfect fit offer optimum protection against premature wear and possible engine damage – this is why you should rely on genuine DEUTZ wear parts and operating liquids.

Finally, DEUTZ Xchange parts are quality tested and certified per original equipment specifications (DIN ISO 9001/ DIN EN ISO 14001)

Don't see the parts you are looking for? Click Here and we can get it for you or send you a quote from the thousands of commonly used Deutz parts.
