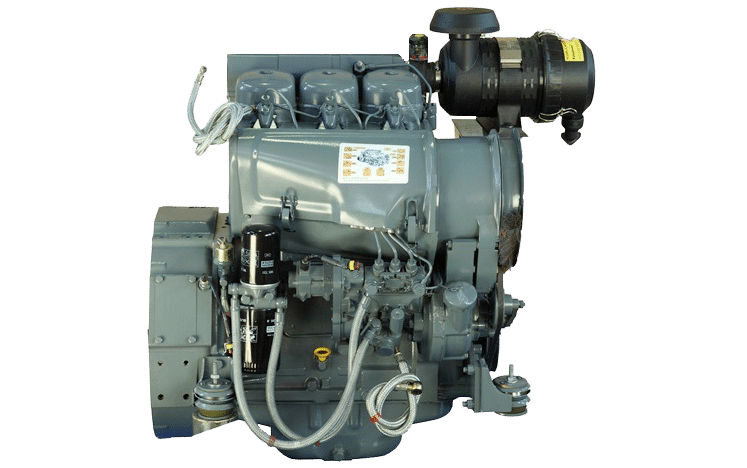

Engine model F 3 L 912 G
Engine type 4 stroke, 3 cylinder in-line
Displacement 177 in3 / 2.82 L
Rated Power 36~38 kW @ 2300~2500 RPM
Peak Torque 170N.m @ 1600 RPM
Cooling type Air Cooled
Applicable Construction machinery
deutz logo
Duutz logo
  • product properties
  • Deutz parts

Deutz engine F 3 L 912 G technique specification

Bore*stroke 100 mm * 120 mm / 3.92 in * 4.70 in
Intake method Naturally aspirated
idle speed 700 RPM
Rated Speed 2300 ~ 2500 RPM
Rated Power 36 ~ 38 kW
Specific fuel consumption 221 g/kW.h 0.37 lb/hph
Max. torque 170 Nm @ 1600 RPM
Compression Ratio 17 : 1
Emission Standard EU II, US T2

Deutz engine F 3 L 912 G trade parameters

Warranty time 1year or 1500h
Weight net 275 Kg
Weight gross 320 Kg
Delivary port Shanghai
Marine delivary boat Masket/zhongyuan
Delivary time 15 working days
Trade termes FOB/CIF/FAC
Payement termes T/T,L/C
Engine Size (L*W*H) 595mm*679mm*821mm
Packing Size (L*W*H) 700mm*800mm*1000mm
Transport Package wooden box
Mode of transport Sea transportation or air transportation

Original/genuine parts

Genuine Deutz Parts | 4520093017

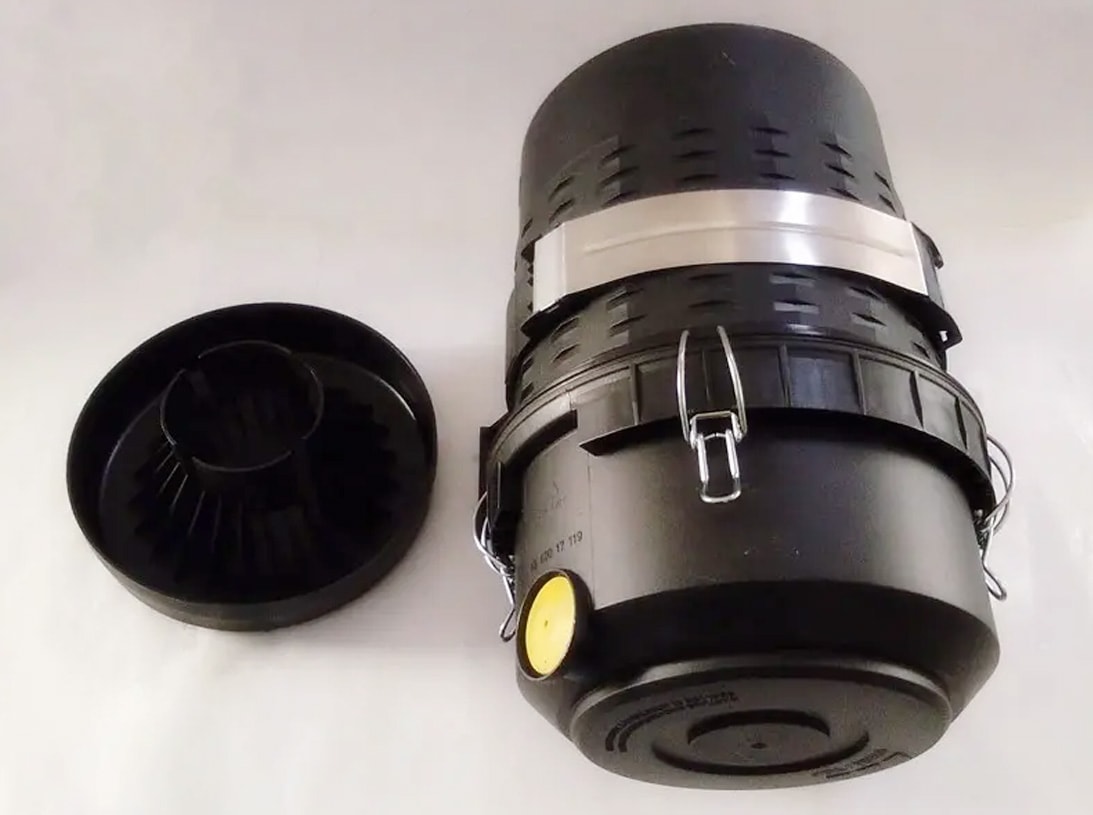

Air filter | P/N: 4520093017

Deutz parts | P/N: 04298305

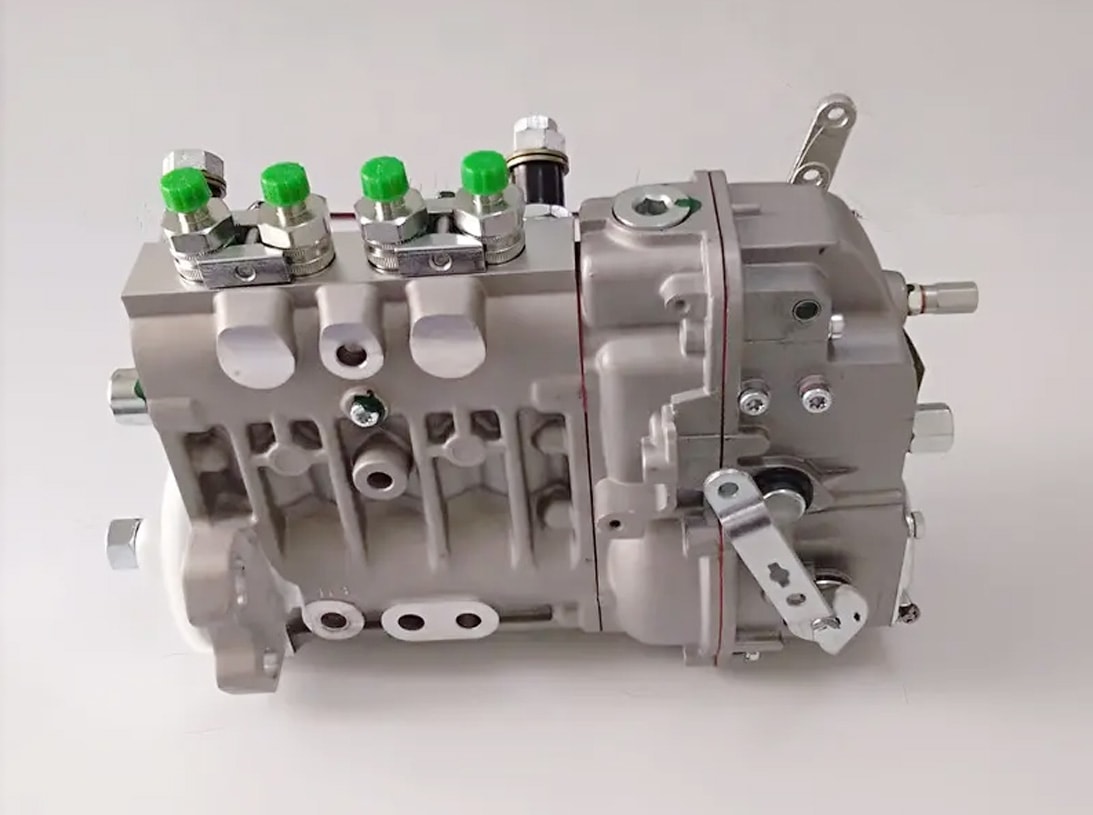

Fuel injection pump | P/N: 04298305

Deutz engine parts | P/N: 01180928

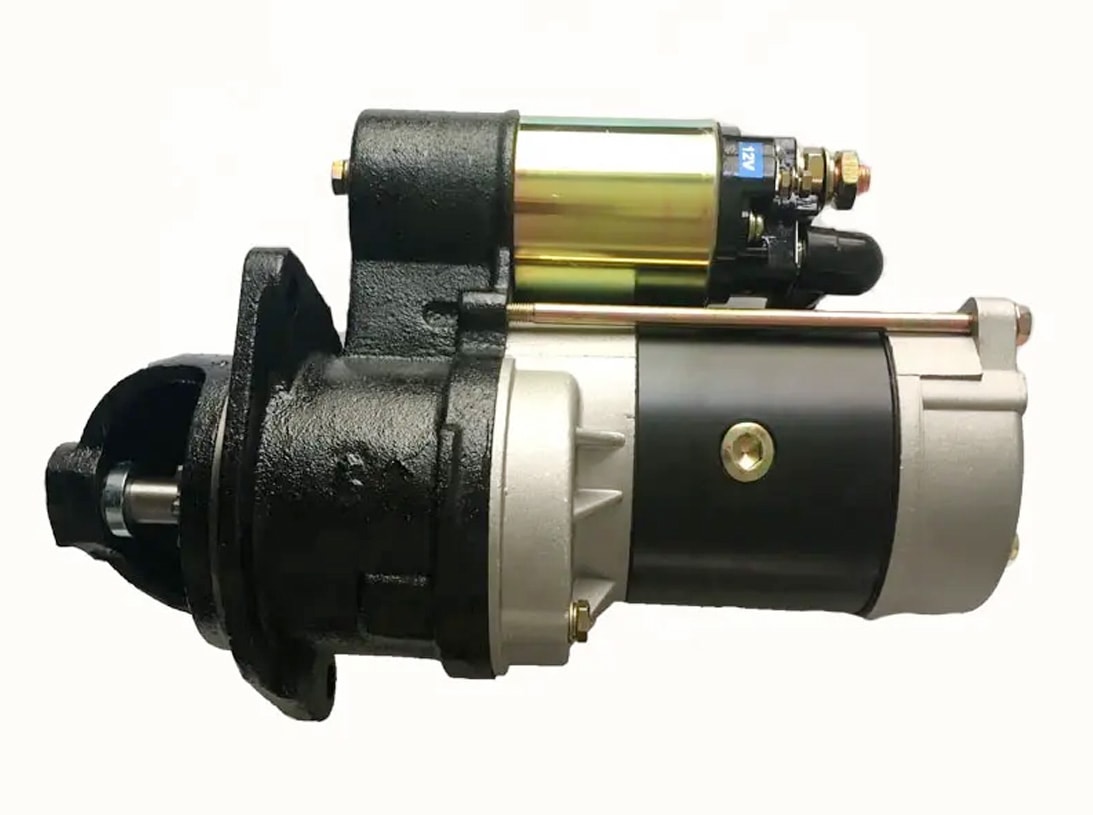

Starter motor | P/N: 01180928

Deutz diesel parts | P/N: 04157588

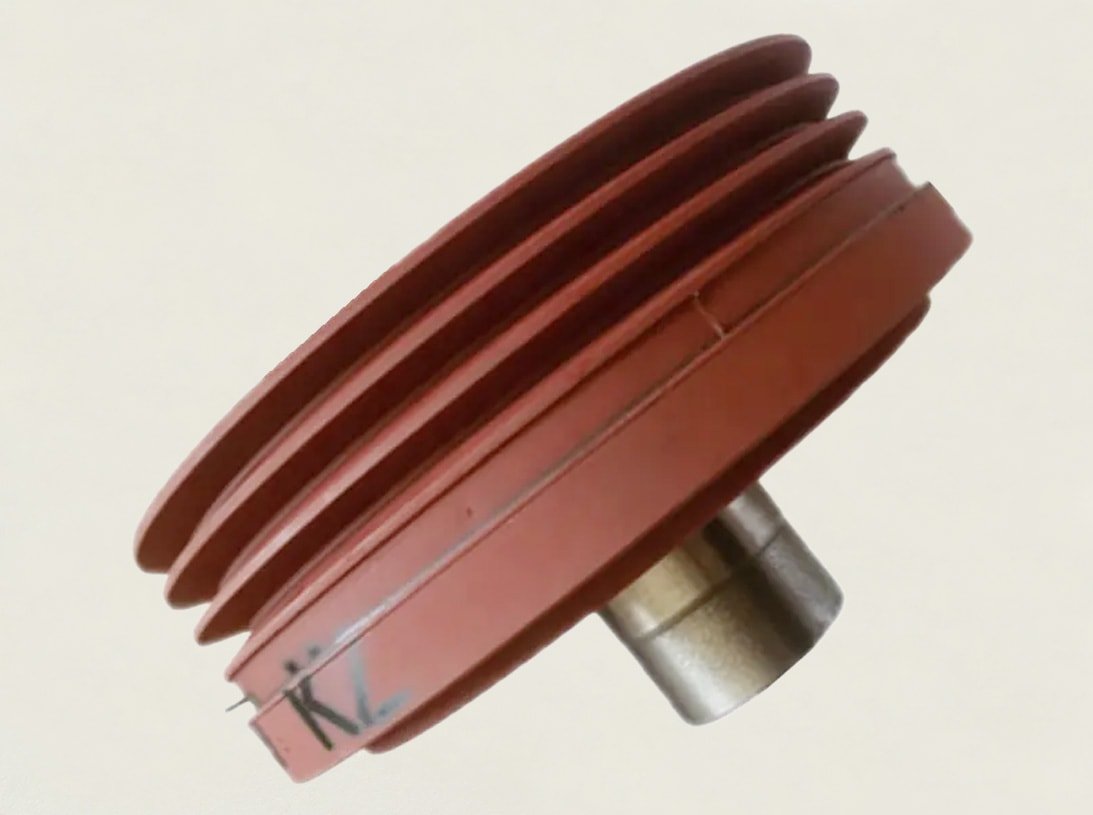

Crankshaft Pulley | P/N: 04157588

Genuine Deutz parts and fluids ensure engine durability and reliability

DEUTZ Xchange Parts
DEUTZ Genuine Parts Kits
DEUTZ Genuine Maintenance Parts and Operating Fluids

Choose Genuine. Because There is a Difference.

Genuine Deutz Parts

Choose Genuine. Because There is a Difference.

Genuine DEUTZ spare parts are the key to preserve the reliability and durability of your DEUTZ engine.

We offer a complete product portfolio, an unique genuine spare parts competence and the highest quality parts. Genuine DEUTZ parts provide optimum protection against wear and engine damage and they have been designed and tested specifically for DEUTZ engines – to provide you with maximum performance and long engine life.

Thorough and continuous maintenance is the key to preserve the reliability and durability of your DEUTZ engine.

For this reason, you should pay special attention to the maintenance parts and operating fluids being used: The quality of these components is crucial to maintain the desired performance of your engine.

Only highgrade, genuine products with perfect fit offer optimum protection against premature wear and possible engine damage – this is why you should rely on genuine DEUTZ wear parts and operating liquids.

Finally, DEUTZ Xchange parts are quality tested and certified per original equipment specifications (DIN ISO 9001/ DIN EN ISO 14001)
