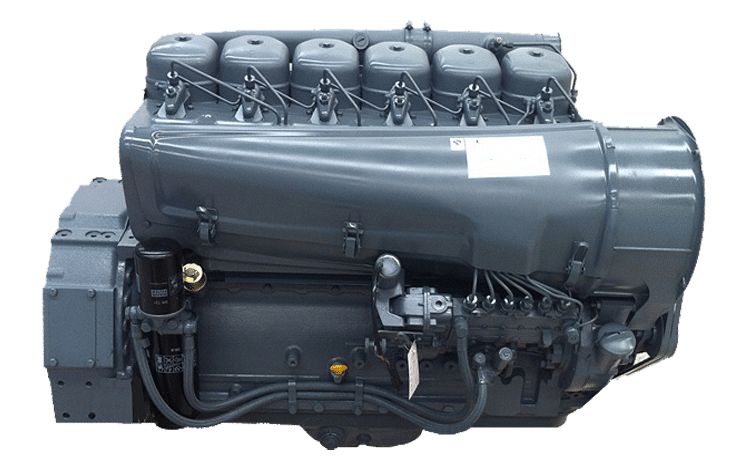

Engine model F 6 L 912 D
Engine type 4 stroke, 6 cylinder in-line
Displacement 355 in3 / 5.655 L
Continuous Power 48~60 kW @ 1500~1800 RPM
Maximum power 52~62 kW @ 1500~1800 RPM
Cooling type Air Cooled
Applicable Gen sets
deutz logo
Duutz logo
  • product properties
  • Deutz parts

F 6 L 912 D Gen sets 50 Hz / 1500 min-1 technique specification

Bore*stroke 100 mm * 120 mm / 3.92 in * 4.70 in
Intake method Naturally aspirated
Fuel comsuption 25% load 360 g/kW.h 0.59 lb/hph
Fuel comsuption 50% load 238 g/kW.h 0.39 lb/hph
Fuel comsuption 75% load 219 g/kW.h 0.36 lb/hph
Fuel comsuption 100% load 228 g/kW.h 0.36 lb/hph
Combustion air volume 262 m3/h | 154 cfm
max. exhaust gas temperature 500°C | 932 °F
Exhaust gas flow 715 m3/h | 421 cfm

F 6 L 912 D Gen sets 60 Hz / 1800 min-1 technique specification

Bore*stroke 100 mm * 120 mm / 3.92 in * 4.70 in
Intake method Naturally aspirated
Fuel comsuption 25% load 370 g/kW.h 0.61 lb/hph
Fuel comsuption 50% load 242 g/kW.h 0.40 lb/hph
Fuel comsuption 75% load 223 g/kW.h 0.37 lb/hph
Fuel comsuption 100% load 228 g/kW.h 0.36 lb/hph
Combustion air volume 315 m3/h | 185 cfm
max. exhaust gas temperature 500°C | 932 °F
Exhaust gas flow 853 m3/h | 502 cfm
Engine Size (L*W*H) 995mm*679mm*821mm
Packing Size (L*W*H) 1250mm*850mm*1020mm
Mode of transport Sea transportation or air transportation

Original/genuine parts

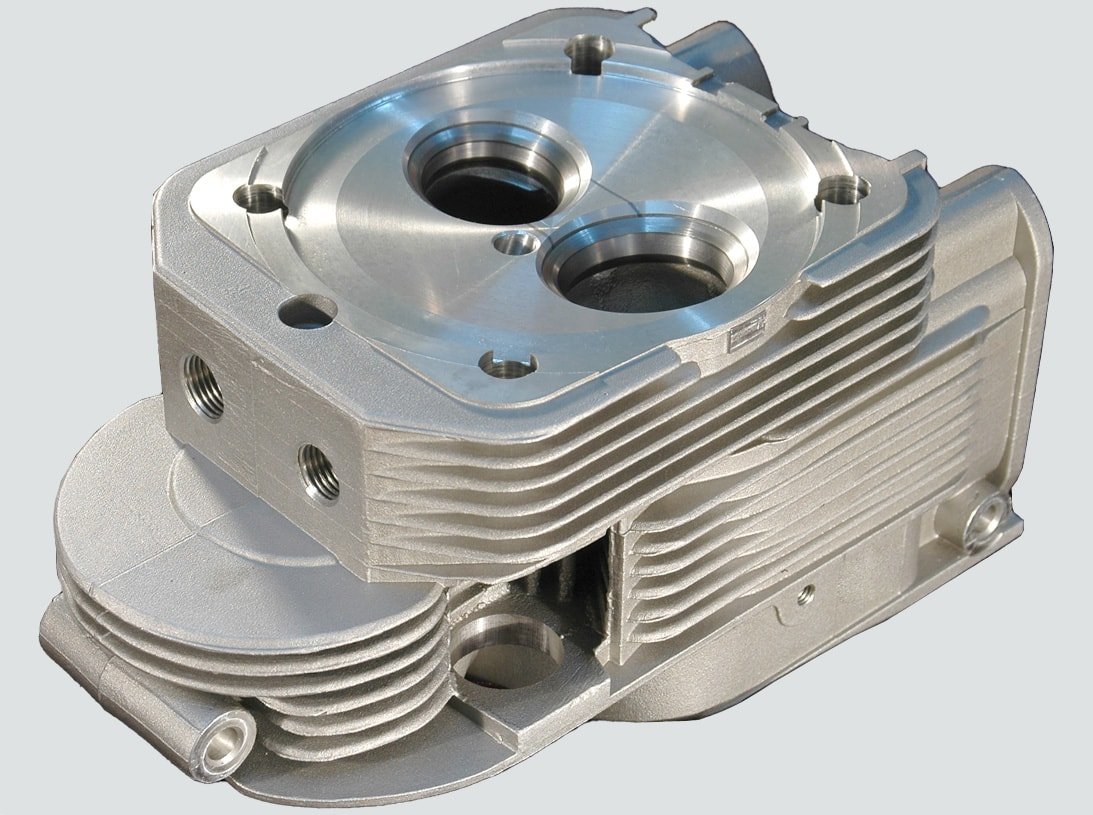

Deutz 912 Cylinder head

Deutz 912 Cylinder head

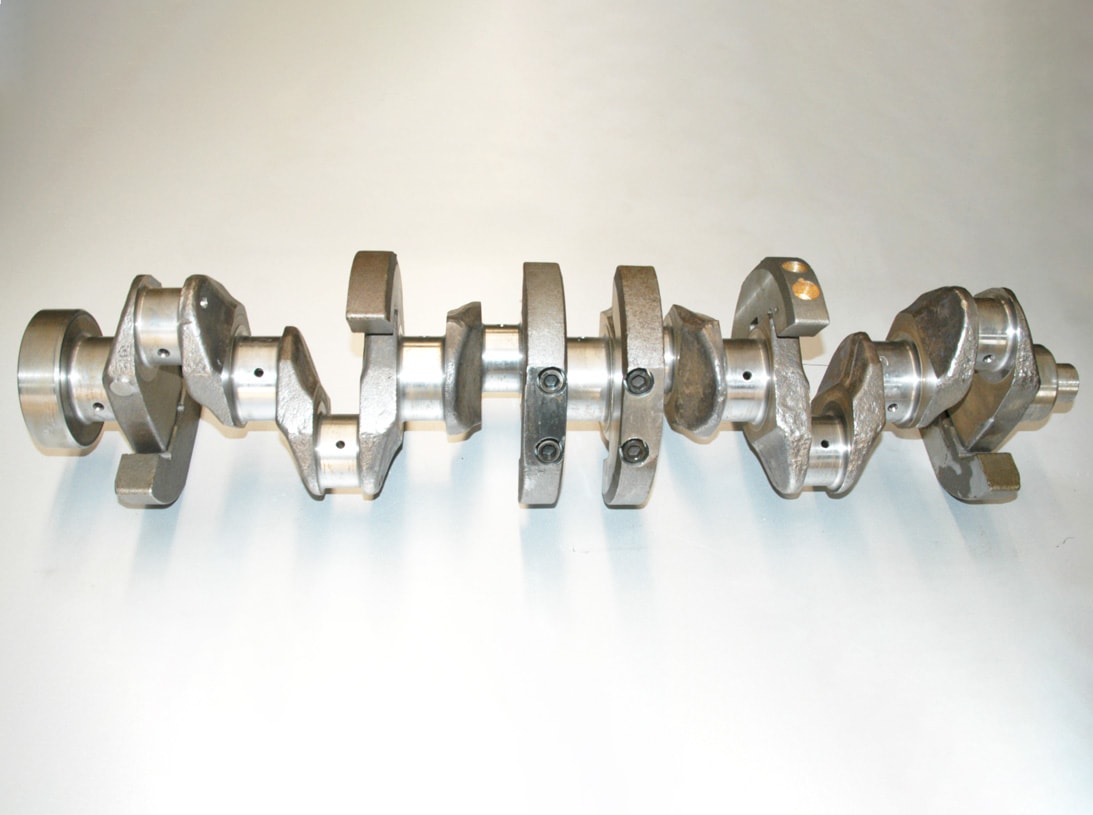

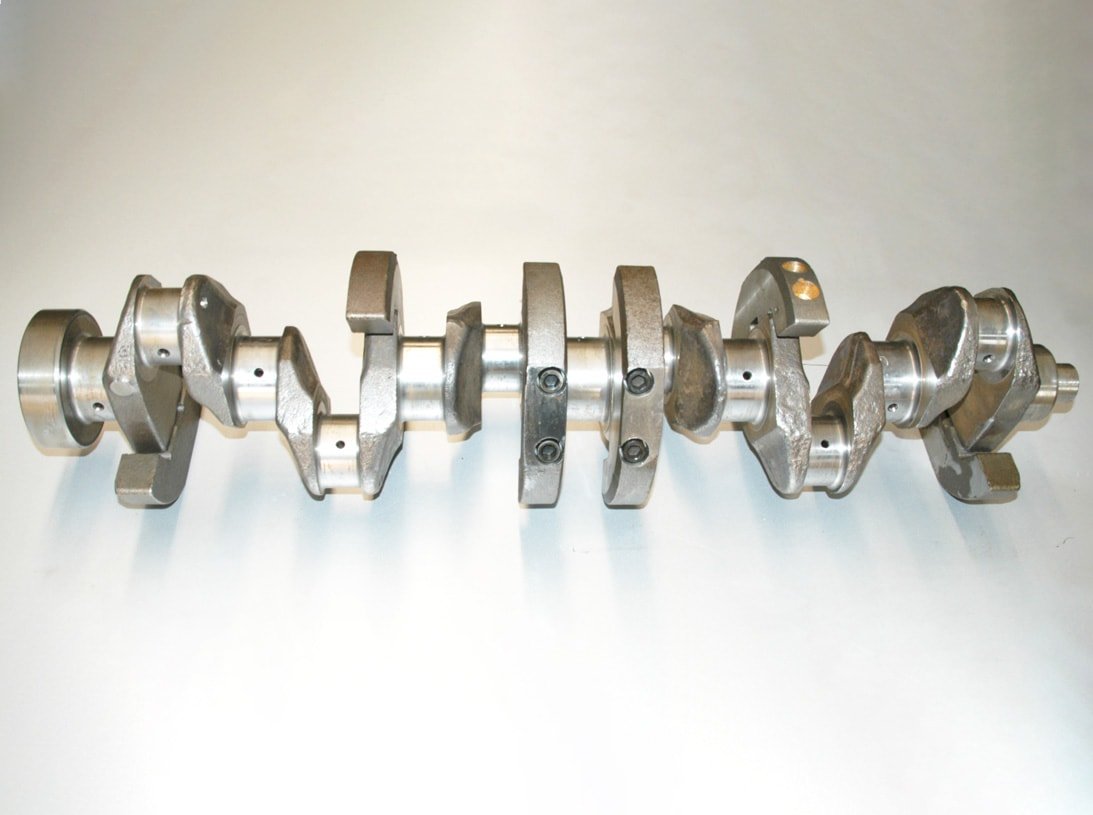

Deutz 6 cylinder crankshaft

Deutz 6 cylinder Crankshaft

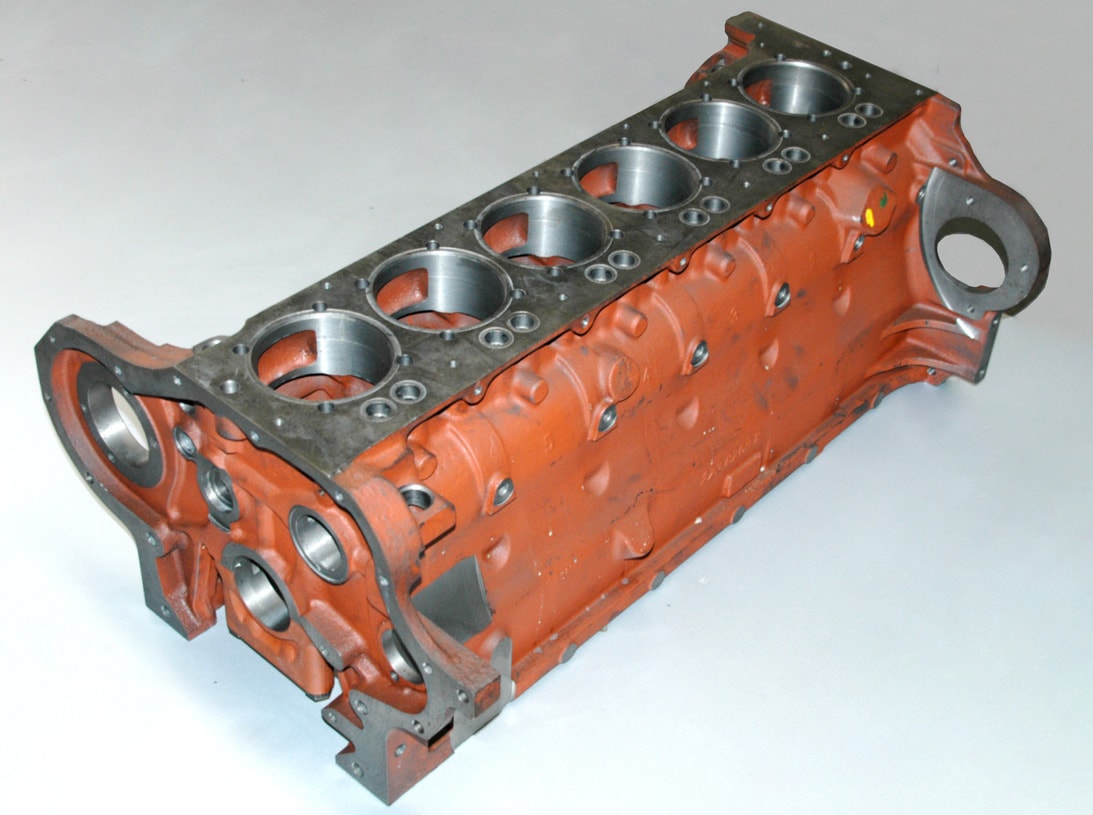

Deutz 6 cylinder crankcase

Deutz 6 cylinder crankcase

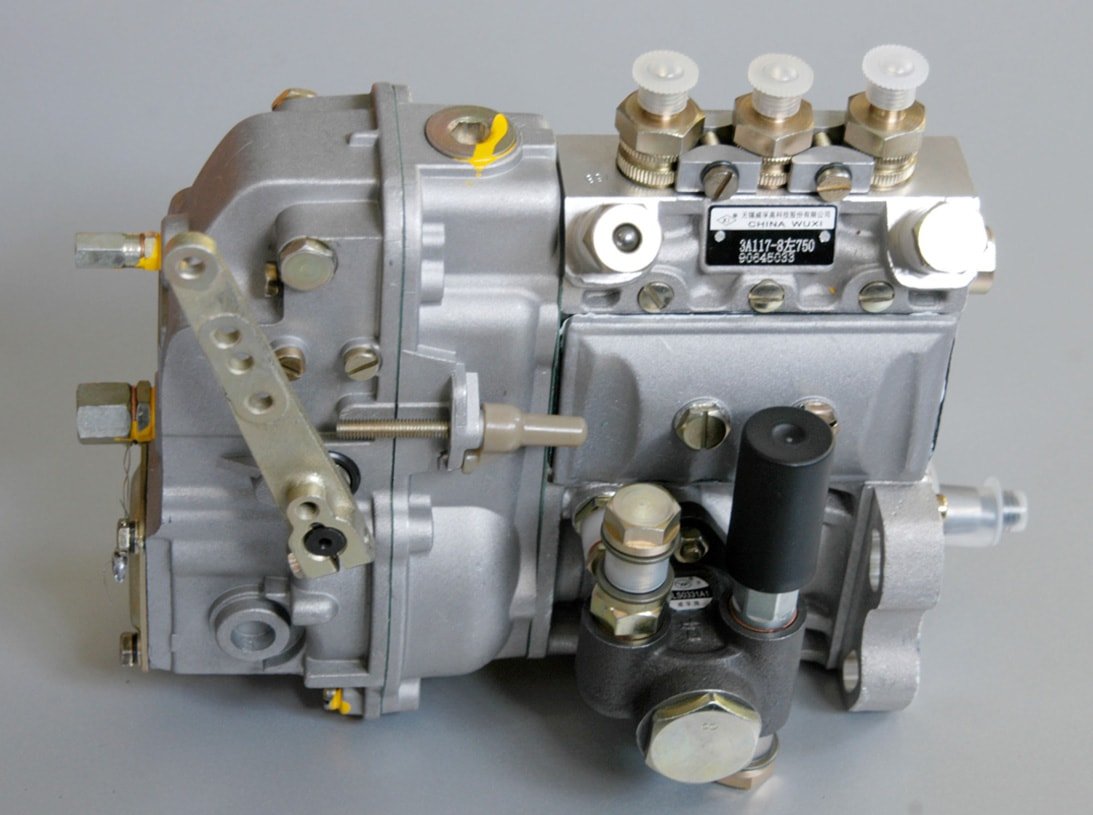

Deutz 3 cylinder fuel pump

Deutz 3 cylinder fuel pump

Genuine Deutz parts and fluids ensure engine durability and reliability

DEUTZ Xchange Parts
DEUTZ Genuine Parts Kits
DEUTZ Genuine Maintenance Parts and Operating Fluids

Choose Genuine. Because There is a Difference.

Genuine Deutz Parts

Choose Genuine. Because There is a Difference.

Genuine DEUTZ spare parts are the key to preserve the reliability and durability of your DEUTZ engine.

We offer a complete product portfolio, an unique genuine spare parts competence and the highest quality parts. Genuine DEUTZ parts provide optimum protection against wear and engine damage and they have been designed and tested specifically for DEUTZ engines – to provide you with maximum performance and long engine life.

Thorough and continuous maintenance is the key to preserve the reliability and durability of your DEUTZ engine.

For this reason, you should pay special attention to the maintenance parts and operating fluids being used: The quality of these components is crucial to maintain the desired performance of your engine.

Only highgrade, genuine products with perfect fit offer optimum protection against premature wear and possible engine damage – this is why you should rely on genuine DEUTZ wear parts and operating liquids.

Finally, DEUTZ Xchange parts are quality tested and certified per original equipment specifications (DIN ISO 9001/ DIN EN ISO 14001)
