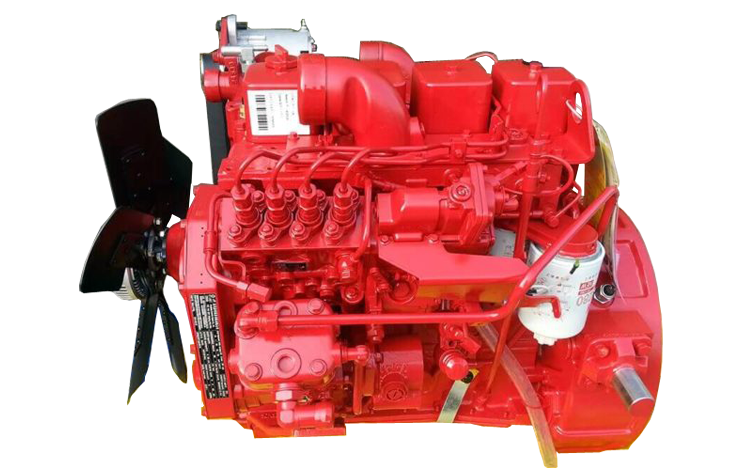

Engine model EQB125-20
Engine type 4 stroke, 4 cylinder in line
Displacement 3.9 L
Rated Power 92KW/125HP @ 2800 RPM
Peak Torque 410N.m @ 1500-1600 RPM
Emission Standard Euro Ⅱ
Use for truck
Cummins logo
  • Product advantages
  • Cummins parts

Cummins engine EQB125-20 technique specification

Bore*stroke 102 * 120mm
Intake method Turbocharged and Air-Air Intercooled
Fuel systeme BOSCH Pump
Cooling method Fluid Cooling 7.0 L
Compression Ratio 17.3 : 1
Max Torque/Speed 410N.m @ 1500-1600 RPM
Torque/Rated speed 317N.m @ 2800 RPM
Fuel Consumption/Rated Speed 224 g/KW.h @ 2800 RPM
Minimum Fuel Consumption 203 g/KW.h @ 1800 RPM

Cummins diesel engine EQB125-20 trade parameters

Warranty time 1year or 1500h
Engine Size(L*W*H): 767mm*816mm*855mm
Packing size 800mm*850mm*880mm
Weight net 343 Kg
Weight gross 365 Kg
Delivary port Shanghai
Marine delivary boat Masket/zhongyuan
Trade termes FOB/CIF/CNF
Delivary time 15 working days
Payement termes T/T,L/C
Mode of transport Sea transportation or air transportation

Original/genuine parts

Cummins parts | P/N: 4939585

Oil pump | P/N: 4939585

Genuine Cummins Parts | 3950661

Conrod Bearing | P/N: 3950661

Cummins parts | P/N: 1311V65C-010

Water Tank | P/N: 1311V65C-010

Cummins parts | P/N: 3800968

Crankshaft Oil Seal | P/N: 3800968

Cummins parts guarantee of engine durability and reliability

Cummins parts
Cummins parts
Cummins parts

Choose Genuine. Because There is a Difference.

Genuine Cummins Parts

Choose Genuine. Because There is a Difference.

Using Genuine Cummins parts makes all the difference. Genuine Cummins new and ReCon® parts are guaranteed to fit right and work right.

Extend the life of your equipment by choosing the best parts for your Cummins engine or generator.

Backed by Cummins with a 100% comprehensive warranty on parts, labour and progressive damage nothing works better or lasts longer.

The difference between Genuine Cummins parts and non-genuine parts isn’t always the easiest to detect.

Precision design, state-of-the-art manufacturing and rigorous testing ensures that Genuine Cummins parts perform at Cummins factory-specified levels of durability, reliability and performance.

Don't see the parts you are looking for? Click Here and we can get it for you or send you a quote from the thousands of commonly used Cummins parts.
