| Engine model | EQB140-20 |
| Engine type | 4 stroke, 4 cylinder in line |
| Displacement | 3.9 L |
| Rated Power | 103KW/140HP @ 2700 RPM |
| Peak Torque | 502N.m @ 1500 RPM |
| Emission Standard | Euro Ⅱ |
| Use for | truck |

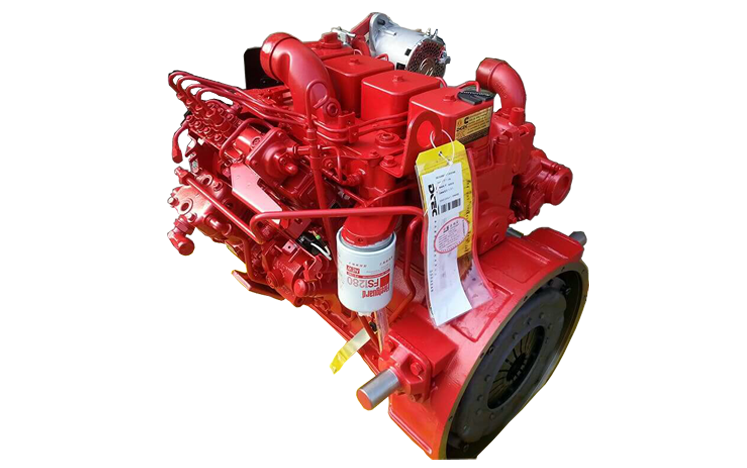

Cummins engine EQB140-20 technique specification |
|
|---|---|
| Bore*stroke | 102 * 120mm |
| Intake method | Turbocharged and Air-Air Intercooled |
| Fuel systeme | BOSCH Pump |
| Cooling method | Fluid Cooling 7.0 L |
| Compression Ratio | 17.3 : 1 |
| Max Torque/Speed | 502N.m @ 1500 RPM |
| Torque/Rated speed | 365N.m @ 2700 RPM |
| Fuel Consumption/Rated Speed | 234 g/KW.h @ 2700 RPM |
| Minimum Fuel Consumption | 210 g/KW.h @ 1900 RPM |
Cummins diesel engine EQB140-20 trade parameters |
|
|---|---|
| Warranty time | 1year or 1500h |
| Engine Size(L*W*H): | 767mm*816mm*855mm |
| Packing size | 800mm*850mm*880mm |
| Weight net | 343 Kg |
| Weight gross | 365 Kg |
| Delivary port | Shanghai |
| Marine delivary boat | Masket/zhongyuan |
| Trade termes | FOB/CIF/CNF |
| Delivary time | 15 working days |
| Payement termes | T/T，L/C |
| Mode of transport | Sea transportation or air transportation |
Built for durability, longevity, and dependability
Cummins Genuine Parts are built to exact specifications for our products, and made using materials and procedures that match our dependable products. This is why our parts are better than non-genuine parts.
Using Genuine Cummins parts makes all the difference. Genuine Cummins new and ReCon® parts are guaranteed to fit right and work right.
Extend the life of your equipment by choosing the best parts for your Cummins engine or generator.
Backed by Cummins with a 100% comprehensive warranty on parts, labour and progressive damage nothing works better or lasts longer.
The difference between Genuine Cummins parts and non-genuine parts isn’t always the easiest to detect.
Precision design, state-of-the-art manufacturing and rigorous testing ensures that Genuine Cummins parts perform at Cummins factory-specified levels of durability, reliability and performance.
Don't see the parts you are looking for? Click Here and we can get it for you or send you a quote from the thousands of commonly used Cummins parts.
