| Engine model | ISB125-30 |
| Engine type | 4 stroke, 4 cylinder in line |
| Displacement | 3.9 L |
| Rated Power | 92kW (125 HP) @ 2500rpm |
| Peak Torque | 410 N.m @ 1200 - 2100rpm |
| Emission Standard | Euro III / Euro IV |
| Use for | truck |

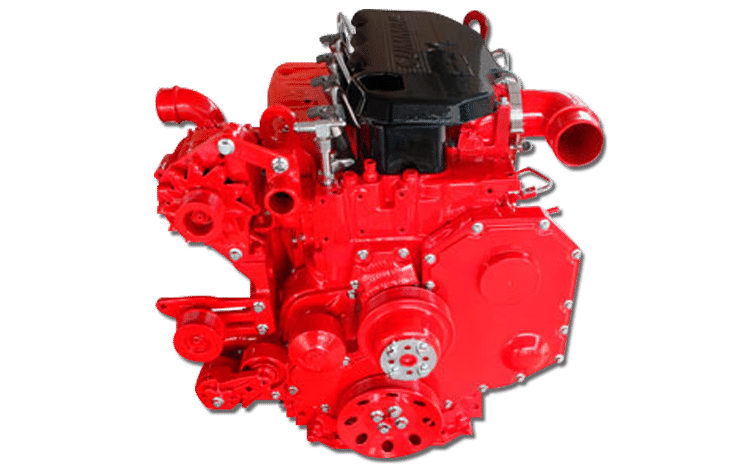

Cummins engine ISB125-30 technique specification |
|
|---|---|
| Bore*stroke | 102 * 120mm |
| Intake method | Turbochager & Inter Cooled |
| Fuel systeme | DENSO high pression Common rail |
| Cooling method | Fluid Cooling 7.0 L |
| Governor Type | Electronic Control CM2220 |
| Compression Ratio | 18 : 1 |
| Fuel Consumption | 20.8L/hr @ Rated Power |
| Starting System | Electrical Starting Motor 24V/510A |
| Lowest Starting Temp .(with/without auxiliary system) | -10℃/-41℃ |
Cummins diesel engine ISB125-30 trade parameters |
|
|---|---|
| Warranty time | 1year or 1500h |
| Engine Size(L*W*H): | 791mm*772mm*831mm |
| Packing size | 850mm*830mm*880mm |
| Weight net | 337 Kg |
| Weight gross | 355 Kg |
| Delivary port | Shanghai |
| Marine delivary boat | Masket/zhongyuan |
| Trade termes | FOB/CIF/EXW |
| Delivary time | 15 working days |
| Payement termes | T/T，L/C |
| Mode of transport | Sea transportation or air transportation |
Built for durability, longevity, and dependability
Cummins Genuine Parts are built to exact specifications for our products, and made using materials and procedures that match our dependable products. This is why our parts are better than non-genuine parts.
Using Genuine Cummins parts makes all the difference. Genuine Cummins new and ReCon® parts are guaranteed to fit right and work right.
Extend the life of your equipment by choosing the best parts for your Cummins engine or generator.
Backed by Cummins with a 100% comprehensive warranty on parts, labour and progressive damage nothing works better or lasts longer.
The difference between Genuine Cummins parts and non-genuine parts isn’t always the easiest to detect.
Precision design, state-of-the-art manufacturing and rigorous testing ensures that Genuine Cummins parts perform at Cummins factory-specified levels of durability, reliability and performance.
Don't see the parts you are looking for? Click Here and we can get it for you or send you a quote from the thousands of commonly used Cummins parts.
