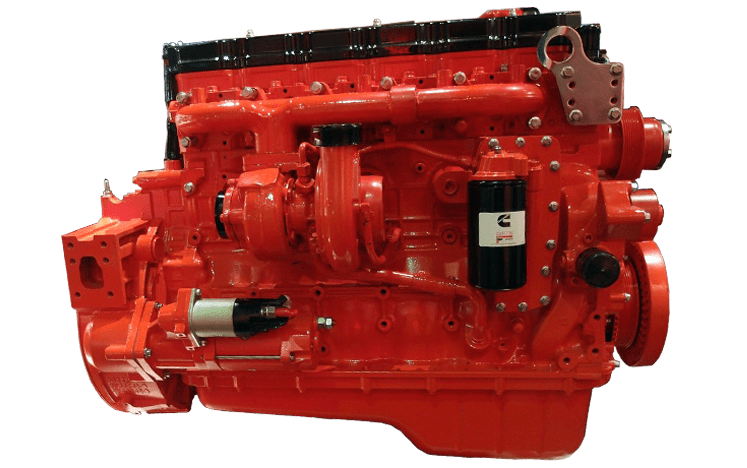

Engine model ISDe300-40
Engine type 4 stroke, 6 cylinders in line
Displacement 6.7 L
Rated Power 221kW (300 HP) @ 2500rpm
Peak Torque 1100N.m @ 1400rpm
Emission Standard Euro Ⅳ
Use for Truck & Coach
Cummins logo
  • Product advantages
  • Cummins parts

Cummins engine ISDe300-40 technique specification

Bore*stroke 107 * 124mm
Intake method Turbochager & Intercooled
Fuel systeme Bosch Direct Injection (HPCR)
Cooling method Fluid Cooling 6.7 L
Governor Type Electronic Control
Compression Ratio 17.3 : 1
Fuel Consumption: 195g/Kw.h @ Rated Power
Starting System Electrical Starting Motor 12V/500A; 24V/250A
Lowest Starting Temp .(with/without auxiliary system) -10℃/-25℃

Cummins diesel engine ISDe300-40 trade information

Warranty time 1year or 1500h
Engine Size(L*W*H): 940mm*742mm*837mm
Packing size 1000mm*800mm*900mm
Weight net 420 Kg
Weight gross 519 Kg
Delivary port Shanghai
Marine delivary boat Masket/zhongyuan
Delivary time 15 working days
Trade termes FOB/CIF/CNF
Payement termes T/T,L/C
Mode of transport Sea transportation or air transportation

Original/genuine parts

Cummins parts | P/N: 4939585

Oil pump | P/N: 4939585

Genuine Cummins Parts | 3950661

Conrod Bearing | P/N: 3950661

Cummins parts | P/N: 1311V65C-010

Water Tank | P/N: 1311V65C-010

Cummins parts | P/N: 3800968

Crankshaft Oil Seal | P/N: 3800968

Cummins parts guarantee of engine durability and reliability

Cummins parts
Cummins parts
Cummins parts

Choose Genuine. Because There is a Difference.

Genuine Cummins Parts

Choose Genuine. Because There is a Difference.

Using Genuine Cummins parts makes all the difference. Genuine Cummins new and ReCon® parts are guaranteed to fit right and work right.

Extend the life of your equipment by choosing the best parts for your Cummins engine or generator.

Backed by Cummins with a 100% comprehensive warranty on parts, labour and progressive damage nothing works better or lasts longer.

The difference between Genuine Cummins parts and non-genuine parts isn’t always the easiest to detect.

Precision design, state-of-the-art manufacturing and rigorous testing ensures that Genuine Cummins parts perform at Cummins factory-specified levels of durability, reliability and performance.

Don't see the parts you are looking for? Click Here and we can get it for you or send you a quote from the thousands of commonly used Cummins parts.
