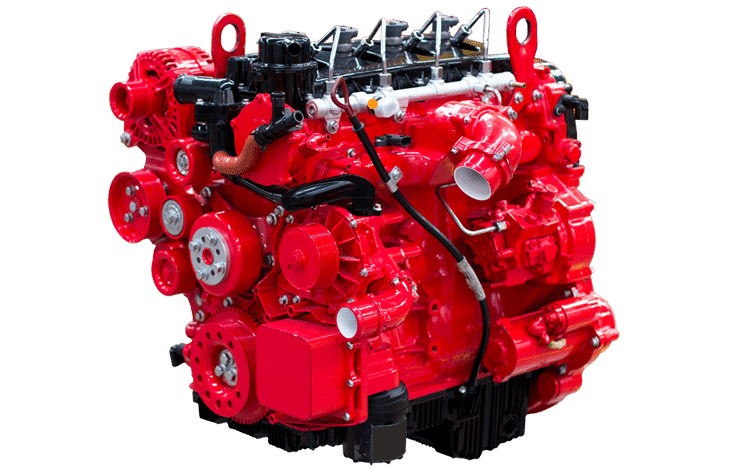

Engine model ISF2.8s5129T
Engine type 4 stroke, 4 cylinders in line
Displacement 2.78 L
Rated Power 96kW (130 HP) @ 3200rpm
Peak Torque 310N.m @ 2700 rpm
Emission Standard Euro Ⅲ / Ⅳ / Ⅴ
Use for Commercial Vehicle
Cummins logo
Cummins logo
  • Product advantages
  • Cummins parts

Cummins engine ISF2.8s5129T technique specification

Bore*stroke 94 * 100mm
Intake method Turbocharged & Charge Air Cooled
Fuel systeme Bosch Direct Injection/HPCR, SCR
Cooling method Fluid Cooling 11.1 L
Governor Type Electronic Control
Compression Ratio 16.5 : 1
Fuel Consumption: 205g/kW.h @ Rated Power
Starting System Electrical Starting Motor 24V/750A
Lowest Starting Temp .(with/without auxiliary system) -30℃/-45℃

Cummins diesel engine ISF2.8s5129T trade information

Warranty time 1year or 1500h
Engine Size(L*W*H): 622mm*645mm*718mm
Packing size 670mm*710mm*780mm
Weight net 214 Kg
Weight gross 268 Kg
Delivary port Shanghai
Marine delivary boat Masket/zhongyuan
Delivary time 15 working days
Trade termes FOB/CIF/CNF
Payement termes T/T,L/C
Mode of transport Sea transportation or air transportation

Original/genuine parts

Cummins spare parts | P/N: 4948505F

Main bearing | P/N: 4948505F

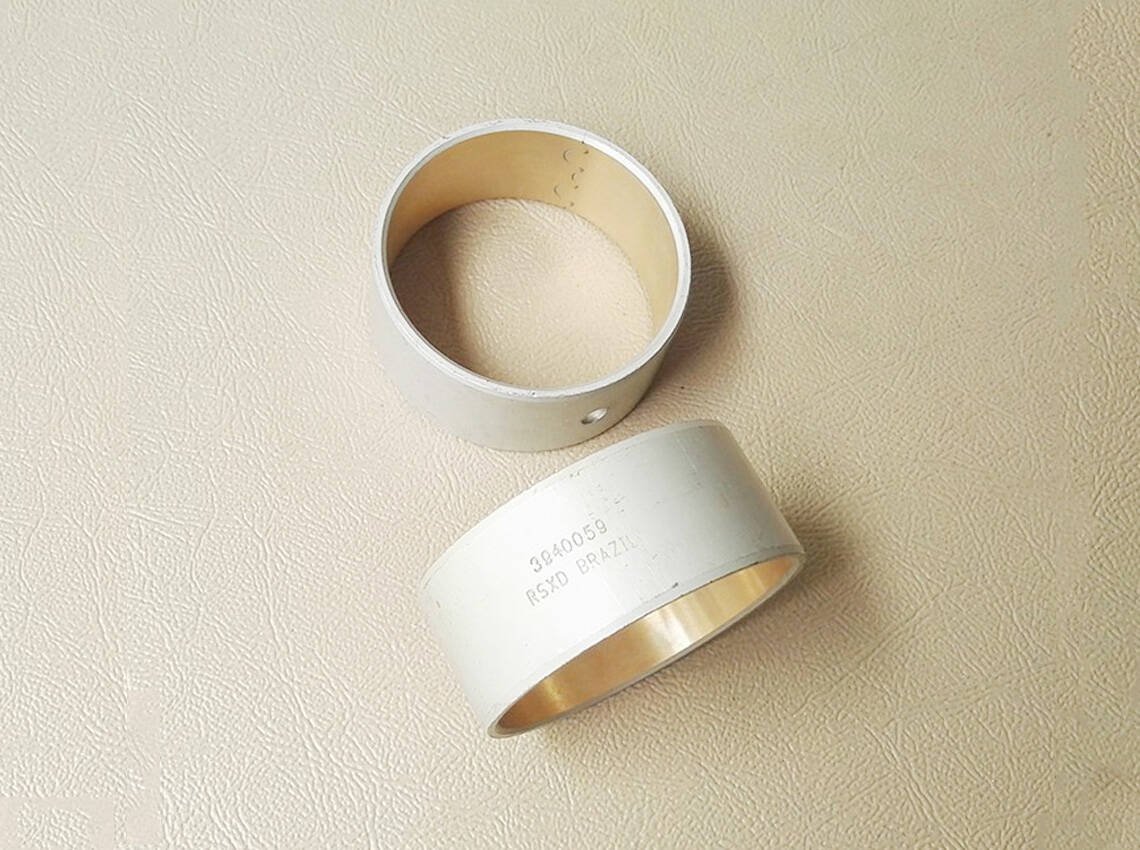

Genuine Cummins Parts | 3940059

Camshaft bushing | P/N: 3940059

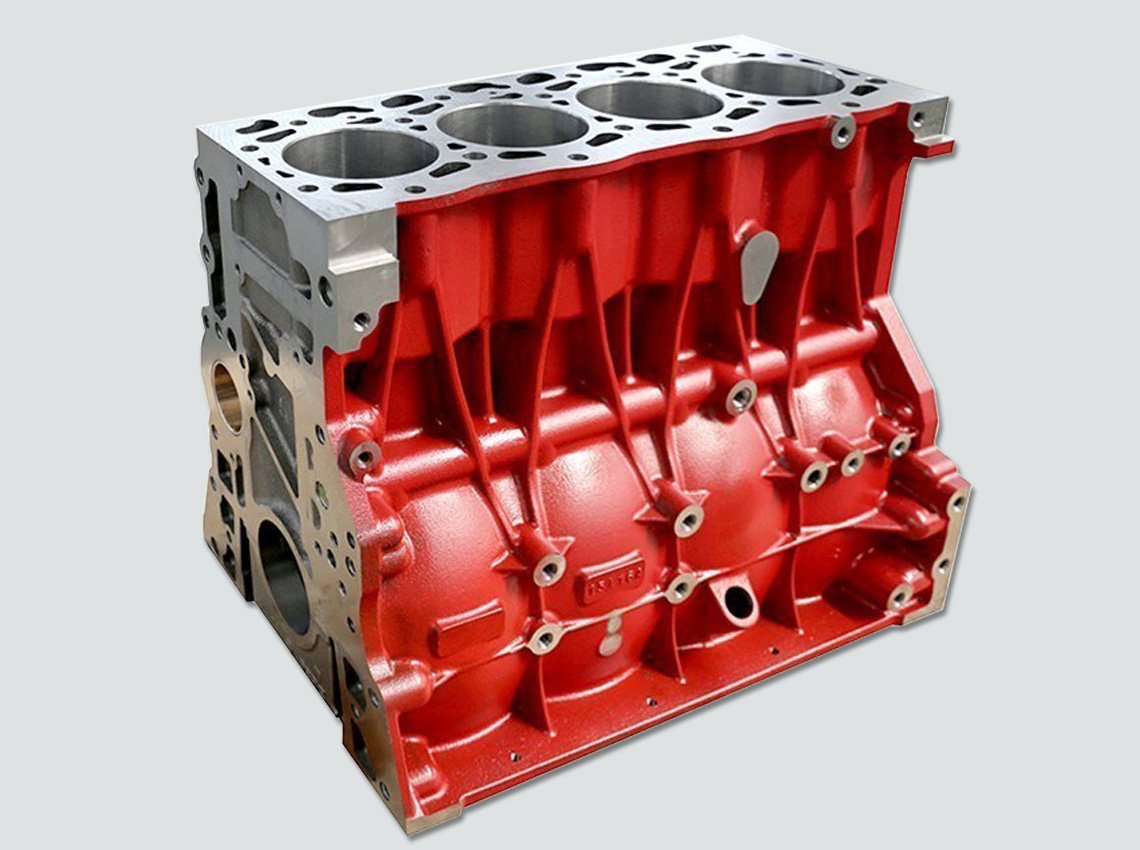

Cummins engine parts | P/N: 5256400

Cylinder block | P/N: 5256400

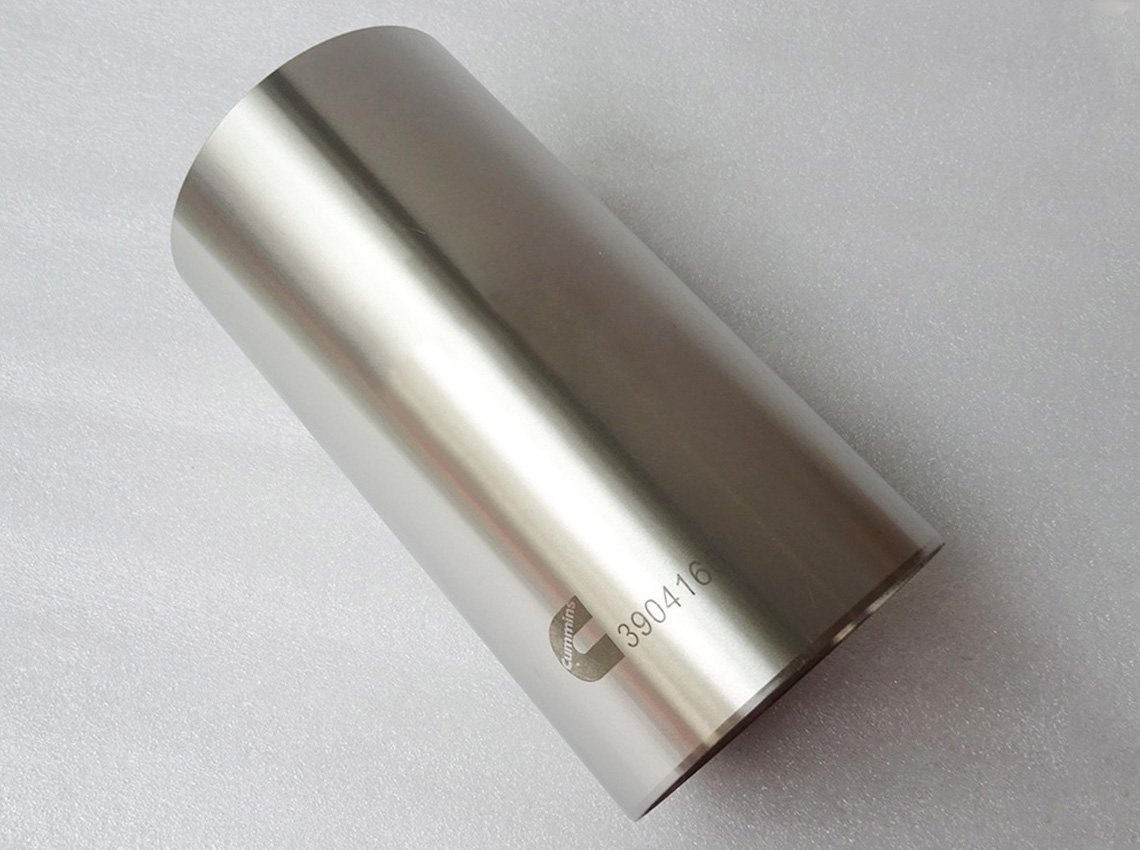

Cummins diesel parts | P/N: 3904166

Cylinder Liner | P/N: 3904166

Cummins parts guarantee of engine durability and reliability

Cummins parts
Cummins parts
Cummins parts

Choose Genuine. Because There is a Difference.

Genuine Cummins Parts

Choose Genuine. Because There is a Difference.

Using Genuine Cummins parts makes all the difference. Genuine Cummins new and ReCon® parts are guaranteed to fit right and work right.

Extend the life of your equipment by choosing the best parts for your Cummins engine or generator.

Backed by Cummins with a 100% comprehensive warranty on parts, labour and progressive damage nothing works better or lasts longer.

The difference between Genuine Cummins parts and non-genuine parts isn’t always the easiest to detect.

Precision design, state-of-the-art manufacturing and rigorous testing ensures that Genuine Cummins parts perform at Cummins factory-specified levels of durability, reliability and performance.

Don't see the parts you are looking for? Click Here and we can get it for you or send you a quote from the thousands of commonly used Cummins parts.
