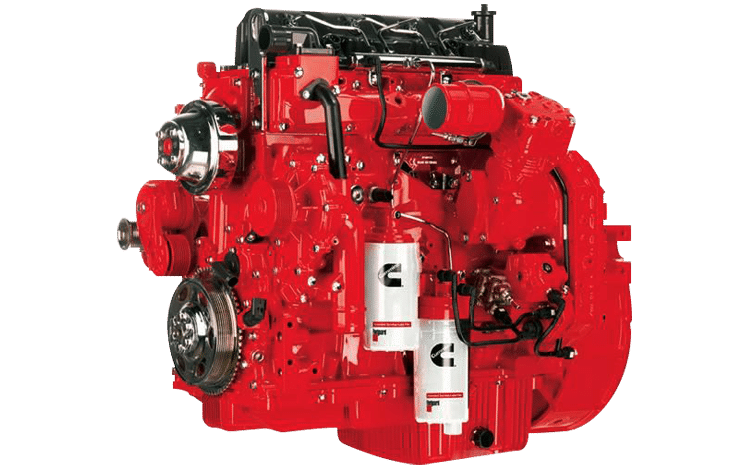

| Engine model | ISF3.8s3154 |
| Engine type | 4 stroke, 4 cylinders in line |
| Displacement | 3.76 L |
| Rated Power | 115kW (156 HP) @ 2600rpm |
| Peak Torque | 500N.m @ 1200-1900rpm |
| Emission Standard | Euro Ⅲ |
| Use for | Commercial Vehicle |
Cummins engine ISF3.8s3154 technique specification |
|
|---|---|
| Bore*stroke | 102 * 115mm |
| Intake method | Turbocharged & Charge Air Cooled |
| Fuel systeme | Bosch Direct Injection/HPCR, SCR |
| Cooling method | Fluid Cooling 11.1 L |
| Governor Type | Electronic Control |
| Compression Ratio | 17.2 : 1 |
| Fuel Consumption: | 195g/Kw.h @ Rated Power |
| Starting System | Electrical Starting Motor 24V/750A |
| Lowest Starting Temp .(with/without auxiliary system) | -10℃/-25℃ |
Cummins diesel engine ISF3.8s3154 trade information |
|
| Warranty time | 1year or 1500h |
| Engine Size(L*W*H): | 810mm*695mm*806mm |
| Packing size | 910mm*730mm*860mm |
| Weight net | 340 Kg |
| Weight gross | 400 Kg |
| Delivary port | Shanghai |
| Marine delivary boat | Masket/zhongyuan |
| Delivary time | 15 working days |
| Trade termes | FOB/CIF/CNF |
| Payement termes | T/T，L/C |
| Mode of transport | Sea transportation or air transportation |
Using Genuine Cummins parts makes all the difference. Genuine Cummins new and ReCon® parts are guaranteed to fit right and work right.
Extend the life of your equipment by choosing the best parts for your Cummins engine or generator.
Backed by Cummins with a 100% comprehensive warranty on parts, labour and progressive damage nothing works better or lasts longer.
The difference between Genuine Cummins parts and non-genuine parts isn’t always the easiest to detect.
Precision design, state-of-the-art manufacturing and rigorous testing ensures that Genuine Cummins parts perform at Cummins factory-specified levels of durability, reliability and performance.
Don't see the parts you are looking for? Click Here and we can get it for you or send you a quote from the thousands of commonly used Cummins parts.
