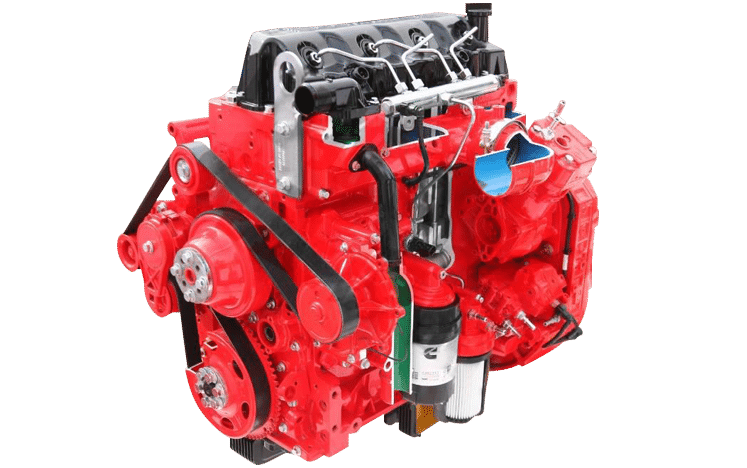

Engine model ISF3.8s4168
Engine type 4 stroke, 4 cylinders in line
Displacement 3.76 L
Rated Power 125kW (168 HP) @ 2600rpm
Peak Torque 600N.m @ 1300-1700rpm
Emission Standard Euro Ⅳ
Use for Commercial Vehicle
Cummins logo
  • Product advantages
  • Cummins parts

Cummins engine ISF3.8s4168 technique specification

Bore*stroke 102 * 115mm
Intake method Turbochager & Intercooled
Fuel systeme Bosch Direct Injection/HPCR, SCR
Cooling method Fluid Cooling 11.1 L
Governor Type Electronic Control
Compression Ratio 17.2 : 1
Fuel Consumption: 195g/Kw.h @ Rated Power
Starting System Electrical Starting Motor 12V/500A; 24V/250A
Lowest Starting Temp .(with/without auxiliary system) -10℃/-25℃

Cummins diesel engine ISF3.8s4168 trade information

Warranty time 1year or 1500h
Engine Size(L*W*H): 810mm*695mm*806mm
Packing size 900mm*750mm*850mm
Weight net 340 Kg
Weight gross 400 Kg
Delivary port Shanghai
Marine delivary boat Masket/zhongyuan
Delivary time 15 working days
Trade termes FOB/CIF/CNF
Payement termes T/T,L/C
Mode of transport Sea transportation or air transportation

Original/genuine parts

Cummins spare parts | P/N: 4948505F

Main bearing | P/N: 4948505F

Genuine Cummins Parts | 5319202

Starter motor | P/N: 5319202

Cummins parts | P/N: 5266683

EGR valve | P/N: 5266683

Cummins parts | P/N: 5257364

Connecting Rod | P/N: 5257364

Cummins parts guarantee of engine durability and reliability

Cummins parts
Cummins parts
Cummins parts

Choose Genuine. Because There is a Difference.

Genuine Cummins Parts

Choose Genuine. Because There is a Difference.

Using Genuine Cummins parts makes all the difference. Genuine Cummins new and ReCon® parts are guaranteed to fit right and work right.

Extend the life of your equipment by choosing the best parts for your Cummins engine or generator.

Backed by Cummins with a 100% comprehensive warranty on parts, labour and progressive damage nothing works better or lasts longer.

The difference between Genuine Cummins parts and non-genuine parts isn’t always the easiest to detect.

Precision design, state-of-the-art manufacturing and rigorous testing ensures that Genuine Cummins parts perform at Cummins factory-specified levels of durability, reliability and performance.

Don't see the parts you are looking for? Click Here and we can get it for you or send you a quote from the thousands of commonly used Cummins parts.
