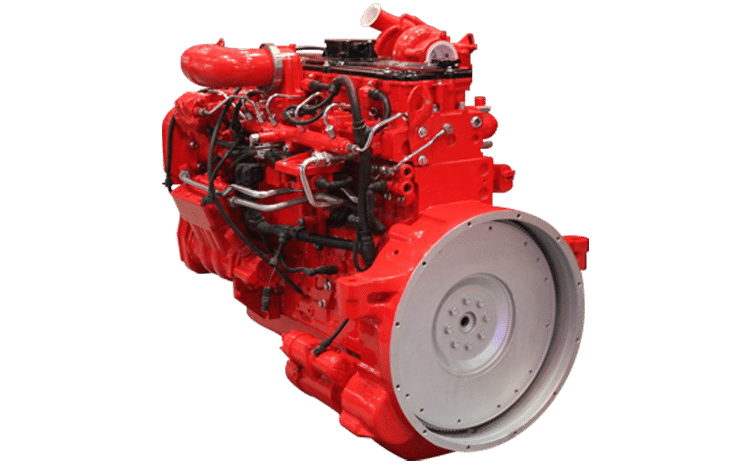

Engine model ISLe270-30
Engine type 4 stroke, 6 cylinders in line
Displacement 8.9 L
Rated Power 201Kw(270 HP) @ 2100rpm
Peak Torque 1050N.m @ 1700 rpm
Emission Standard Euro Ⅲ/ Euro Ⅳ
Manufacturer DCEC Cummins
Cummins logo
Cummins logo
  • Product advantages
  • Cummins parts

Cummins engine ISLe270-30 technique specification

Bore*stroke 114 * 144.5mm
Intake method Turbochager & Intercooled
Fuel systeme Cummins Common Rail CCR
Fuel Consumption 195g/kW.h @ Rated Power
Compression Ratio 16.6 : 1
Governor Type Electronic Control Modele ECM
Adaptation range Suitable for Trucks
Starting System Electrical Starting Motor 24V/750A
Lowest Starting Temp .(with/without auxiliary system) 35℃/-10℃

Cummins diesel engine ISLe270-30 trade information

Warranty time 1year or 1500h
Engine Size(L*W*H): 1129mm*876mm*1076mm
Packing size 1590mm*1110mm*1150mm
Weight net 707 Kg
Weight gross 780 Kg
Delivary port Shanghai
Marine delivary boat Masket/zhongyuan
Delivary time 15 working days
Trade termes FOB/CIF/CNF
Payement termes T/T,L/C
Mode of transport Sea transportation or air transportation

Original/genuine parts

Cummins spare parts | P/N: 3963808

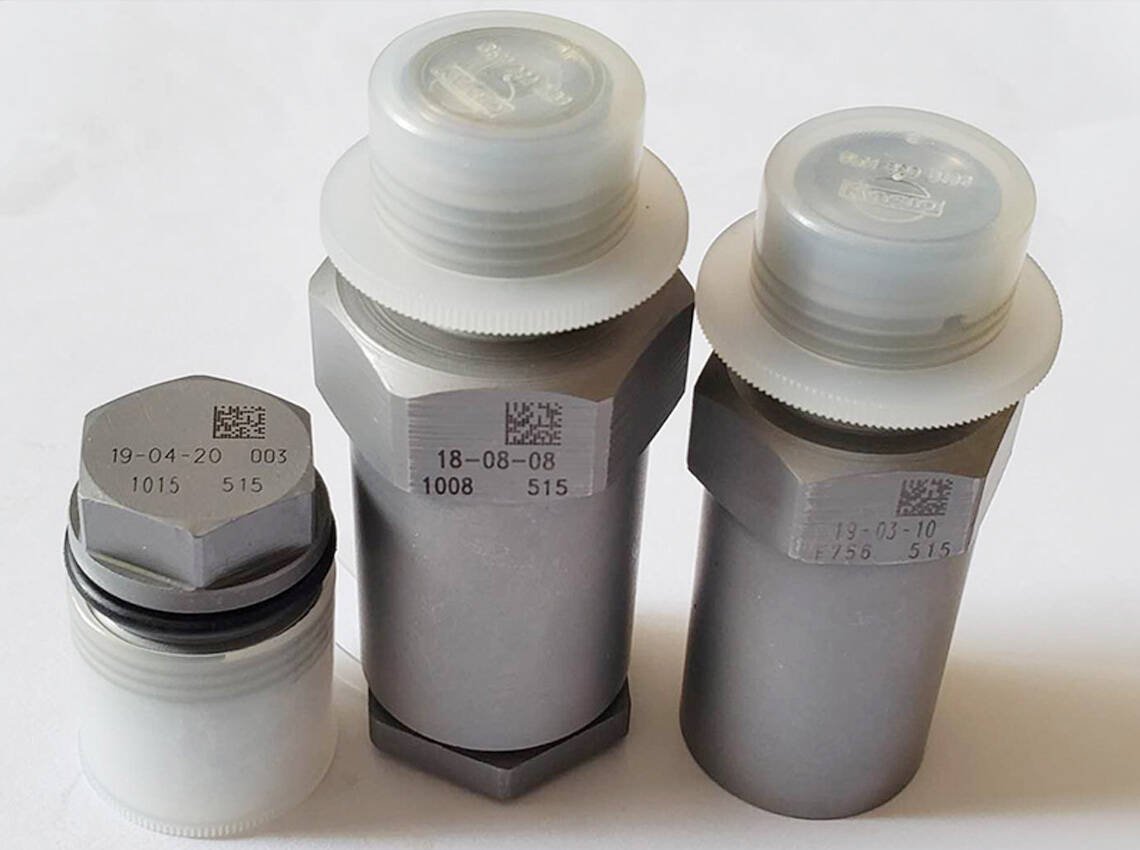

Pressure Relief Valve | P/N: 3963808

Genuine Cummins Parts | 5263304

Fuel injector | P/N: 5263304

Cummins engine parts | P/N: 4903462

Fuel Injection Pump | P/N: 4903462

Cummins diesel parts | P/N: 4937766

Fuel Transfer Pump | P/N: 4937766

Cummins parts guarantee of engine durability and reliability

Cummins parts
Cummins parts
Cummins parts

Choose Genuine. Because There is a Difference.

Genuine Cummins Parts

Choose Genuine. Because There is a Difference.

Using Genuine Cummins parts makes all the difference. Genuine Cummins new and ReCon® parts are guaranteed to fit right and work right.

Extend the life of your equipment by choosing the best parts for your Cummins engine or generator.

Backed by Cummins with a 100% comprehensive warranty on parts, labour and progressive damage nothing works better or lasts longer.

The difference between Genuine Cummins parts and non-genuine parts isn’t always the easiest to detect.

Precision design, state-of-the-art manufacturing and rigorous testing ensures that Genuine Cummins parts perform at Cummins factory-specified levels of durability, reliability and performance.

Don't see the parts you are looking for? Click Here and we can get it for you or send you a quote from the thousands of commonly used Cummins parts.
