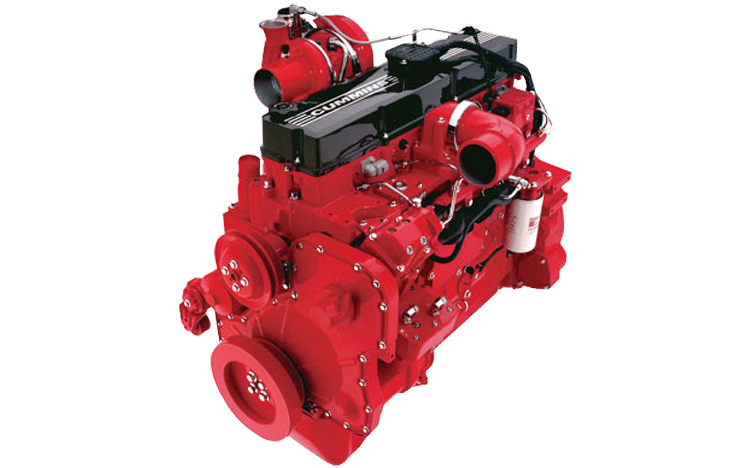

| Engine model | ISLe325-30 |
| Engine type | 4 stroke, 6 cylinders in line |
| Displacement | 8.9 L |
| Rated Power | 239Kw(325 HP) @ 2100rpm |
| Peak Torque | 1425N.m @ 1400 rpm |
| Emission Standard | Euro Ⅲ/ Euro Ⅳ |
| Manufacturer | DCEC Cummins |
Cummins engine ISLe325-30 technique specification |
|
|---|---|
| Bore*stroke | 114 * 144.5mm |
| Intake method | Turbochager & Intercooled |
| Fuel systeme | Cummins CCR |
| Fuel Consumption | 195g/kW.h @ Rated Power |
| Compression Ratio | 16.6 : 1 |
| Governor Type | Electronic Control Modele ECM |
| Adaptation range | Suitable for Trucks |
| Starting System | Electrical Starting Motor 24V/750A |
| Lowest Starting Temp .(with/without auxiliary system) | -10℃/-25℃ |
Cummins diesel engine ISLe325-30 trade information |
|
| Warranty time | 1year or 1500h |
| Engine Size(L*W*H): | 1149mm*799mm*1022mm |
| Packing size | 1300mm*850mm*1100mm |
| Weight net | 738 Kg |
| Weight gross | 780 Kg |
| Delivary port | Shanghai |
| Marine delivary boat | Masket/zhongyuan |
| Delivary time | 15 working days |
| Trade termes | FOB/CIF/CNF |
| Payement termes | T/T，L/C |
| Mode of transport | Sea transportation or air transportation |
Using Genuine Cummins parts makes all the difference. Genuine Cummins new and ReCon® parts are guaranteed to fit right and work right.
Extend the life of your equipment by choosing the best parts for your Cummins engine or generator.
Backed by Cummins with a 100% comprehensive warranty on parts, labour and progressive damage nothing works better or lasts longer.
The difference between Genuine Cummins parts and non-genuine parts isn’t always the easiest to detect.
Precision design, state-of-the-art manufacturing and rigorous testing ensures that Genuine Cummins parts perform at Cummins factory-specified levels of durability, reliability and performance.
Don't see the parts you are looking for? Click Here and we can get it for you or send you a quote from the thousands of commonly used Cummins parts.
