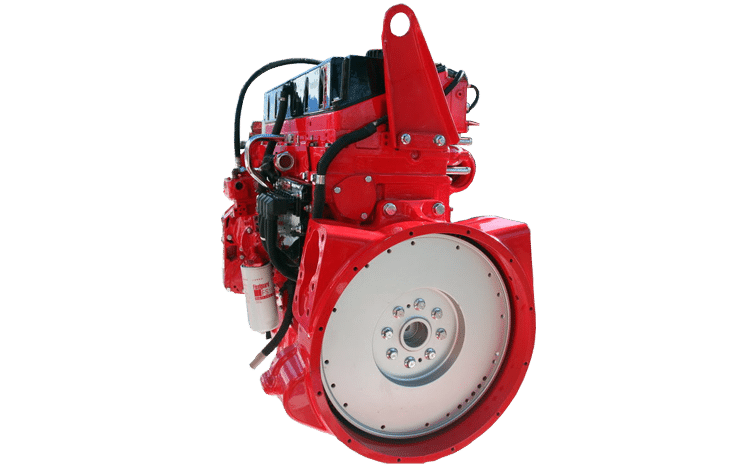

Engine model ISMe405
Engine type 4 stroke, 6 cylinders in line
Displacement 10.8 L
Rated Power 298kW (405 HP) @ 1900rpm
Peak Torque 2000 N.m @ 1200 rpm
Emission Standard Euro Ⅳ Ⅴ
Use for Commercial Vehicle
Cummins logo
Cummins logo
  • Product advantages
  • Cummins parts

Cummins engine ISMe405 technique specification

Bore*stroke 125 * 147mm
Intake method Turbochager & Intercooled
Fuel systeme Direct Injection Pump
Governor Type Electronic Control
Compression Ratio 16.2 : 1
Cooling method Fluid Cooling
Lowest Starting Temp .(with/without auxiliary system) -10℃/-25℃
Starting System Electrical Starting Motor
Adaptation range Perfect match for heavy trucks, special-purpose vehicles, bues

Cummins diesel engine ISMe405 trade information

Warranty time 1year or 1500h
Engine Size(L*W*H): 1335mm*825mm*1159mm
Packing size 1370mm*920mm*1500mm
Weight net 940 Kg
Weight gross 985 Kg
Delivary port Shanghai
Marine delivary boat Masket/zhongyuan
Delivary time 15 working days
Trade termes FOB/CIF/CNF
Payement termes T/T,L/C
Mode of transport Sea transportation or air transportation

Original/genuine parts

Xi'an Cummins parts | P/N: 3073592

Valve Crosshead | P/N: 3073592

Genuine Cummins Parts | 4060815

Flywheel | P/N: 4060815

Xi'an Cummins engine parts | P/N: 4003905

Rocker Lever | P/N: 4003905

Cummins diesel parts | P/N: 3083849

Fuel injector | P/N: 3083849

Cummins parts guarantee of engine durability and reliability

Cummins parts
Cummins parts
Cummins parts

Quality Manufacturing Being Trusted Widely

Xi'an Cummins production plant

Quality Manufacturing Being Trusted Widely

As a global model factory of Cummins, XCEC builds up excellent capability by using state-of-art manufacturing equipment, standard processes, sophisticated testing devices and strict quality control procedures.

Moreover, XCEC shares excellent quality parts globally to maintain consistent quality.

It strives to maintain the pure bloodline of the products through strict processes and therefore won trusts of millions of users with reliable quality.

The Engine is regarded as the most trusted heavy duty engine by truck drivers. The red “heart" embodies hundred-year history of Cummins’ quality, and also will witness a promising future of manufacturing in China More reliable, more economical and more powerful.

This is the excellent quality of Cummins ISM 11 flagship power from the U.S., as you expect.

Precision design, state-of-the-art manufacturing and rigorous testing ensures that Genuine Cummins parts perform at Cummins factory-specified levels of durability, reliability and performance.

Don't see the parts you are looking for? Click Here and we can get it for you or send you a quote from the thousands of commonly used Cummins parts.
