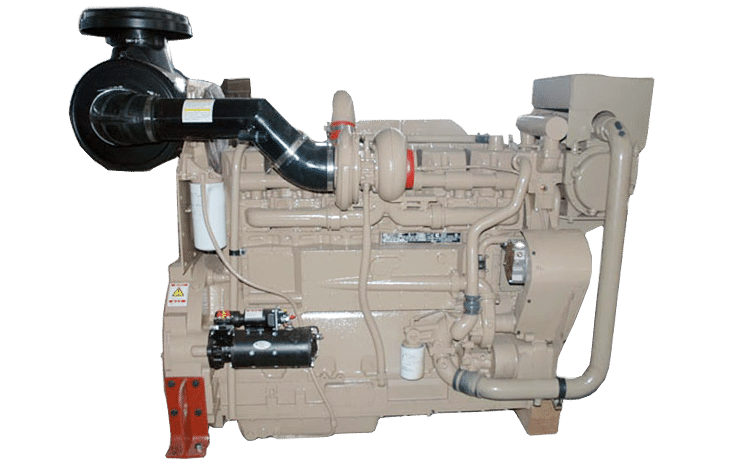

Engine model KTA19-P500
Engine type 4 stroke, 6 cylinders in line
Displacement 18.9 L
Rated Power 373kW (500 HP) @ 1500/1800rpm
Peak Torque 1978 N.m @ 1757 rpm
Emission Standard Euro Ⅱ
Use for Pump power unit
Cummins logo
Cummins logo
  • Product advantages
  • Cummins parts

Cummins engine KTA19-P500 technique specification

Bore*stroke 159 * 159mm
Intake method Turbochager & Intercooled
Fuel systeme PT Pump Direct Injection
Cooling method Fluid Cooling
Governor Type Mechanical Control
Compression Ratio 13.9: 1
Fuel Consumption 210 g/Kw.h
Ignition Order 1-5-3-6-2-4
Starting System Electrical Starting Motor 12V/24V
Lowest Starting Temp .(with/without auxiliary system) -12℃
Adaptation range Pump power unit, Power generation

Cummins diesel engine KTA19-P500 trade information

Warranty time 1year or 1500h
Engine Size(L*W*H): 2151mm*966mm*1704mm
Packing size 2300mm*1700mm*2000mm
Weight net 1733 Kg
Weight gross 2073 Kg
Delivary port Shanghai
Marine delivary boat Masket/zhongyuan
Delivary time 15 working days
Trade termes FOB/CIF/CNF
Payement termes T/T,L/C
Mode of transport Sea transportation or air transportation

Original/genuine parts

CCEC Cummins parts | P/N: 4063844

Fuel Injection Pump | P/N: 4063844

Genuine Cummins Parts | 5536735

Oil Cooler Cover | P/N: 5536735

CCEC Cummins engine parts | P/N: 3645841

Expansion Plug| P/N: 3645841

Cummins diesel parts | P/N: 175755-90

piston pin retainer | P/N: 175755-90

Cummins parts guarantee of engine durability and reliability

Cummins parts
Cummins parts
Cummins parts

Professional configuration, best quality

CCEC Cummins production plant

Professional configuration, best quality

Lubrication system: All moving parts are forced to lubricate; the large-capacity gear pump provides pressure lubricating oil to lubricate the bearings and cool the piston; the oil cooler, full-flow filter, and bypass filter maintain good oil condition.

Fuel system: Cummins PT fuel system, optimized combustion, surging power; STC distributed timing system to ensure better combustion in all working conditions; low-pressure fuel supply system, equipped with fuel one-way circuit, safe and reliable.

Cooling system: Forced water cooling with geared centrifugal water pump, large flow channel design, good cooling effect; spin-on water filter and special DCA additives can effectively prevent rust and cavitation, control the acidity of the coolant and remove impurities.

Intake and exhaust system: efficient Holset exhaust gas supercharger to further improve combustion; pressure pulse exhaust pipe can make full use of exhaust gas energy and improve engine efficiency; air-to-air cooling technology ensures better fuel economy and emissions.

Reliable Quality and High Dispatching Ratio: State-of-the-art manufacturing and rigorous testing ensures that Genuine Cummins parts perform at Cummins factory-specified levels of durability, reliability and performance, QSK19 series engines are widely used in construction machinery, heavy-duty vehicles, power generation, ship power and other fields; forming strategic partnerships with important customers.
