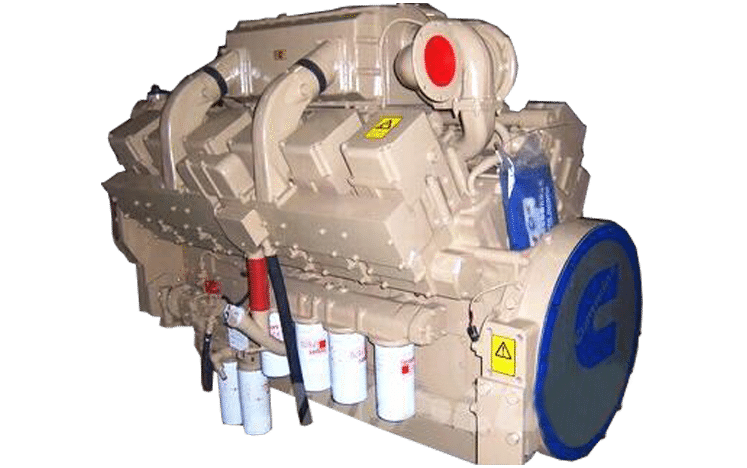

Engine model KTA38-P1100
Engine type 4 stroke,12 cylinders in V type
Displacement 37.7 L
Rated Power 821kW (1100 HP) @ 1500rpm
Peak Torque 4354 N.m @ 1500 rpm
Emission Standard Euro Ⅱ
Use for Pump power unit
Cummins logo
Cummins logo
  • Product advantages
  • Cummins parts

Cummins engine KTA38-P1100 technique specification

Bore*stroke 159 * 159mm
Intake method Turbochager & Intercooled
Fuel systeme PT Pump-STC
Governor Type Mechanical Control
Compression Ratio 13.9 : 1
Maximum No Load Speed 209 g/kW.h @ 686 HP
Fuel Consumption @ Rated Output 214 g/kW.h @ 1100 HP
Starting System Electrical Starting Motor 12V/24V
Adaptation range Mining machinery, pump power

Cummins diesel engine KTA38-P1100 trade information

Warranty time 1year or 1500h
Engine Size(L*W*H): 2151mm*966mm*1704mm
Packing size 2300mm*1700mm*2000mm
Weight net 3719 Kg
Weight gross 4016 Kg
Delivary port Shanghai
Marine delivary boat Masket/zhongyuan
Delivary time 15 working days
Trade termes FOB/CIF/CNF
Payement termes T/T,L/C
Mode of transport Sea transportation or air transportation

Original/genuine parts

CCEC Cummins parts | P/N: 4951396

Fuel pump | P/N: 4951396

Genuine Cummins Parts | 3017993

Stop solenoid valve | P/N: 3017993

CCEC Cummins engine parts | P/N: 3017670

Fan Idler | P/N: 3017670

Cummins diesel parts | P/N: 3408326

24V Actuator | P/N: 3408326

Cummins parts guarantee of engine durability and reliability

Cummins parts
Cummins parts
Cummins parts

Professional configuration, best quality

CCEC Cummins production plant

Professional configuration, best quality

Lubrication system: All moving parts are forced to lubricate; the large-capacity gear pump provides pressure lubricating oil to lubricate the bearings and cool the piston; the oil cooler, full-flow filter, and bypass filter maintain good oil condition.

Fuel system: Cummins PT fuel system, optimized combustion, surging power; STC distributed timing system to ensure better combustion in all working conditions; low-pressure fuel supply system, equipped with fuel one-way circuit, safe and reliable.

Cooling system: Forced water cooling with geared centrifugal water pump, large flow channel design, good cooling effect; spin-on water filter and special DCA additives can effectively prevent rust and cavitation, control the acidity of the coolant and remove impurities.

Intake and exhaust system: efficient Holset exhaust gas supercharger to further improve combustion; pressure pulse exhaust pipe can make full use of exhaust gas energy and improve engine efficiency; air-to-air cooling technology ensures better fuel economy and emissions.

Reliable Quality and High Dispatching Ratio: State-of-the-art manufacturing and rigorous testing ensures that Genuine Cummins parts perform at Cummins factory-specified levels of durability, reliability and performance, Key assemblies and parts are imported from the US, including cylinder block, cylinder head, piston, camshaft and connecting rod mechanism.
