Engine model KTA38-P980
Engine type 4 stroke,12 cylinders in V type
Displacement 37.7 L
Rated Power 731kW (980 HP) @ 1500rpm
Peak Torque 3947 N.m @ 1500 rpm
Emission Standard Euro Ⅱ
Use for Pump power unit
Cummins logo
Cummins logo
  • Product advantages
  • Cummins parts

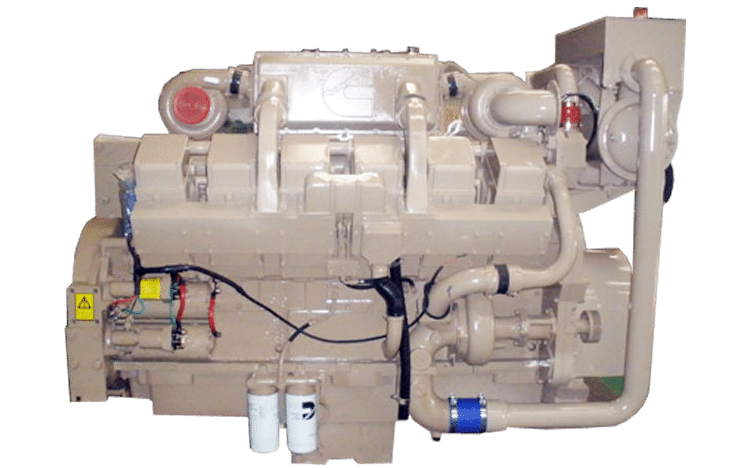

Cummins engine KTA38-P980 technique specification

Bore*stroke 159 * 159mm
Intake method Turbochager & Intercooled
Fuel systeme PT Pump-STC
Governor Type Mechanical Control
Compression Ratio 13.9 : 1
Maximum No Load Speed 203 g/kW.h @ 566 HP
Fuel Consumption @ Rated Output 291 g/kW.h @ 980 HP
Starting System Electrical Starting Motor 12V/24V
Adaptation range Mining machinery, pump power

Cummins diesel engine KTA38-P980 trade information

Warranty time 1year or 1500h
Engine Size(L*W*H): 2151mm*966mm*1704mm
Packing size 2300mm*1700mm*2000mm
Weight net 3719 Kg
Weight gross 4016 Kg
Delivary port Shanghai
Marine delivary boat Masket/zhongyuan
Delivary time 15 working days
Trade termes FOB/CIF/CNF
Payement termes T/T,L/C
Mode of transport Sea transportation or air transportation

Original/genuine parts

CCEC Cummins parts | P/N: 4951396

Fuel pump | P/N: 4951396

Genuine Cummins Parts | 3017993

Stop solenoid valve | P/N: 3017993

CCEC Cummins engine parts | P/N: 3017670

Fan Idler | P/N: 3017670

Cummins diesel parts | P/N: 3408326

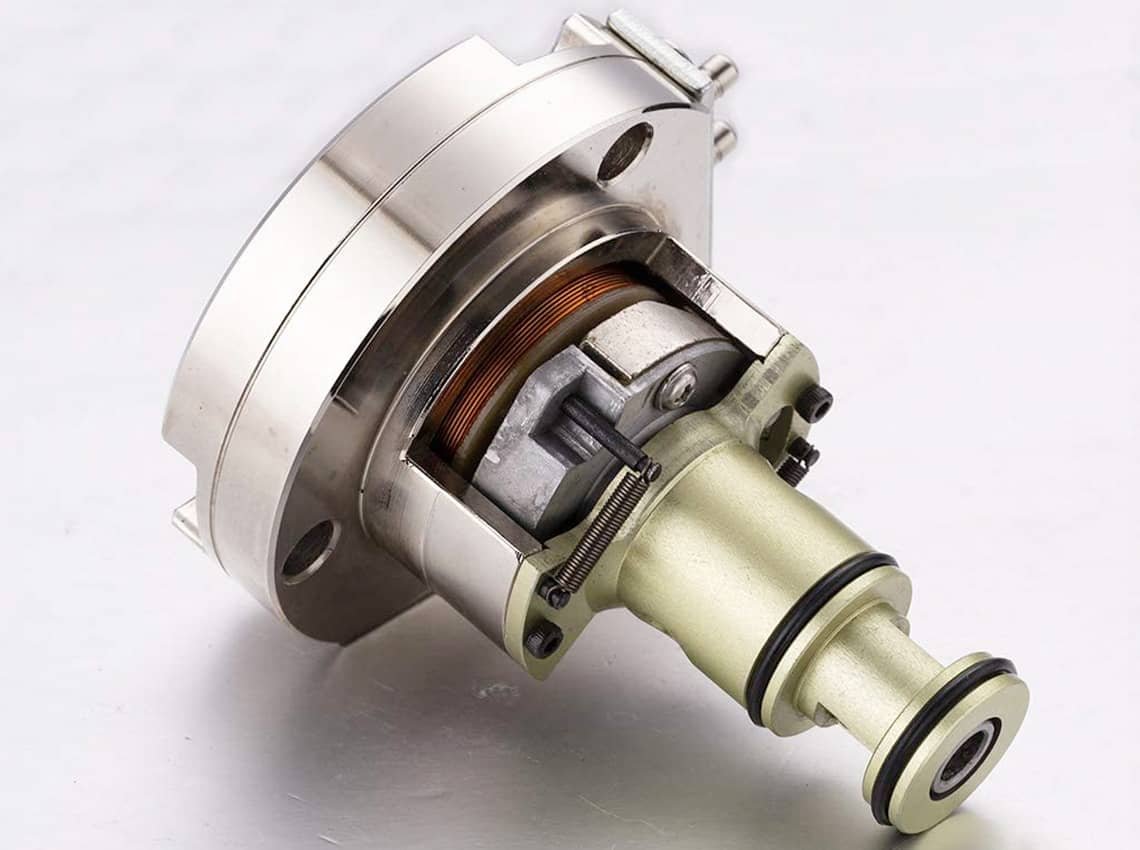

24V Actuator | P/N: 3408326

Cummins parts guarantee of engine durability and reliability

Cummins parts
Cummins parts
Cummins parts

Professional configuration, best quality

CCEC Cummins production plant

Professional configuration, best quality

Lubrication system: All moving parts are forced to lubricate; the large-capacity gear pump provides pressure lubricating oil to lubricate the bearings and cool the piston; the oil cooler, full-flow filter, and bypass filter maintain good oil condition.

Fuel system: Cummins PT fuel system, optimized combustion, surging power; STC distributed timing system to ensure better combustion in all working conditions; low-pressure fuel supply system, equipped with fuel one-way circuit, safe and reliable.

Cooling system: Forced water cooling with geared centrifugal water pump, large flow channel design, good cooling effect; spin-on water filter and special DCA additives can effectively prevent rust and cavitation, control the acidity of the coolant and remove impurities.

Intake and exhaust system: efficient Holset exhaust gas supercharger to further improve combustion; pressure pulse exhaust pipe can make full use of exhaust gas energy and improve engine efficiency; air-to-air cooling technology ensures better fuel economy and emissions.

Reliable Quality and High Dispatching Ratio: State-of-the-art manufacturing and rigorous testing ensures that Genuine Cummins parts perform at Cummins factory-specified levels of durability, reliability and performance, Key assemblies and parts are imported from the US, including cylinder block, cylinder head, piston, camshaft and connecting rod mechanism.

Don't see the parts you are looking for? Click Here and we can get it for you or send you a quote from the thousands of commonly used Cummins parts.
