| Engine model | KTA50-G12 |
| Engine type | 4 Cycle , 60° Vee , 16 Cylind |
| Displacement | 3067 in3 / 50.3 L |
| Rated Power | 1256kW (1582.6 Kva) @ 1800 rpm |
| Compression Ratio | 13.9:1 |
| Frequency | 60Hz |
| Alternator | Stamford / Marathon |
Cummins G-Drive KTA50-G12 technique specification |
|
|---|---|
| Bore*stroke | 159 mm * 159 mm / 6.25 in * 6.25 in |
| Aspiration | Turbocharged & Low Temp. Aftercooled |
| Fuel system | Cummins direct Injection PT Fuel Injection Pump |
| Moment of Inertia of Rotating Components | 301 lbm.ft2 / 12.7 kg.m2 (with FW 6009 Flywheel) |
| Maximum Bending Moment at Rear Face of Block | 4500 lb.ft / 6101 N.m |
| Air to Fuel Ratio (air : fuel) | 31.4 : 1 |
| Piston Speed (ft/min / m s) | 1875 / 9.5 |
| Steady State Stability Band at Any Constant Load | 515 lbm.ft2 / 21.7 kg.m2 (with FW 6017 Flywheel) |
| Intake Air Flow (cfm / liter/s) | 3780 / 1784 |
| Exhaust Gas Flow (cfm / liter/s) | 8480 / 4002 |
| Manufacturer | CCEC Cummins |
Cummins G-Drive KTA50-G12 Trade information |
|
| Warranty time | 1year or 1500h |
| Engine Size(L*W*H): | 2594mm*1307mm*1646mm |
| Packing size | 2794mm*1507mm*1846mm |
| Weight net | 5361 Kg |
| Weight gross | 5663 Kg |
| Delivary port | Shanghai |
| Marine delivary boat | Masket/zhongyuan |
| Delivary time | 15 working days |
| Trade termes | FOB/CIF/CNF |
| Payement termes | T/T，L/C |
| Mode of transport | Sea transportation or air transportation |
Advanced design and sophisticated manufacturing, adapt to a variety of harsh working conditions, high strength, strong ability to work under heavy loads.
The cylinder block and cylinder head adopt an integrated design to prevent the occurrence of engine water and oil leakage. The parts are about 40% less than other similar engines, and the failure rate is greatly reduced.
Using forged steel camshaft and crankshaft, high-strength cylinder block design, multiple parts cast on the cylinder block, high rigidity, high pressure resistance, good reliability, and longer service life.
The cylinder bore adopts a platform mesh honing design, which is perfect The geometric structure effectively prevents oil leakage, and adopts advanced technologies such as new piston ring components and gasket crimping molding to reduce oil loss.

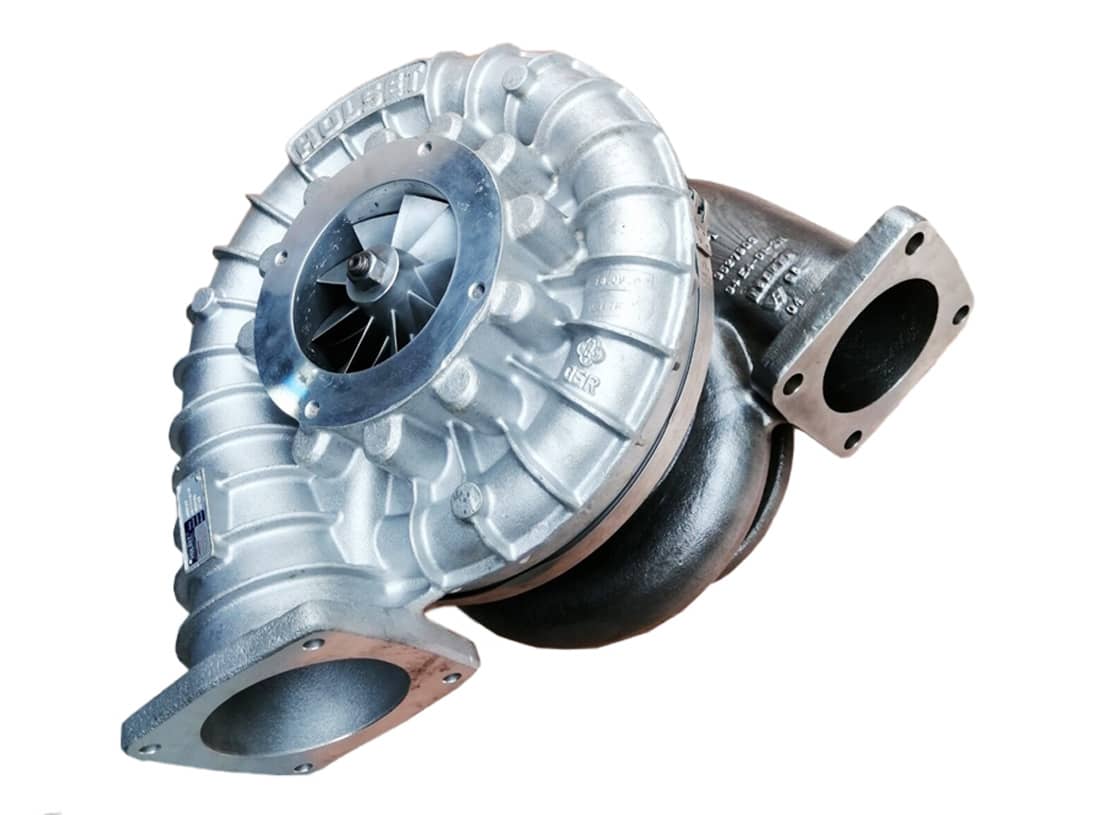

Adopt Holset supercharger with integral wastegate valve, low-speed response and strong power, three-stage fuel filter to ensure a balanced level of particulate dispersion, protect the main components of the fuel system, and maximize the life of the engine.
Electronic control system can intelligently switch the working mode according to the environment and operating conditions, and has the functions of self-diagnosis, alarm and remote monitoring.
