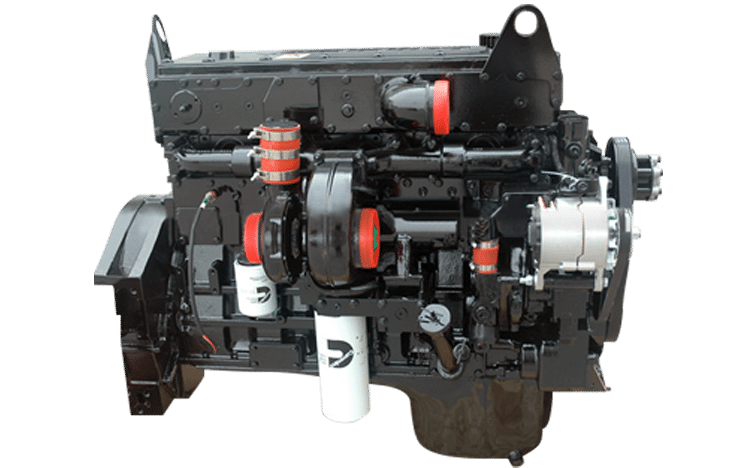

Engine model M11-C300
Engine type 4 stroke,6 cylinders in line
Displacement 11 L
Rated Power 224kW (300 HP) @ 2100rpm
Peak Torque 1424 N.m @ 1300 rpm
Emission Standard Tier Ⅱ
Use for Construction Machinery
Cummins logo
Cummins logo
  • Product advantages
  • Cummins parts

Cummins engine M11-C300 technique specification

Bore*stroke 125 * 147mm
Intake method Turbochager & Intercooled
Fuel systeme PT Pump, STC
Governor Type Mechanical Control
Compression Ratio 16.1 : 1
Fuel Consumption 64.4 L/hr
Starting System Electrical Starting Motor
Coolant capacity 12.9 L
Manufacturer CCEC Cummins

Cummins diesel engine M11-C300 trade information

Warranty time 1year or 1500h
Engine Size(L*W*H): 1450mm*950mm*1010mm
Packing size 1650mm*1150mm*1300mm
Weight net 940 Kg
Weight gross 980 Kg
Delivary port Shanghai
Marine delivary boat Masket/zhongyuan
Delivary time 15 working days
Trade termes FOB/CIF/CNF
Payement termes T/T,L/C
Mode of transport Sea transportation or air transportation

Original/genuine parts

Fleetguard parts | P/N: 3329289

Fuel Fillter | P/N: 3329289

CCEC Cummins engine parts | P/N: 4024808

Fuel Shutoff Solenoid | P/N: 4024808

Genuine Cummins Parts | 4060393

Cylinder Block | P/N: 4060393

Cummins diesel parts | P/N: 3800471

Turbocharger | P/N: 3800471

Cummins parts guarantee of engine durability and reliability

Cummins parts
Cummins parts
Cummins parts

Professional configuration, best quality

CCEC Cummins production plant

Professional configuration, best quality

Lubrication system: All moving parts are forced to lubricate; the large-capacity gear pump provides pressure lubricating oil to lubricate the bearings and cool the piston; the oil cooler, full-flow filter, and bypass filter maintain good oil condition.

Fuel system: Cummins PT fuel system, optimized combustion, surging power; STC distributed timing system to ensure better combustion in all working conditions; low-pressure fuel supply system, equipped with fuel one-way circuit, safe and reliable.

Cooling system: Forced water cooling with geared centrifugal water pump, large flow channel design, good cooling effect; spin-on water filter and special DCA additives can effectively prevent rust and cavitation, control the acidity of the coolant and remove impurities.

Intake and exhaust system: efficient Holset exhaust gas supercharger to further improve combustion; pressure pulse exhaust pipe can make full use of exhaust gas energy and improve engine efficiency; air-to-air cooling technology ensures better fuel economy and emissions.

Reliable Quality and High Dispatching Ratio: State-of-the-art manufacturing and rigorous testing ensures that Genuine Cummins parts perform at Cummins factory-specified levels of durability, reliability and performance, Key assemblies and parts are imported from the US, including cylinder block, cylinder head, piston, camshaft and connecting rod mechanism.

Don't see the parts you are looking for? Click Here and we can get it for you or send you a quote from the thousands of commonly used Cummins parts.
