MTU’s Series 2000 Common Rail engines offer high performance power for your vessel. Combining better fuel efficiency and lower emissions, Series 2000 CR marine engines provide the power your vessel needs for commercial, defense or leisure operation. Available from 536 – 3600 bhp.
Lifecycle Costs
Service Network
Reliability
Technology
Product Range
The mtu Series 2000 is a market leading engine series for the high-speed ferry market. The engines are light, compact and well suited for small engine rooms. The mtu 2000 Series offers low fuel consumption over the entire performance range. The mtu Series 2000 common rail engines are rated for fast-moving vessels with high load factors and intermittent load factors. Due to their compact and powerful design, duty engines are particularly suited for high-speed ferries, SAR, patrol vessels, windmill service and CTV vessels (crew vessels). mtu Series 2000 engines are rated for vessels with unrestricted operations.
Power, fuel efficiency and reliability - three characteristics that mean one thing above all: perfect performance in every situation. Our mtu 2000 series has proven itself time and again over six generations. The power spectrum ranges from 720 to 1,939 kW (966 – 2,600 bhp).
With the latest generation mtu Series 2000 we go one step further: essential engine components have been optimised, intelligently combined and perfectly matched.

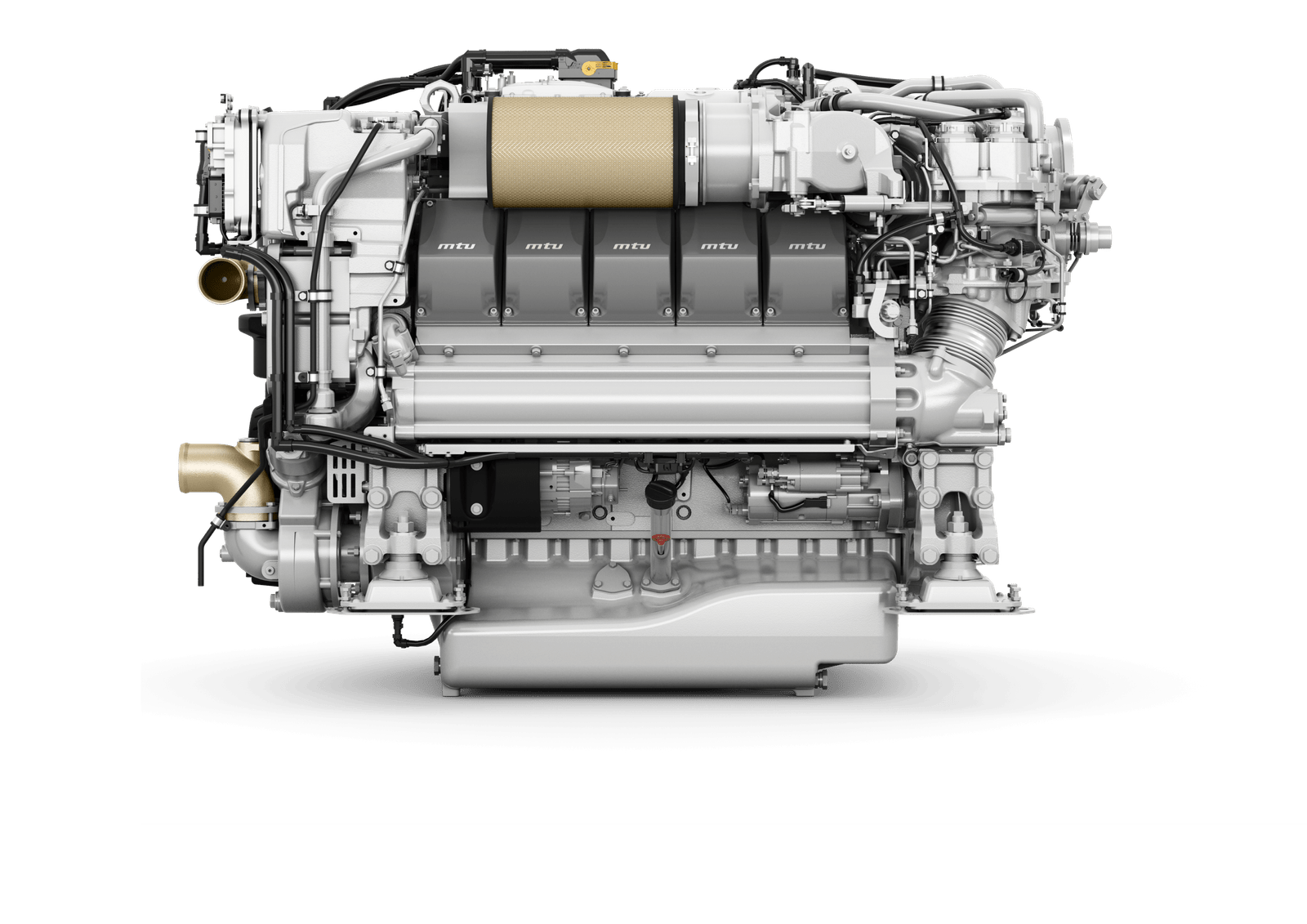

Experience unmatched performance with the latest evolution of our Series 2000: the new 12V 2000 96Z. Built upon a legacy of excellence, this powerhouse sets a new benchmark in marine and industrial propulsion, delivering an impressive 1,634 kW / 2,222 mhp with enhanced power density and optimized installation space.
With a refined power-to-volume ratio and only slight adjustments in weight and dimensions compared to its predecessor, the 12V 2000 M96X, this engine delivers superior performance without compromise. The legendary acceleration behavior of the Series 2000 continues, now with cutting-edge turbocharging technology for faster throttle response and exceptionally low smoke emissions.
As installation space is always restricted inside the engine room, the inhouse developed airless SCR (Selective Catalytic Reduction) solution from mtu is compact and maintenance friendly. Besides easily accessible doors for replacement of the SCR catalysts, the system also features an integrated mixing pipe and dosing units. The integrated mixing pipe and DEF (Diesel Exhaust Fluid) dosing allows the shipyard highly flexible pipework between the engine and the SCR box. Additional space to fit the exhaust gas aftertreatment is reduced to a bare minimum. Amonia slip is prevented under all operating conditions by a closed loop regulated control system.
When using EGR (Exhaust Gas Recirculation) technology, the quality of the fuel is essential. Fuel with more than 15 ppm sulfur will lead to the formation of sulfur acid in the EGR cooling process. Sulfur acid will cause substantial engine failures over time. As many vessels operate worldwide, especially in the offshore service and supply business, mtu evaluates SCR as the preferred solution to maintain reliability of our engines and the safety of your vessel and crew. SCR technology allows operation with lower fuel quality.
| Models | BHP | RPM | Displacement |
|---|---|---|---|
| 8V 2000 M72 | 996 | 2250 | 1093 |
| 10V 2000 M72 | 1207 | 2250 | 1361 |
| 12V 2000 M72 | 1448 | 2250 | 1635 |
| 16V 2000 M72 | 1931 | 2250 | 2179 |
| 12V 2000 M86 | 1700 | 2450 | 1635 |
| 16V 2000 M86 | 2186 | 2450 | 2179 |
| 8V 2000 M93 | 1200 | 2450 | 1093 |
| 8V 2000 M94 | 1250 | 2450 | 1093 |
| 10V 2000 M93 | 1502 | 2450 | 1361 |
| 10V 2000 M94 | 1600 | 1600 | 1093 |
| 12V 2000 M93 | 1800 | 2450 | 1635 |
| 112V 2000 M96 | 1800 | 2450 | 1635 |
| 12V 2000 M94 | 1920 | 2450 | 1635 |
