mtu marine genset portfolio includes both hybrid and marine diesel generators, ranging from 720 to 3210 kW for auxiliary and emergency power generations at high seas. With numerous options and additional features, including sound shiels, specialized mountings and control panels, marine gensets can be tailored to the individual needs and requirements of customers.
Lifecycle Costs
Service Network
Reliability
Technology
Product Range
Turbocharging system
Sequential high efficiency turbocharging system for optimized full and part load operation
Engine automation and control
mtu in-house developed engine attached safety and control system mtu NautIQ Genoline NG
Fuel system
Reliable electronic fuel injection system
Attached fuel oil pump with black start capability
Lube oil system
Attached lube oil pump and lube oil cooler
Cooling system
2-string high and low temperature cooling water systems with attached fresh and seawater pumps
Starting system
Pressurized air starter (turbine type)
Engine mounting
Resilient or shock mounting
Inclination
Designed for up to max. 45 ° rolling
Engine design
No power reduction required up to: Air temp. 45 °C, Seawater temp. 32 °C Continuous low load operation down to 5 % MCR
Compliance with emission regulations
Reliable energy solution, Based on proven technology
Performance, fuel efficiency and reliability – three qualities that add up to one thing: perfect power generation. Time and time again our diesel generator sets have proven themselves over six generations.

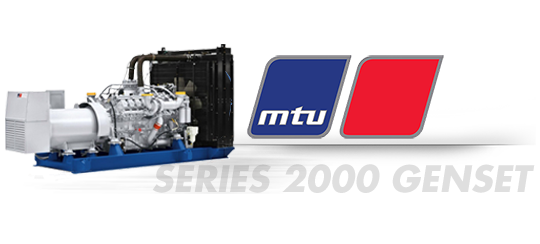

With the latest generation mtu Series 2000 we push the boundary even further: major engine components have been optimized, intelligently combined and perfectly adapted to one another.
Highest and fastest availability
Mission-critical systems require fast-start capability and one-step load acceptance. That’s why we have designed our systems to offer more available power within only a few seconds.

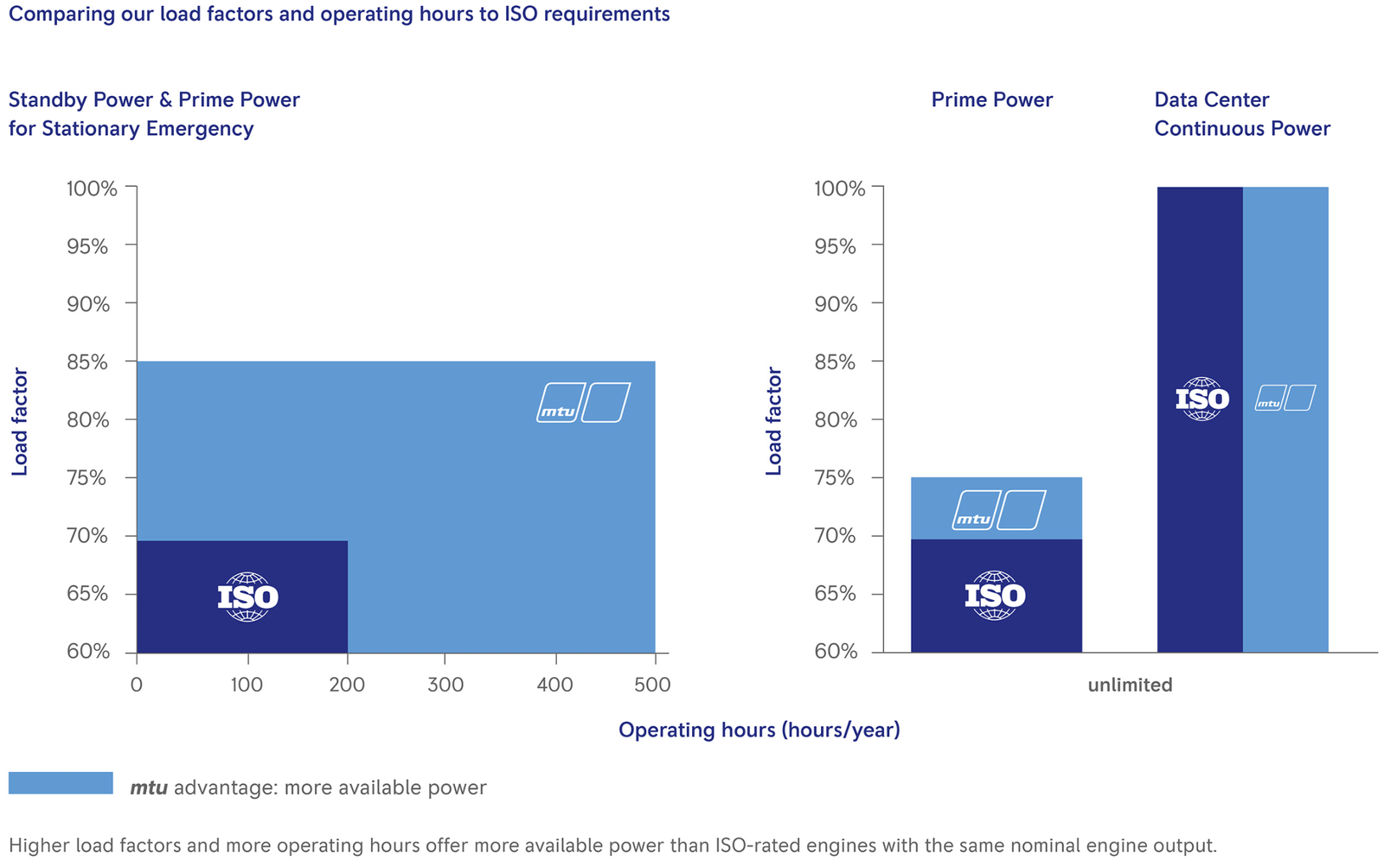

We offer industry leading load factors up to 100% for data centers, up to 85% for standby and up to 75% for prime power applications, exceeding the established industry norms.
With the recent introduction of the Data Center Continuous Rating our mtu Series 2000 products are also in compliance with the high requirements of the Uptime Institute’s Tier I-IV certification levels.
This way, we can deliver sophisticated power solutions with even more actual available power than other manufacturers with the same nominal power — whatever the circumstances.
Product Data

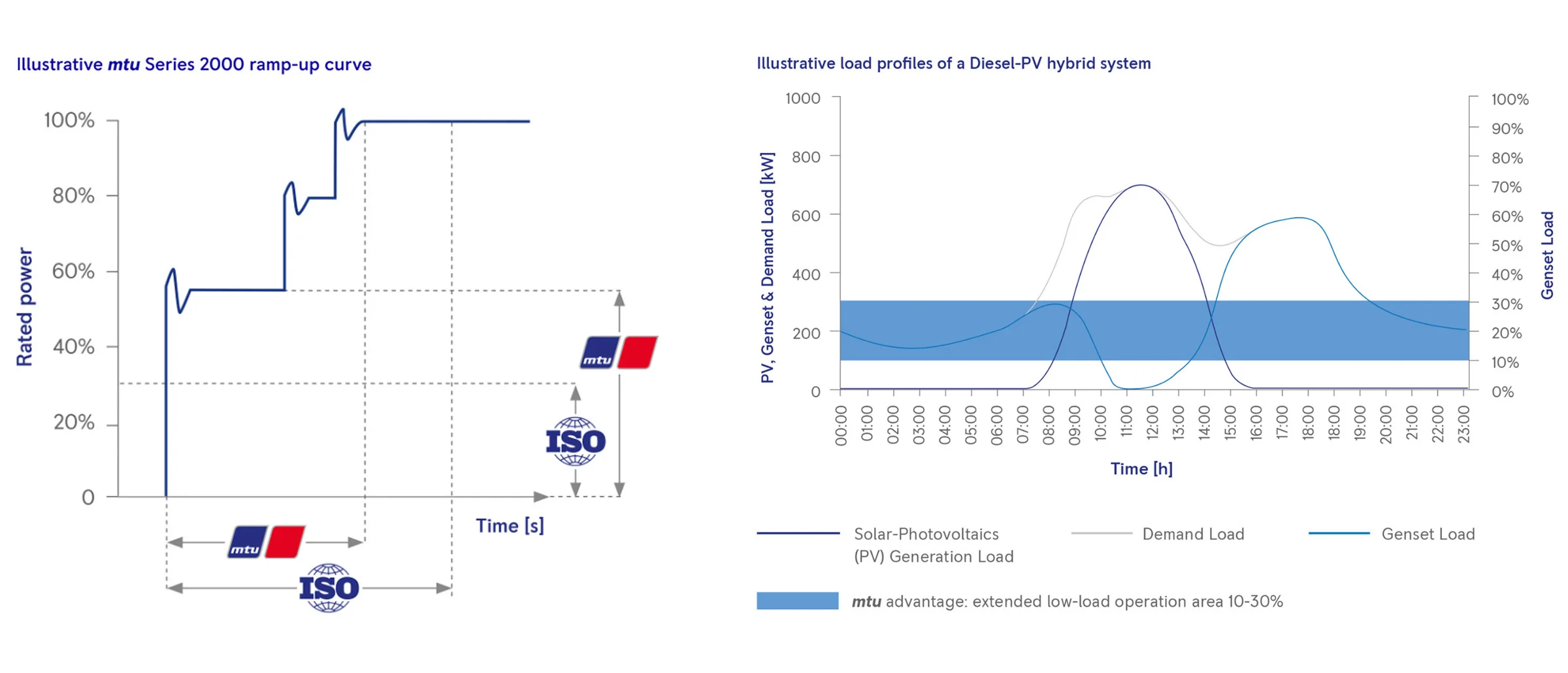

Excellent load acceptance
In case of an emergency, our mtu Series 2000 generator sets will provide their full electrical power within a few seconds – synchronized to the grid, to another power source or to other gensets in parallel.
They are capable of accepting extremly high load steps in the highest grade electricitry without major frequeency or voltage deviations.
Full flexibility
The mtu Series 2000 portfolio offers the best solutions for all kinds of applications and requirements.
With its outstanding low-load operation capability it guarantees superior fuel savings in combination with renewables to reduce CO2 emissions while still ensuring a stable grid. This makes the mtu Series 2000 gensets a perfect match for large solar-PV hybrid applications and microgrids.

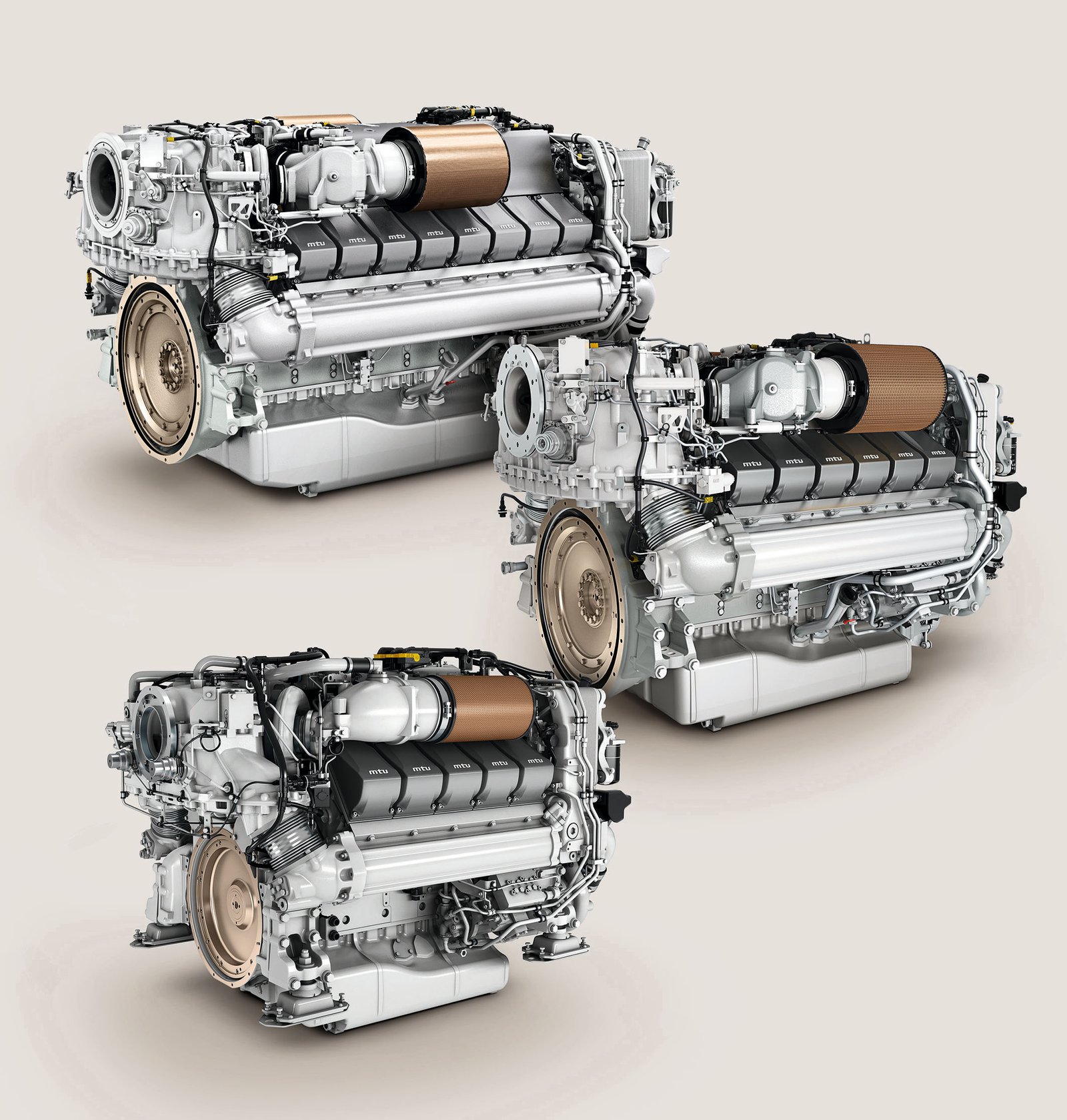

| Models | BHP | RPM | Displacement |
|---|---|---|---|
| 8V 2000 M61 | 536 | 1800 | 970 |
| 12V 2000 M61 | 805 | 1800 | 1458 |
| 16V 2000 M61 | 1073 | 1800 | 1943 |
| 12V 2000 M70 | 1057 | 2100 | 1458 |
| 16V 2000 M91 | 2001 | 2350 | 1943 |
| 8V 2000 M51A | 445 | 1500 | 1500 |
| 8V 2000 M51B | 536 | 1800 | 970 |
| 12V 2000 M51A | 668 | 1500 | 1458 |
| 12V 2000 M51B | 805 | 1800 | 1458 |
| 12V 2000 M96Z | 2222 | 2450 | 1706 |
