For vessels that need onboard power supply or backup power, MTU generators are a trusted name. MTU marine generators combine optimal weight, compact size and greater durability to provide better performance. Series 4000 marine generators are available from 1019 – 4043 bhp.
Providing mission-critical power for 25 years.
POWER RANGE 50 Hz: 1,600 – 4,000 kVA
Lifecycle Costs
Service Network
Reliability
Technology
Product Range
No matter how specific your energy supply requirements, our solutions always give you excellence that is fine-tuned to your exact needs.

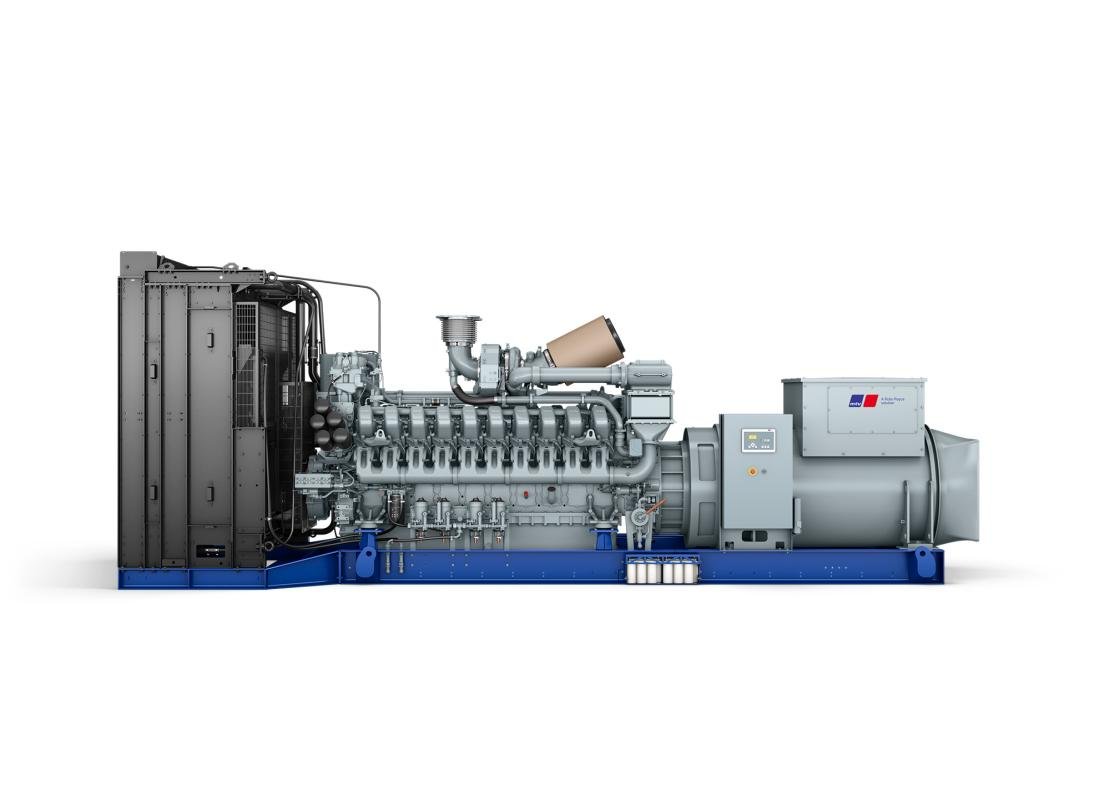

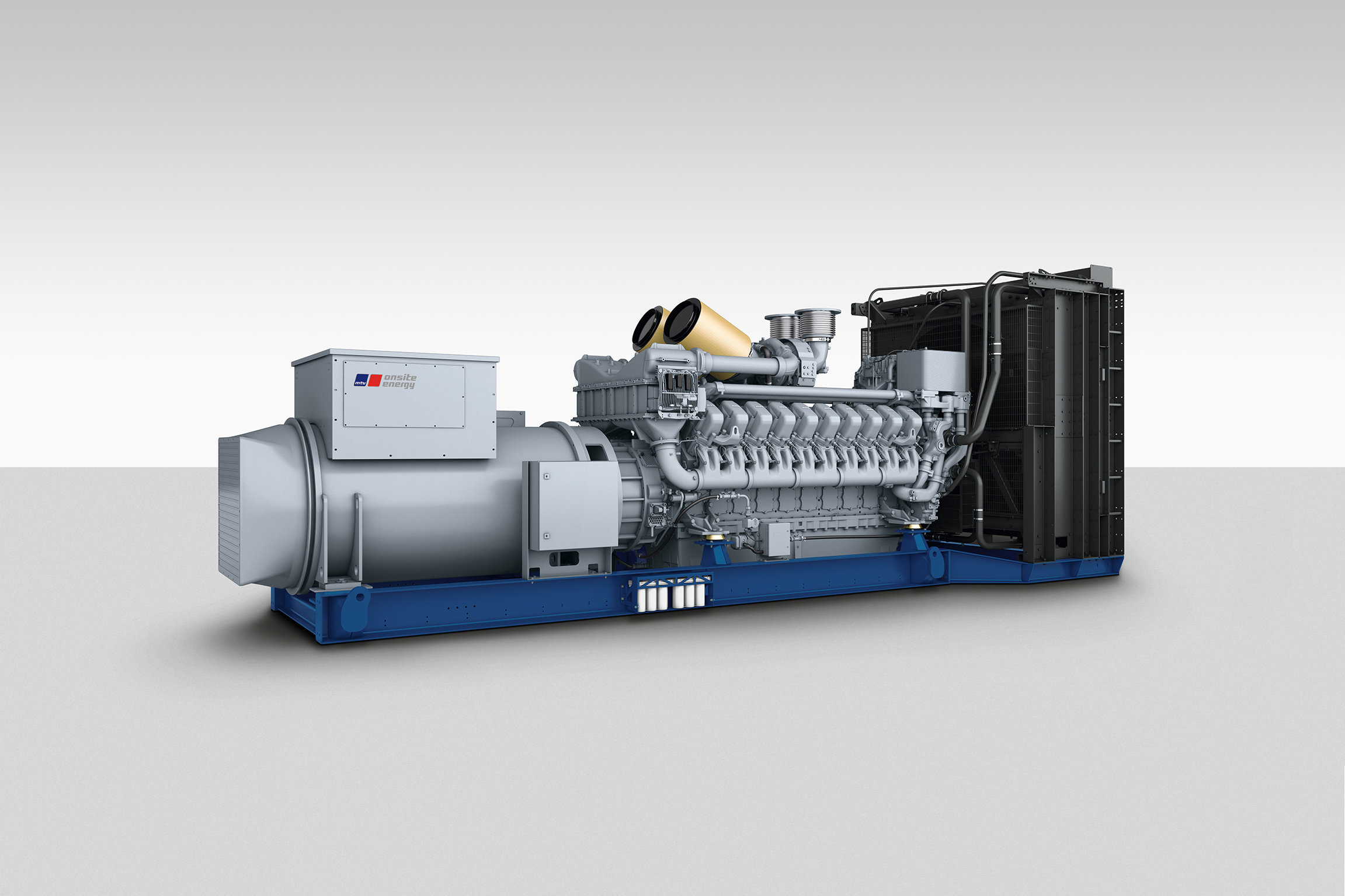

The mtu Series 4000 diesel generator sets have been doing just that for over 25 years already – for data centers, hospitals, airports, industrial plants, residential buildings, public facilities, decentralized power stations, microgrids, hybrid solutions and numerous other applications around the world.
Available in six different power ratings, including standby, prime and continuous power, the mtu Series 4000 diesel gensets cover the range from 1,600 to 4,000 kVA (50 Hz) and from 1,125 to 3,250 kWe (60 Hz).
In addition to meeting highest quality, performance and fuel efficiency demands, they continue to define the benchmark for excellence with a variety of highly flexible, eco- and cost-efficient features, including low- and medium-voltage alternators, various controller configurations and mechanical or electrical radiators.
Superior power
Providing the highest power density with industry-leading load factors and up to 4,000 kVA (50Hz) and 3,250 kWe (60Hz)
Highest power quality
Extremely fast ramp up, best load acceptance and transient behavior with minimal frequency and voltage deviations
Maximum resilience
High performance even under hot ambient conditions and in high altitude environments
Full lifecycle services
Value Care Agreements and a wide range of service products to minimize downtime and reduce lifecycle costs
Clean technology
A pioneer in developing environmentally friendly engines and reducing emissions
Superior power

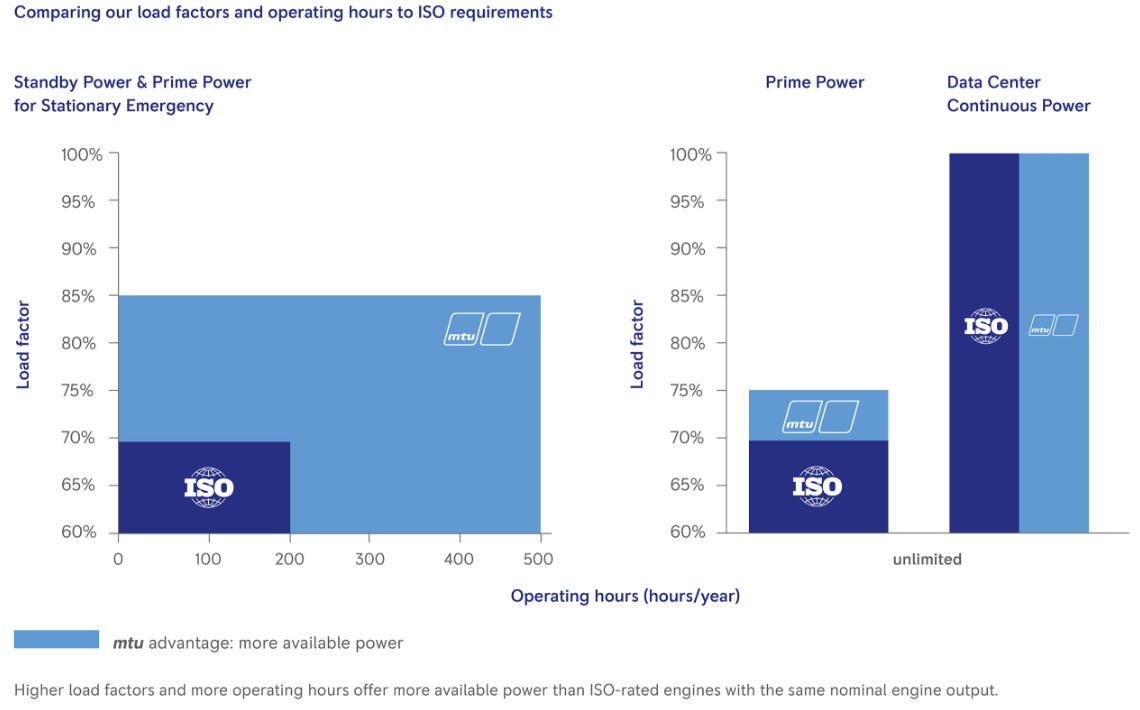

Mission-critical systems require fast-start capability and one-step load acceptance. That’s why we have designed our systems to offer more available power within only a few seconds. We offer industry leading load factors up to 100% for data centers and up to 85% for standby applications.
This exceeds the established industry norms such as ISO 8528-1 and allows even more operating hours for prime, emergency standby and data center applications.
This way, we can deliver sophisticated power solutions with even more actual available power than other manufacturers with the same nominal power — regardless of the circumstances.
Product Data
Highest power quality

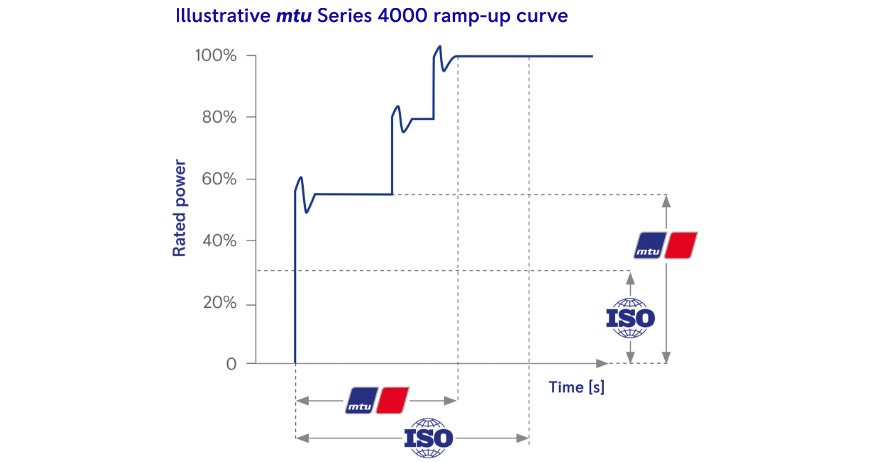

In case of an emergency, our mtu Series 4000 generator sets will provide their full electrical power within a few seconds – synchronized to the grid, to another power source or to other gensets in parallel.
They are capable of accepting extremely high load steps without having significant frequency and voltage deviations and sacrificing the power quality.
All mtu Series 4000 generator sets overachieve ISO 8528-5 performance class G2 and G3 and their respective performance and power quality requirements for dynamic loading application, removal and recovery time.
Even while keeping all performance limits for G3, mtu Series 4000 generator sets can accept more than 50% load in the first step and 100% block load acceptance according to NFPA 110 requirements is also possible.
Meeting your critical power, space, and individual requirements, mtu KineticPowerPacks present a viable alternative to traditional static UPS systems and guarantees uninterruptible power supply and conditioned high-quality power.
Utilizing advanced kinetic energy technology, these systems integrate a diesel engine with a kinetic energy accumulator via an electromagnetic clutch.
This configuration ensures reliable uninterruptible power supply without the need for batteries and provides cleaned and conditioned power to the consumers.
With UPS technology by mtu you`ll have a future-proof technology and peace of mind, that your consumers will be protected under any circumstances. Featuring the highest power density in the industry, efficient power conditioning, acompact footprint, and scalable solutions, mtu Kinetic PowerPacks offer acost-effective and robust solution for uninterrupted electrical power.
mtu Series 4000 gensets operate trouble-free with the highest power quality even under extreme conditions. They have proven their resilience again and again in continuous operation and with full loads in the heat, cold, and dust, as well as with frequent load changes. In addition to their well-known longevity, their low-maintenance construction and long service intervals also ensure cost-effectiveness. They minimize expenses and downtime and ensure that all equipment is fully operational again in record time.
| Models | BHP | RPM | Displacement |
|---|---|---|---|
| 8V 4000 M23F | 1019 | 1500 | 2331 |
| 8V 4000 M24S | 1200 | 1800 | 2325 |
| 12V 4000 M23F | 1529 | 1500 | 2331 |
| 12V 4000 M24S | 1600 | 1800 | 3490 |
| 12V 4000 M33F | 1770 | 1500 | 3491 |
| 16V 4000 M53B | 2950 | 1800 | 4210 |
| 16V 4000 M24S | 2260 | 1800 | 4656 |
| 16V 4000 M33S | 2789 | 1800 | 4656 |
| 16V 4000 M43S | 3004 | 1800 | 4656 |
| 20V 4000 M53B | 4043 | 1800 | 5263 |
