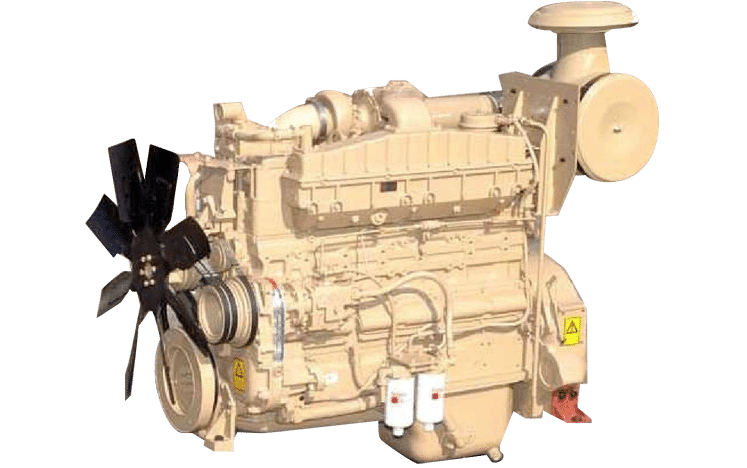

| Engine model | NTA855-C335 |
| Engine type | 4 stroke,6 cylinders in line |
| Displacement | 14 L |
| Rated Power | 250kW (335 HP) @ 2100rpm |
| Peak Torque | 1363 N.m @ 1500 rpm |
| Emission Standard | Euro II |
| Use for | Construction Machinery |
Cummins engine NTA855-C335 technique specification |
|
|---|---|
| Bore*stroke | 140 * 152mm |
| Intake method | Turbocharged Aftercooled |
| Fuel systeme | Direct Injection PT Pump, STC |
| Coolant capacity | Engine only 20.8 L |
| Compression Ratio | 14.5 : 1 |
| Governor Type | Mechanical Control |
| Fuel Consumption @ Rated Power | 213 g/kw.h @ 2100 rpm |
| Starting System | Electrical Starting Motor 24V/750A,12V/500A |
| Manufacturer | CCEC Cummins |
Cummins diesel engine NTA855-C335 trade information |
|
| Warranty time | 1year or 1500h |
| Engine Size(L*W*H): | 1115mm*716mm*1077mm |
| Packing size | 1315mm*916mm*1280m |
| Weight net | 1303 Kg |
| Weight gross | 1348 Kg |
| Delivary port | Shanghai |
| Marine delivary boat | Masket/zhongyuan |
| Delivary time | 15 working days |
| Trade termes | FOB/CIF/CNF |
| Payement termes | T/T，L/C |
| Mode of transport | Sea transportation or air transportation |
Lubrication system: All moving parts are forced to lubricate; the large-capacity gear pump provides pressure lubricating oil to lubricate the bearings and cool the piston; the oil cooler, full-flow filter, and bypass filter maintain good oil condition.
Fuel system: Cummins PT fuel system, optimized combustion, surging power; STC distributed timing system to ensure better combustion in all working conditions; low-pressure fuel supply system, equipped with fuel one-way circuit, safe and reliable.
Cooling system: Forced water cooling with geared centrifugal water pump, large flow channel design, good cooling effect; spin-on water filter and special DCA additives can effectively prevent rust and cavitation, control the acidity of the coolant and remove impurities.
Intake and exhaust system: efficient Holset exhaust gas supercharger to further improve combustion; pressure pulse exhaust pipe can make full use of exhaust gas energy and improve engine efficiency; air-to-air cooling technology ensures better fuel economy and emissions.
Reliable Quality and High Dispatching Ratio: State-of-the-art manufacturing and rigorous testing ensures that Genuine Cummins parts perform at Cummins factory-specified levels of durability, reliability and performance, Key assemblies and parts are imported from the US, including cylinder block, cylinder head, piston, camshaft and connecting rod mechanism.
