Engine model NTA855-C360
Engine type 4 stroke,6 cylinders in line
Displacement 14 L
Rated Power 269kW (360 HP) @ 2100rpm
Peak Torque 1464 N.m @ 1400 rpm
Emission Standard Euro II
Use for Construction Machinery
Cummins logo
Cummins logo
  • Product advantages
  • Cummins parts

Cummins engine NTA855-C360 technique specification

Bore*stroke 140 * 152mm
Intake method Turbocharged Aftercooled
Fuel systeme Direct Injection PT Pump, STC
Coolant capacity Engine only 20.8 L
Compression Ratio 14.5 : 1
Governor Type Mechanical Control
Fuel Consumption @ Rated Power 213 g/kw.h @ 2100 rpm
Starting System Electrical Starting Motor 24V/750A,12V/500A
Manufacturer CCEC Cummins

Cummins diesel engine NTA855-C360 trade information

Warranty time 1year or 1500h
Engine Size(L*W*H): 1115mm*716mm*1077mm
Packing size 1315mm*916mm*1280m
Weight net 1303 Kg
Weight gross 1348 Kg
Delivary port Shanghai
Marine delivary boat Masket/zhongyuan
Delivary time 15 working days
Trade termes FOB/CIF/CNF
Payement termes T/T,L/C
Mode of transport Sea transportation or air transportation

Original/genuine parts

Cummins parts | P/N: 3325978

Water Manifold | P/N: 3325978

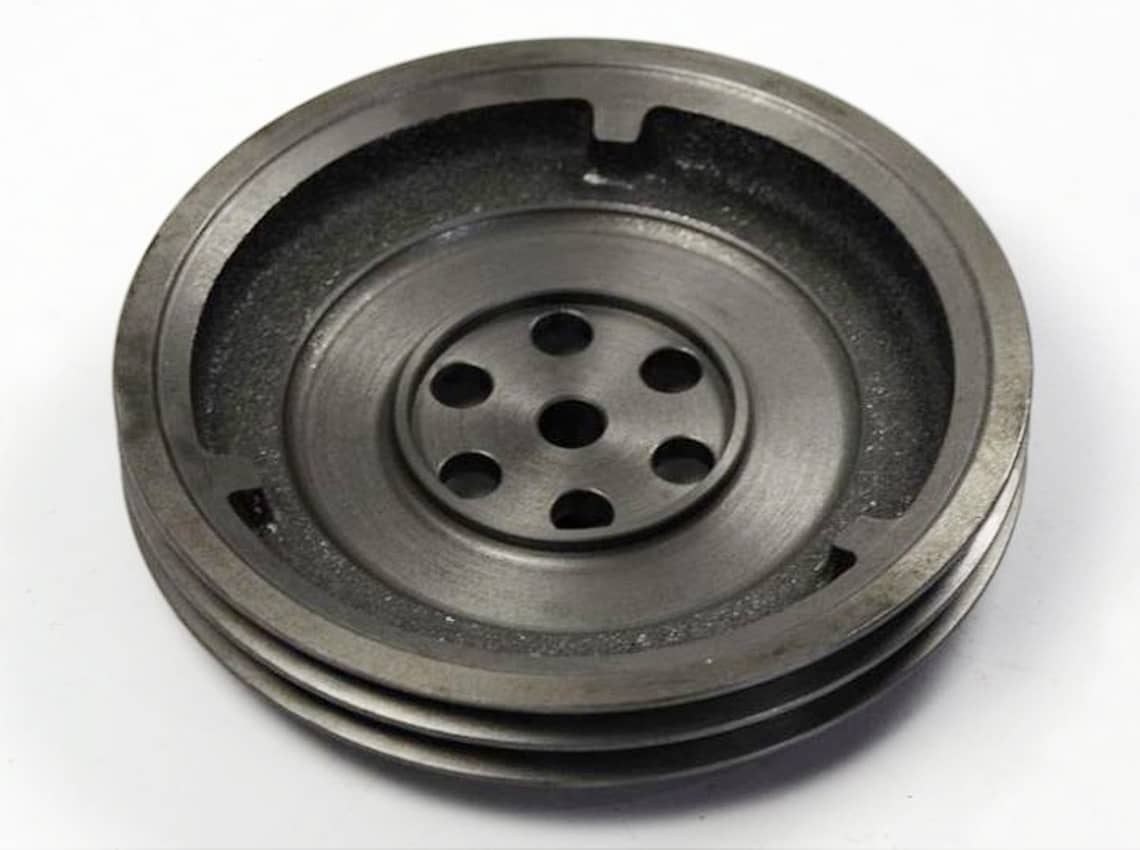

CCEC Cummins engine parts | P/N: 211918

Crankshaft Pulley | P/N: 211918

Genuine Cummins Parts | 3046420

Push Rod | P/N: 3046420

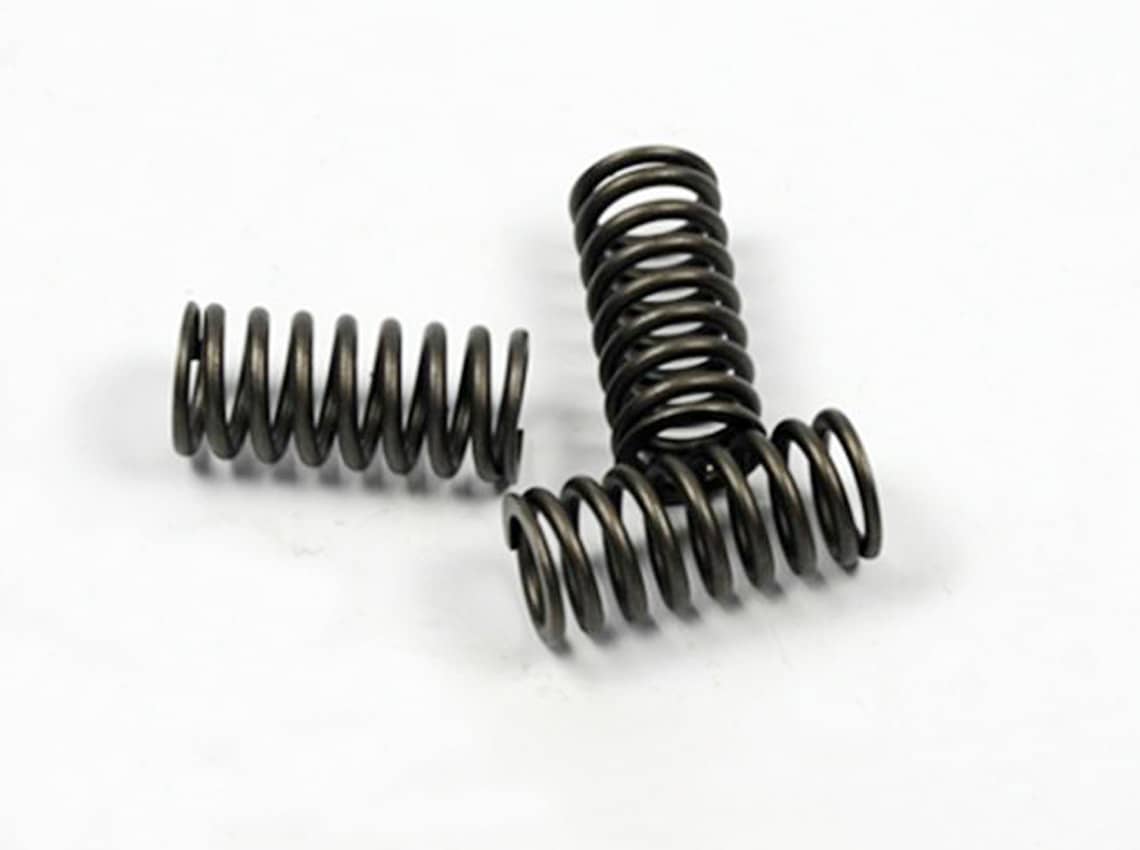

Cummins diesel parts | P/N: 211999

Valve Spring | P/N: 211999

Cummins parts guarantee of engine durability and reliability

Cummins parts
Cummins parts
Cummins parts

Professional configuration, best quality

CCEC Cummins production plant

Professional configuration, best quality

Lubrication system: All moving parts are forced to lubricate; the large-capacity gear pump provides pressure lubricating oil to lubricate the bearings and cool the piston; the oil cooler, full-flow filter, and bypass filter maintain good oil condition.

Fuel system: Cummins PT fuel system, optimized combustion, surging power; STC distributed timing system to ensure better combustion in all working conditions; low-pressure fuel supply system, equipped with fuel one-way circuit, safe and reliable.

Cooling system: Forced water cooling with geared centrifugal water pump, large flow channel design, good cooling effect; spin-on water filter and special DCA additives can effectively prevent rust and cavitation, control the acidity of the coolant and remove impurities.

Intake and exhaust system: efficient Holset exhaust gas supercharger to further improve combustion; pressure pulse exhaust pipe can make full use of exhaust gas energy and improve engine efficiency; air-to-air cooling technology ensures better fuel economy and emissions.

Reliable Quality and High Dispatching Ratio: State-of-the-art manufacturing and rigorous testing ensures that Genuine Cummins parts perform at Cummins factory-specified levels of durability, reliability and performance, Key assemblies and parts are imported from the US, including cylinder block, cylinder head, piston, camshaft and connecting rod mechanism.

Don't see the parts you are looking for? Click Here and we can get it for you or send you a quote from the thousands of commonly used Cummins parts.
