Engine model QSL8.9-C260
Engine type 4 stroke, 6 cylinders in line
Displacement 8.9 L
Rated Power 194kW (260 HP) @ 2200 rpm
Peak Torque 1080 N.m @ 1400 rpm
Emission Standard Tier / EU Ⅲ
Use for Construction Machinery
Cummins logo
Cummins logo
  • Product advantages
  • Cummins parts

Cummins engine QSL8.9-C260 technique specification

Bore*stroke 114 * 145mm
Intake method Turbocharged & Change Air Cooled
Fuel systeme Bosch Pump
Cooling Method Water Cooled
Governor Type Electrical Control
Compression Ratio 17.3 : 1
Fuel Consumption @ Rated Power 218g/KW.h @ 260 HP
Starting System Electrical Starting Motor 24V/750A,12V/500A
Manufacturer DCEC Cummins

Cummins diesel engine QSL8.9-C260 trade information

Warranty time 1year or 1500h
Engine Size(L*W*H): 1128mm*704mm*1166mm
Packing size 1468mm*1032mm*1660mm
Weight net 738 Kg
Weight gross 800 Kg
Delivary port Shanghai
Marine delivary boat Masket/zhongyuan
Delivary time 15 working days
Trade termes FOB/CIF/CNF
Payement termes T/T,L/C
Mode of transport Sea transportation or air transportation

Original/genuine parts

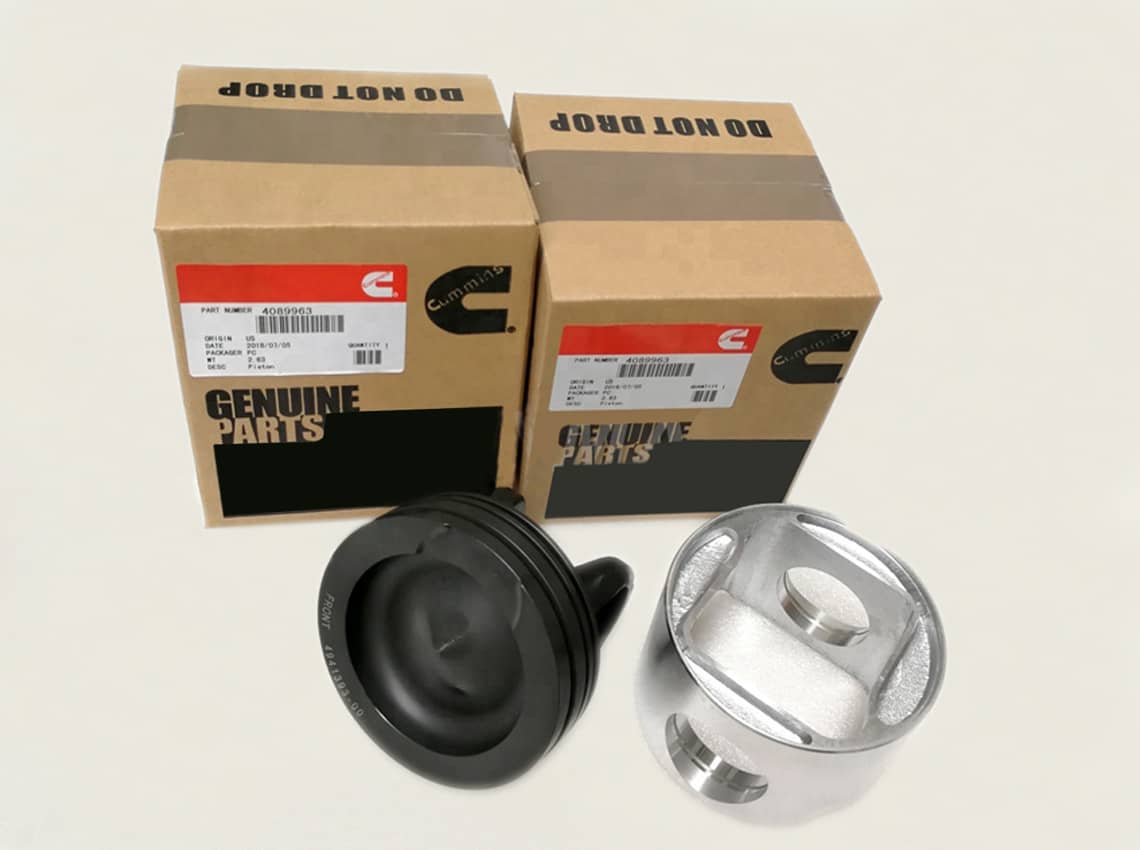

Cummins parts | P/N: 4089963

Piston Kit | P/N: 4089963

DCEC Cummins engine parts | P/N: 5291445

Water Pump | P/N: 5291445

Genuine Cummins Parts | 3919937

Cylinder Liner | P/N: 3919937

Cummins diesel parts | P/N: 4946370

Cylinder block | P/N: 4946370

Cummins parts guarantee of engine durability and reliability

Cummins parts
Cummins parts
Cummins parts

Professional configuration, best quality

CCEC Cummins production plant

Professional configuration, best quality

Advanced design and sophisticated manufacturing, adapt to a variety of harsh working conditions, high strength, strong ability to work under heavy loads.

The cylinder block and cylinder head adopt an integrated design to prevent the occurrence of engine water and oil leakage. The parts are about 40% less than other similar engines, and the failure rate is greatly reduced.

Using forged steel camshaft and crankshaft, high-strength cylinder block design, multiple parts cast on the cylinder block, high rigidity, high pressure resistance, good reliability, and longer service life.

The cylinder bore adopts a platform mesh honing design, which is perfect The geometric structure effectively prevents oil leakage, and adopts advanced technologies such as new piston ring components and gasket crimping molding to reduce oil loss.

Adopt Holset supercharger with integral wastegate valve, low-speed response and strong power, three-stage fuel filter to ensure a balanced level of particulate dispersion, protect the main components of the fuel system, and maximize the life of the engine.

Electronic control system can intelligently switch the working mode according to the environment and operating conditions, and has the functions of self-diagnosis, alarm and remote monitoring.

Don't see the parts you are looking for? Click Here and we can get it for you or send you a quote from the thousands of commonly used Cummins parts.
