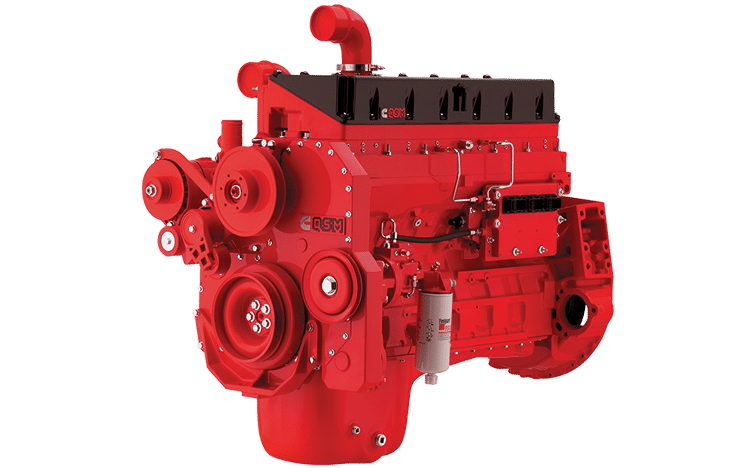

Cummins engine QSM11-400 technique specification
|Bore*stroke||125 * 147mm|
|Intake method||Turbocharged & Charge Air Cooled|
|Fuel systeme||Common Rail High Pressure Injection|
|Control System||Full Electronic Control System(ECM)|
|Compression Ratio||16.3 : 1|
|Governor Type||Eelectronic Control|
|Fuel Consumption @ Rated Power||217 g/kw.h|
|Starting System||Electrical Starting Motor 24V/750A,12V/500A|
Cummins diesel engine QSM11-400 trade information
|Warranty time||1year or 1500h|
|Weight net||984 Kg|
|Weight gross||1100 Kg|
|Marine delivary boat||Masket/zhongyuan|
|Delivary time||15 working days|
|Mode of transport||Sea transportation or air transportation|
Lubrication system: All moving parts are forced to lubricate; the large-capacity gear pump provides pressure lubricating oil to lubricate the bearings and cool the piston; the oil cooler, full-flow filter, and bypass filter maintain good oil condition.
Fuel system: Cummins PT fuel system, optimized combustion, surging power; STC distributed timing system to ensure better combustion in all working conditions; low-pressure fuel supply system, equipped with fuel one-way circuit, safe and reliable.
Cooling system: Forced water cooling with geared centrifugal water pump, large flow channel design, good cooling effect; spin-on water filter and special DCA additives can effectively prevent rust and cavitation, control the acidity of the coolant and remove impurities.
Intake and exhaust system: efficient Holset exhaust gas supercharger to further improve combustion; pressure pulse exhaust pipe can make full use of exhaust gas energy and improve engine efficiency; air-to-air cooling technology ensures better fuel economy and emissions.

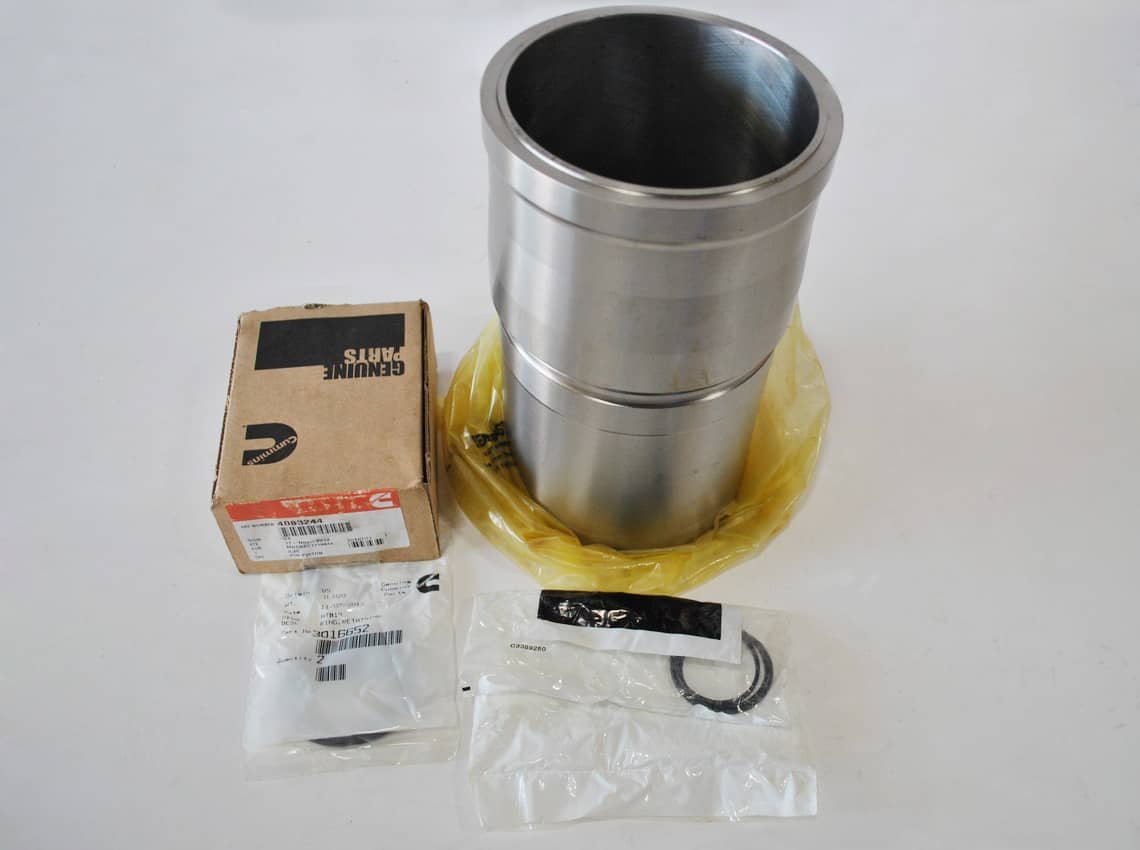

Reliable Quality and High Dispatching Ratio: State-of-the-art manufacturing and rigorous testing ensures that Genuine Cummins parts perform at Cummins factory-specified levels of durability, reliability and performance, Key assemblies and parts are imported from the US, including cylinder block, cylinder head, piston, camshaft and connecting rod mechanism.
Don't see the parts you are looking for? Click Here and we can get it for you or send you a quote from the thousands of commonly used Cummins parts.
