| Engine model | X12NS6B490 |
| Engine type | 4 stroke, 6 cylinders in line |
| Displacement | 11.8 L |
| Rated Power | 360kW (490 HP) @ 1900rpm |
| Peak Torque | 2300 N.m @ 1000-1400rpm |
| Emission Standard | Euro Ⅵ |
| Use for | Commercial Vehicle |

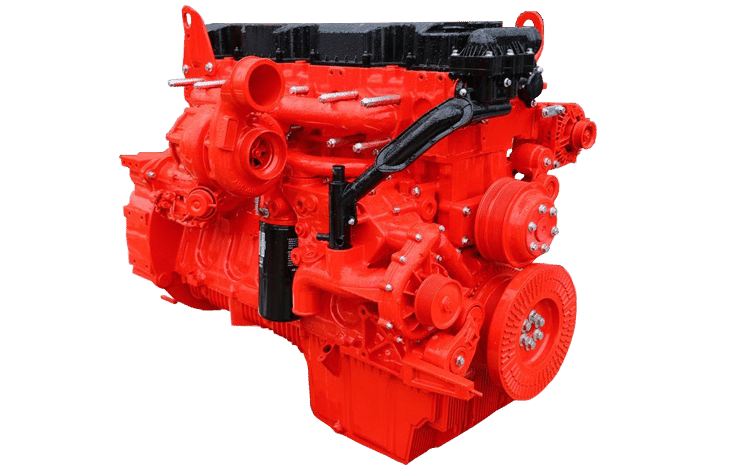

Cummins engine X12NS6B490 technique specification |
|
|---|---|
| Bore*stroke | 107 * 127mm |
| Intake method | Turbochager & Intercooled |
| Fuel systeme | Bosch Direct Injection/HPCR, SCR |
| Governor Type | Electronic Control |
| Compression Ratio | 17.2 : 1 |
| Fuel Consumption: | 195g/kW.h @ Rated Power |
| Lowest Starting Temp .(with/without auxiliary system) | -10℃/-35℃ |
| Firing order | 1-5-3-6-2-4 |
| Adaptation range | Suitable for light trucks, medium buses, and medium buses |
Cummins diesel engine X12NS6B490 trade information |
|
|---|---|
| Warranty time | 1year or 1500h |
| Engine Size(L*W*H): | 1487mm*898mm*1051mm |
| Packing size | 1547mm*958mm*1111mm |
| Weight net | 851 Kg |
| Weight gross | 900 Kg |
| Delivary port | Shanghai |
| Marine delivary boat | Masket/zhongyuan |
| Delivary time | 15 working days |
| Trade termes | FOB/CIF/CNF |
| Payement termes | T/T，L/C |
| Mode of transport | Sea transportation or air transportation |
Built for durability, longevity, and dependability
Cummins Genuine Parts are built to exact specifications for our products, and made using materials and procedures that match our dependable products. This is why our parts are better than non-genuine parts.
Using Genuine Cummins parts makes all the difference. Genuine Cummins new and ReCon® parts are guaranteed to fit right and work right.
Extend the life of your equipment by choosing the best parts for your Cummins engine or generator.
Backed by Cummins with a 100% comprehensive warranty on parts, labour and progressive damage nothing works better or lasts longer.
The difference between Genuine Cummins parts and non-genuine parts isn’t always the easiest to detect.
Precision design, state-of-the-art manufacturing and rigorous testing ensures that Genuine Cummins parts perform at Cummins factory-specified levels of durability, reliability and performance.
Don't see the parts you are looking for? Click Here and we can get it for you or send you a quote from the thousands of commonly used Cummins parts.
