The robust engine design guarantees high operational safety, also even under extreme conditions when working underground The very compact engine design of the V engine and the integrated cooling system reduce the installation costs. Low operating costs due to low fuel consumption, low amounts of ventilation, as well as long maintenance intervals with low maintenance requirements. Capacity: 1.6 l/cylinder, modular system with single cylinders. Certified in accordance with US-MSHA (Mine Safety and Health Administation).
Lifecycle Costs
fast delivery
Reliability
Technology
Product Range
| Engine model | F 6 L 413 FW |
| Engine type | 4 stroke, 6 cylinder Vee |
| Displacement | 584 in3 / 9.6 L |
| Rated Power | 102 kW @ 2300 RPM |
| Peak Torque | 500N.m @ 1500～2300 RPM |
| Cooling type | Air Cooled |
| Emission Standard | EU II, US T2 |

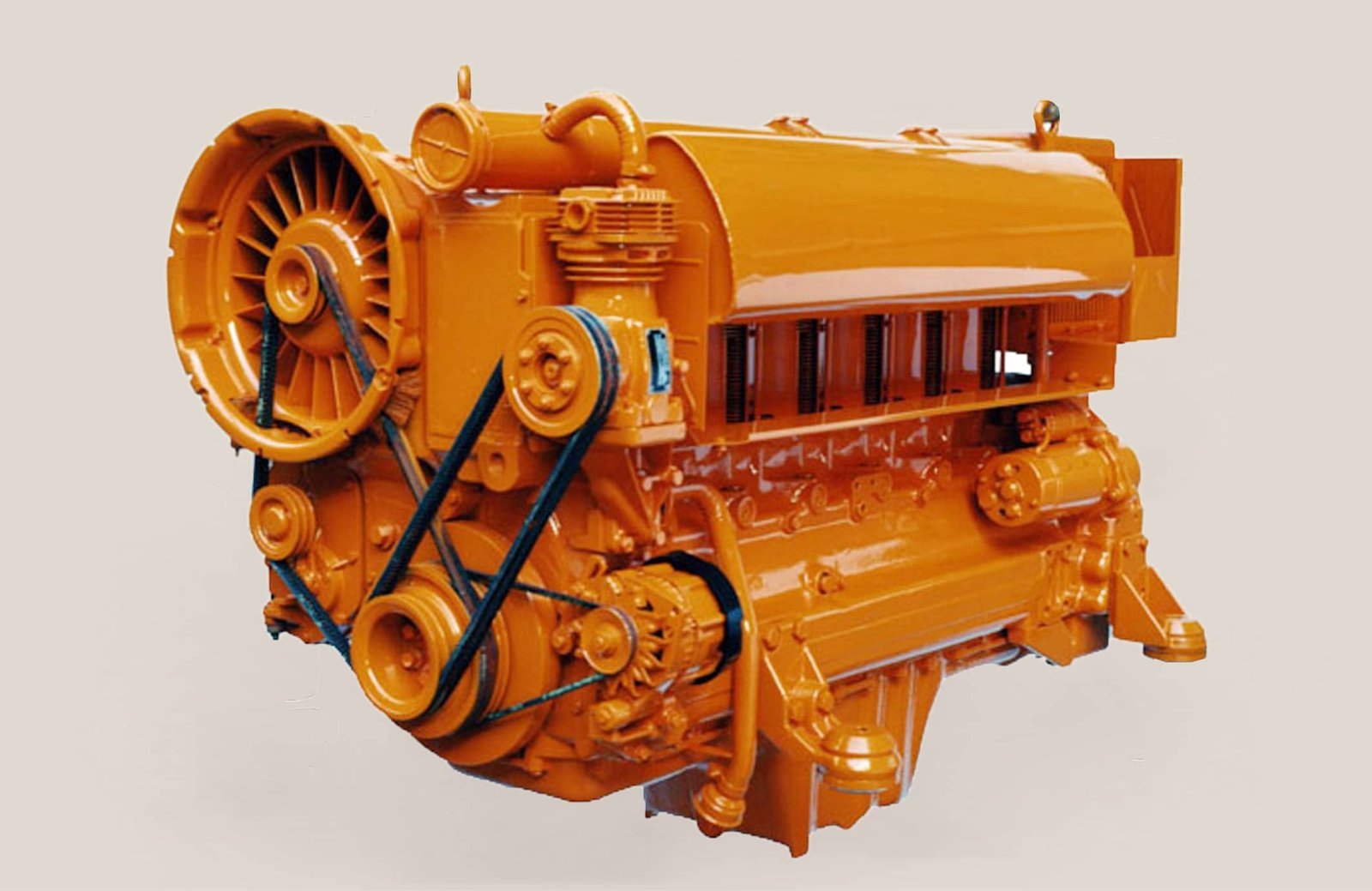

| Engine model | F 4 L 413 FR |
| Engine type | 4 stroke, 4 cylinder in line |
| Displacement | 390 in3 / 6.381 L |
| Rated Power | 51 - 94 kW @ 2300 RPM |
| Peak Torque | 408N.m @ 1500～2500 RPM |
| Cooling type | Air Cooled |
| Emission Standard | EU II, US T2 |
| Engine model | BF 12 L 413 FC |
| Engine type | 4 stroke, 12 cylinders Vee |
| Displacement | 1168 in3 / 19.144 L |
| Rated Power | 230 - 386 kW @ 2300 RPM |
| Peak Torque | 1695N.m @ 1500～2500 RPM |
| Cooling type | Air Cooled |
| Emission Standard | EU II, US T2 |
| Engine model | BF 12 L 413 F |
| Engine type | 4 stroke, 12 cylinders Vee |
| Displacement | 1168 in3 / 19.144 L |
| Rated Power | 194 - 353 kW @ 2300 RPM |
| Peak Torque | 1470N.m @ 1500～2500 RPM |
| Cooling type | Air Cooled |
| Emission Standard | EU II, US T2 |
| Engine model | F 12 L 413 F |
| Engine type | 4 stroke, 12 cylinders Vee |
| Displacement | 1168 in3 / 19.144 L |
| Rated Power | 154 - 282 kW @ 2300 RPM |
| Peak Torque | 1226N.m @ 1500～2500 RPM |
| Cooling type | Air Cooled |
| Emission Standard | EU II, US T2 |
| Engine model | F 10 L 413 F |
| Engine type | 4 stroke, 10 cylinders Vee |
| Displacement | 998 in3 / 15.953 L |
| Rated Power | 129 - 235 kW @ 2300 RPM |
| Peak Torque | 1020N.m @ 1500～2500 RPM |
| Cooling type | Air Cooled |
| Emission Standard | EU II, US T2 |
| Engine model | F 8 L 413 F |
| Engine type | 4 stroke, 8 cylinders Vee |
| Displacement | 779 in3 / 12.763 L |
| Rated Power | 103 - 188 kW @ 2300 RPM |
| Peak Torque | 760N.m @ 1500～2500 RPM |
| Cooling type | Air Cooled |
| Emission Standard | EU II, US T2 |
| Engine model | F 6 L 413 F |
| Engine type | 4 stroke, 6 cylinders Vee |
| Displacement | 584 in3 / 9.572 L |
| Rated Power | 77 - 141 kW @ 2300 RPM |
| Peak Torque | 613N.m @ 1500～2500 RPM |
| Cooling type | Air Cooled |
| Emission Standard | EU II, US T2 |
| Engine model | BF 8 L 413 F/C |
| Engine type | 4 stroke, 8 cylinders Vee |
| Displacement | 779 in3 / 12.763 L |
| Rated Power | 129 - 235 kW @ 2300 RPM |
| Peak Torque | 980N.m @ 1500～2500 RPM |
| Cooling type | Air Cooled |
| Emission Standard | EU II, US T2 |
| Models | Bore * Stroke | RPM range | Maximum torque |
|---|---|---|---|
| F 6 L 413 F | 125 * 130 / 4.9 in * 5.1 in | 1500～2500 | 613 Nm | 445 lb/ft |
| F 8 L 413 F | 125 * 130 / 4.9 in * 5.1 in | 1500～2500 | 760 Nm | 552 lb/ft |
| BF 8 L 413 F/C | 125 * 130 / 4.9 in * 5.1 in | 1500～2500 | 980 Nm | 712 lb/ft |
| F 10 L 413 F | 125 * 130 / 4.9 in * 5.1 in | 1500～2500 | 1020 Nm | 740 lb/ft |
| F 12 L 413 F | 125 * 130 / 4.9 in * 5.1 in | 1500～2500 | 1226 Nm | 890 lb/ft |
| BF 12 L 413 F | 125 * 130 / 4.9 in * 5.1 in | 1500～2500 | 1470 Nm | 1070 lb/ft |
| BF 12 L 413 FC | 125 * 130 / 4.9 in * 5.1 in | 1500～2500 | 1695 Nm | 1235 lb/ft |
| F 10 L 413 FW | 125 * 130 / 4.9 in * 5.1 in | 1500～2300 | 830 Nm | 605 lb/ft |
| F 12 L 413 FW | 125 * 130 / 4.9 in * 5.1 in | 1500～2300 | 995 Nm | 734 lb/ft |
| F 4 L 413 FR | 125 * 130 / 4.9 in * 5.1 in | 1500～2500 | 408 Nm | 296 lb/ft |
