M Series

Cummins® G-Drive M11 engines

CCEC Cummins M Series Generator engine

Cummins® G-Drive M11 engines

  • Super power, green and environmental protection
  • Large displacement: While meeting the power requirements of heavy trucks, it ensures higher reliability, durability and safety of the engine.

    High power: The maximum power reaches 420 horsepower, which meets the requirements of modern logistics for fast, efficient and safe.

    Large torque: The maximum torque is 1650N.m, and the power is strong, which can meet the requirements of starting heavy trucks with heavy loads and going up long slopes.

  • Low fuel consumption and good economy
  • Cummins PT fuel system, ultra-high injection pressure, ensures good atomization and complete combustion of the engine.

    The high-efficiency Holset exhaust gas turbocharger can ensure more sufficient air intake, improve engine efficiency, further improve combustion, and reduce engine specific fuel consumption.

    The air-to-air cooling technology ensures more sufficient air intake and better fuel economy, STC separate timing system ensures better combustion under high and low load conditions.

  • Compact structure and easy maintenance
  • It is easy to replace the wet cylinder liner and has good heat dissipation effect. The components of all models are highly versatile, highly serialized, and easy to maintain. The cylinder block and cylinder head adopt built-in pressure lubricating oil passages, which are compact in structure and low in failure rate. As a Cummins One of the main models of the family, the M11 engine has won high recognition from customers in various fields for its strong power, ultra-low fuel consumption, high reliability and low maintenance cost.

Cummins logo
Cummins logo
  • Construction Engines
  • Product Type Spectrum

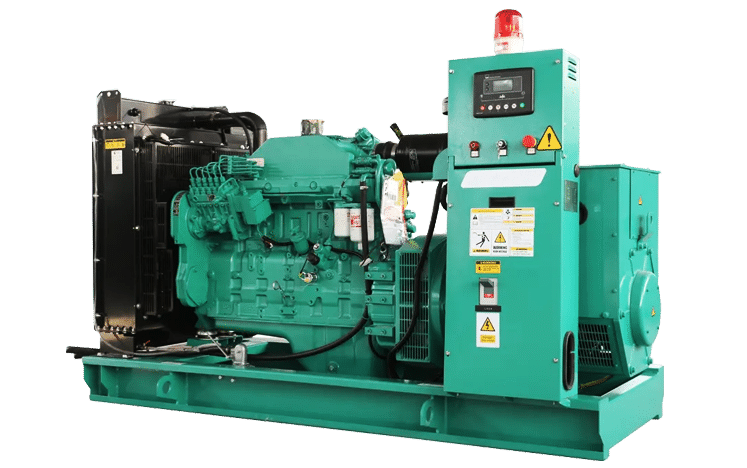

Engine model QSM11-G2
Engine type 4 stroke, 6 cylinders in line
Displacement 661 in3 / 10.8 L
Rated Power 319kW (401.9 Kva) @ 1800 rpm
Compression Ratio 16.3:1
Frequency 60Hz
Alternator Stamford / Marathon
Engine model QSM11-G2
Engine type 4 stroke, 6 cylinders in line
Displacement 661 in3 / 10.8 L
Rated Power 292kW (367.9 Kva) @ 1500 rpm
Compression Ratio 16.3:1
Frequency 50Hz
Alternator Stamford / Marathon

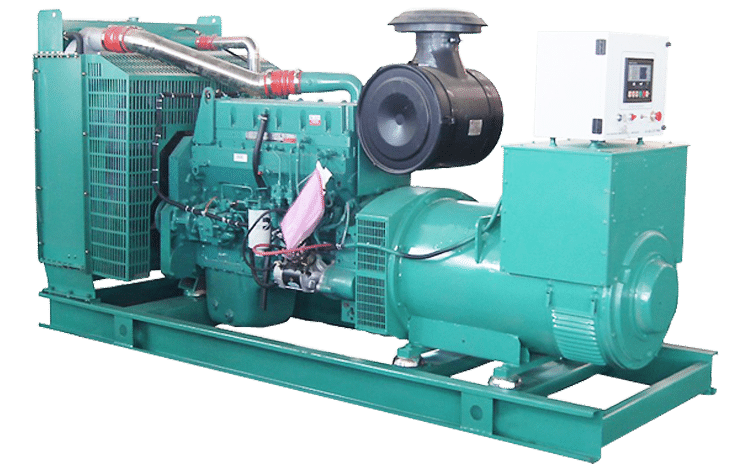

Engine model MTAA11-G3
Engine type 4 stroke, 6 cylinders in line
Displacement 661 in3 / 10.8 L
Rated Power 282kW (355.3 Kva) @ 1500 rpm
Compression Ratio 15.0:1
Frequency 50Hz
Alternator Stamford / Marathon
Engine model MTAA11-G2
Engine type 4 stroke, 6 cylinders in line
Displacement 661 in3 / 10.8 L
Rated Power 283kW (356.6 Kva) @ 1800 rpm
Compression Ratio 16.1:1
Frequency 60Hz
Alternator Stamford / Marathon
Engine model MTAA11-G2
Engine type 4 stroke, 6 cylinders in line
Displacement 661 in3 / 10.8 L
Rated Power 224kW (282.2 Kva) @ 1500 rpm
Compression Ratio 16.1:1
Frequency 50Hz
Alternator Stamford / Marathon

DEPENDABLE POWER, PERFECT FOR YOU

DEPENDABLE POWER, PERFECT FOR YOU

  • Cummins® M11 heavy-duty engine
  • Rugged 4-cycle, industrial diesel delivers reliable power, low emissions and fast response to load changes.

  • Alternator
  • Several alternator sizes offer selectable motor starting capability with low reactance 2/3 pitch windings, low waveform distortion with non-linear loads and fault clearing short-circuit capability.

  • Control system
  • The PowerCommand® electronic control is standard equipment and provides total genset system integration including automatic remote starting/stopping, precise frequency and voltage regulation, alarm and status message display, AmpSentry™ protection, output metering, auto-shutdown at fault detection and NFPA 110 Level 1 compliance.

  • Cooling system
  • Standard cooling package provides reliable running, at the rated power level, at up to 52 °C (126 °F) ambient temperature.

  • Enclosures
  • Optional weather protective and sound attenuated enclosures are available.Fuel tanks-Dual wall sub-base fuel tanks are also available. Call Cummins Care at CUMMINS™ (0086-21-332-827-11) for expert assistance from a Cummins Care representative. If you need service, representatives are available 24/7/365 to help you find the fastest solution.
