QSL Series

Cummins Engineering Engine QSL Series

DCEC Cummins QSL Series engineering engine

Cummins Engineering Engine QSL Series

  • Excellent reliability
  • Cummins develops and optimizes the integration of key components and provide customized secondary development for customers, maintaining the reliability of original products while considering the specific characteristics of customers.

  • Fuel economy
  • High pressure common rail (HPCR) system ensures rapid throttle response at different engine speeds, better power and fuel economy, and lower noise.

  • Intelligent electronic control
  • Mature intelligent electronic control technology improves the overall engine performance. And the engine can be tailored according to the application requirements.

  • Fuel System
  • Three-stage fuel filter ensures balanced particle dispersion, and protects the main components of the fuel system and maximizes the engine life.

  • Intake and exhaust system
  • Adopting exhaust gas bypass turbocharger enables smooth boost at low engine speed and consistent power output at high engine speed.

  • Remote monitoring function
  • Electronic control system can intelligently switch working modes according to the environment and operating conditions, and has self-diagnosis, alarm and remote monitoring functions.

Cummins logo
Cummins logo
  • Construction Engines
  • Product Type Spectrum



Engine model QSL8.9-C360-30
Engine type 4 stroke, 6 cylinders in line
Displacement 8.9 L
Rated Power 264kW (360 HP) @ 2100 rpm
Peak Torque 1500 N.m @ 1500 rpm
Emission Standard NS Ⅲ / EU stage ⅢA
Use for Construction Machinery
Engine model QSL8.9-C340-30
Engine type 4 stroke, 6 cylinders in line
Displacement 8.9 L
Rated Power 250kW (340 HP) @ 2100 rpm
Peak Torque 1455 N.m @ 1500 rpm
Emission Standard NS Ⅲ / EU stage ⅢA
Use for Construction Machinery
Engine model QSL8.9-C325-30
Engine type 4 stroke, 6 cylinders in line
Displacement 8.9 L
Rated Power 242kW (325 HP) @ 2100 rpm
Peak Torque 1385 N.m @ 1500 rpm
Emission Standard NS Ⅲ / EU stage ⅢA
Use for Construction Machinery
Engine model QSL8.9-C260-30
Engine type 4 stroke, 6 cylinders in line
Displacement 8.9 L
Rated Power 194kW (260 HP) @ 2200 rpm
Peak Torque 1200 N.m @ 1500 rpm
Emission Standard NS Ⅲ / EU stage ⅢA
Use for Construction Machinery
Engine model QSL8.9-C220-32
Engine type 4 stroke, 6 cylinders in line
Displacement 8.9 L
Rated Power 164kW (220 HP) @ 2200 rpm
Peak Torque 980 N.m @ 1350 rpm
Emission Standard NS Ⅲ / EU stage ⅢA
Use for Construction Machinery
Engine model QSL8.9-C360
Engine type 4 stroke, 6 cylinders in line
Displacement 8.9 L
Rated Power 264kW (360 HP) @ 2200 rpm
Peak Torque 1480 N.m @ 1400 rpm
Emission Standard Tier / EU Ⅲ
Use for Construction Machinery
Engine model QSL8.9-C340
Engine type 4 stroke, 6 cylinders in line
Displacement 8.9 L
Rated Power 250kW (340 HP) @ 2200 rpm
Peak Torque 1380 N.m @ 1400 rpm
Emission Standard Tier / EU Ⅲ
Use for Construction Machinery
Engine model QSL8.9-C325
Engine type 4 stroke, 6 cylinders in line
Displacement 8.9 L
Rated Power 239kW (325 HP) @ 2200 rpm
Peak Torque 1260 N.m @ 1400 rpm
Emission Standard Tier / EU Ⅲ
Use for Construction Machinery
Engine model QSL8.9-C300
Engine type 4 stroke, 6 cylinders in line
Displacement 8.9 L
Rated Power 225kW (300 HP) @ 2000 rpm
Peak Torque 1230 N.m @ 1300 rpm
Emission Standard Tier / EU Ⅲ
Use for Construction Machinery

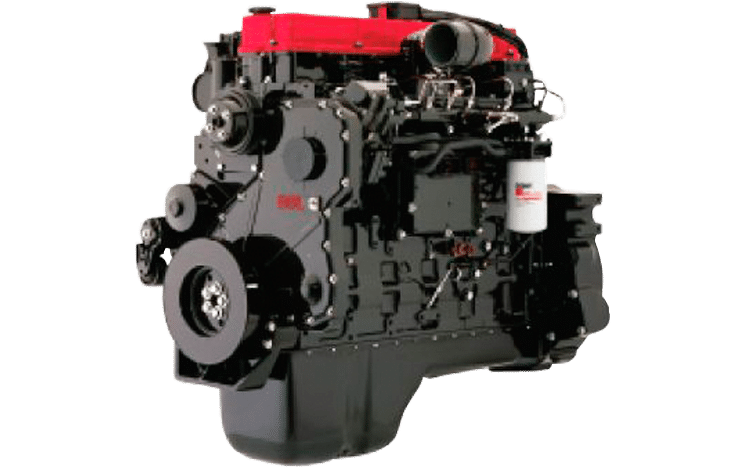

Engine model QSL8.9-C295
Engine type 4 stroke, 6 cylinders in line
Displacement 8.9 L
Rated Power 220kW (295 HP) @ 2100 rpm
Peak Torque 1350 N.m @ 1400 rpm
Emission Standard Tier / EU Ⅲ
Use for Construction Machinery
Engine model QSL8.9-C280
Engine type 4 stroke, 6 cylinders in line
Displacement 8.9 L
Rated Power 209kW (280 HP) @ 2200 rpm
Peak Torque 1250 N.m @ 1400 rpm
Emission Standard Tier / EU Ⅲ
Use for Construction Machinery
Engine model QSL8.9-C260
Engine type 4 stroke, 6 cylinders in line
Displacement 8.9 L
Rated Power 194kW (260 HP) @ 2200 rpm
Peak Torque 1080 N.m @ 1400 rpm
Emission Standard Tier / EU Ⅲ
Use for Construction Machinery
Engine model QSL8.9-C240
Engine type 4 stroke, 6 cylinders in line
Displacement 8.9 L
Rated Power 179kW (240 HP) @ 2200 rpm
Peak Torque 980 N.m @ 1400 rpm
Emission Standard Tier / EU Ⅲ
Use for Construction Machinery
Engine model QSL8.9-C220
Engine type 4 stroke, 6 cylinders in line
Displacement 8.9 L
Rated Power 164kW (220 HP) @ 2200 rpm
Peak Torque 930 N.m @ 1400 rpm
Emission Standard Tier / EU Ⅲ
Use for Construction Machinery

Cummins QSL8.9 construction machinery engines, Source of dreams

Cummins Truck Engine

Cummins QSL8.9 construction machinery engines, Source of dreams

  • Clearly Ahead. Cummins QSL8.9 Engine For Tier 3 Final/Stage Ⅲ.
  • Your job site needs more power, less hassle. Powering construction jobsites around the globe, Cummins QSL8.9 construction engines are the driving force behind the world’s finest construction applications.

    Cummins QSL engine redesigns the filter system for oil products, which has strong fuel adaptability and is suitable for applications in various fields. The overall modular design, the total number of parts is small, the failure rate is low, the structure is compact, and the maintenance is easy.

  • QSL8.9 Series Industrial Engine Advantages
  • Has advanced in-cylinder combustion technology, which offering superior reliability and durability of the engine’s base platform, has good inheritance and long lasting, easy to upgrade.

    Emissions solutions of particulate filter (DPF) combined with cooling exhaust gas recirculation (CEGR) can achieve Tier 4 emission standards, fuel economy increased by 5%.

  • High-quality service covers the whole process
  • Regardless of your needs, Cummins QSL series engines can match your needs; Getting the right combination to match your equipment, environment and workloads has never been easier;Every QSL engine is covered by Cummins three-step warranty, one of the most comprehensive and simplest plans in the industry.

  • Call Cummins Care at CUMMINS™ (0086-21-332-827-11) for expert assistance from a Cummins Care representative. If you need service, representatives are available 24/7/365 to help you find the fastest solution.
