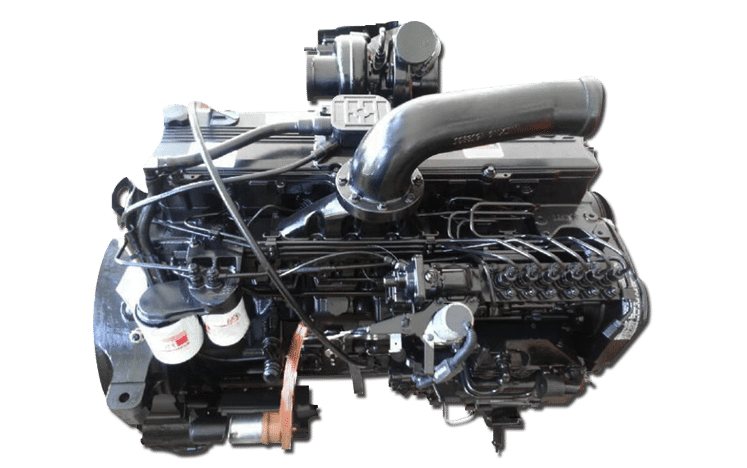

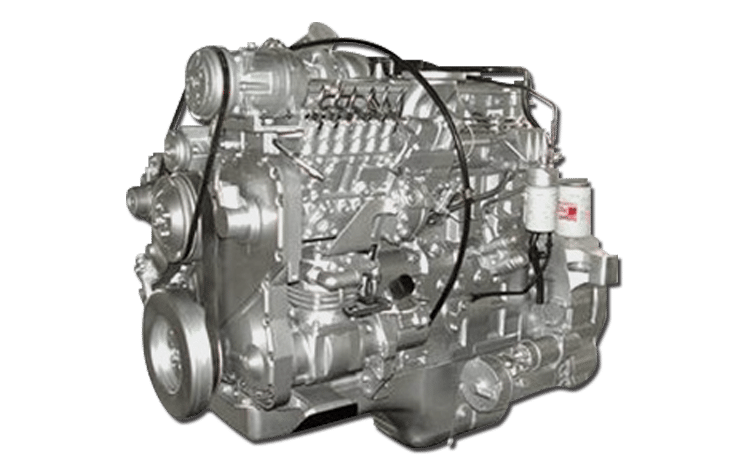

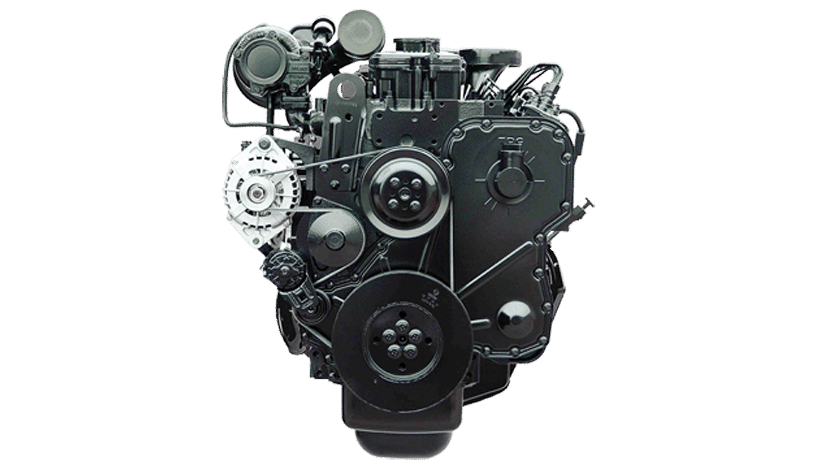

Cummins engines L series
Performance of Cummins L series vehicle engine:
- 24-Valve Cylinder Head for increased air flow, improved low-end torque and response, higher power density, improved fuel consumption and improved emissions.
- Centered Injection System is centered over piston for improved combustion and emissions.
- Higher ring locations eliminates airspace in the combustion chamber for better combustion and lower emissions.
- Increased airflow delivers a much better combustion efficiency.
- Piston Articulated design featuring forged steel crown and aluminum skirt allows for higher top ring position optimizing fuel efficiency.
- Roller tappet, the robust design for for heavey duty diesel.
- More than 10% engines, life-to-overhaul exceed 800,000KM.Meet Euro II emission regulations.
-
Cummins Heavy-duty vehicle engines
-
Product Type Spectrum
| Engine model |
L270-30 |
| Engine type |
6 cylinders in line |
| Displacement |
8.9 L |
| Rated Power |
199KW(270 HP)@2200rpm |
| Peak Torque |
1150N.m @ 1400 rpm |
| Emission Standard |
Euro Ⅲ |
| Use for |
truck |
| Engine model |
L290-30 |
| Engine type |
6 cylinders in line |
| Displacement |
8.9 L |
| Rated Power |
221KW(290 HP)@2200rpm |
| Peak Torque |
1180N.m @ 1400 rpm |
| Emission Standard |
Euro Ⅲ |
| Use for |
Construction vehicles |
| Engine model |
L300-20 |
| Engine type |
6 cylinders in line |
| Displacement |
8.9 L |
| Rated Power |
221KW(300 HP)@2200rpm |
| Peak Torque |
1180N.m @ 1400 rpm |
| Emission Standard |
Euro Ⅱ |
| Use for |
truck |
| Engine model |
L315-30 |
| Engine type |
6 cylinders in line |
| Displacement |
8.9 L |
| Rated Power |
230KW(315 HP)@2200rpm |
| Peak Torque |
1180N.m @ 1300 rpm |
| Emission Standard |
Euro Ⅲ |
| Use for |
truck |
| Engine model |
L325-20 |
| Engine type |
6 cylinders in line |
| Displacement |
8.9 L |
| Rated Power |
239KW(325 HP)@2200rpm |
| Peak Torque |
1230N.m @ 1400 rpm |
| Emission Standard |
Euro Ⅱ |
| Use for |
truck |
| Engine model |
L340-30 |
| Engine type |
6 cylinders in line |
| Displacement |
8.9 L |
| Rated Power |
250KW(340 HP)@2200rpm |
| Peak Torque |
1350N.m @ 1400 rpm |
| Emission Standard |
Euro Ⅲ |
| Use for |
Construction vehicles |
| Engine model |
L375-30 |
| Engine type |
6 cylinders in line |
| Displacement |
8.9 L |
| Rated Power |
276KW(375 HP)@2200rpm |
| Peak Torque |
1480N.m @ 1400 rpm |
| Emission Standard |
Euro Ⅲ |
| Use for |
truck |
