| Engine model | 6CTAA8.3-C260 |
| Engine type | 6 cylinders in line |
| Displacement | 8.3 L |
| Rated Power | 194 kW/260HP @ 2200rpm |
| Peak Torque | 1100N.m @ 1400 rpm |
| Emission Standard | Euro II |
| Manufacturer | DCEC Cummins |

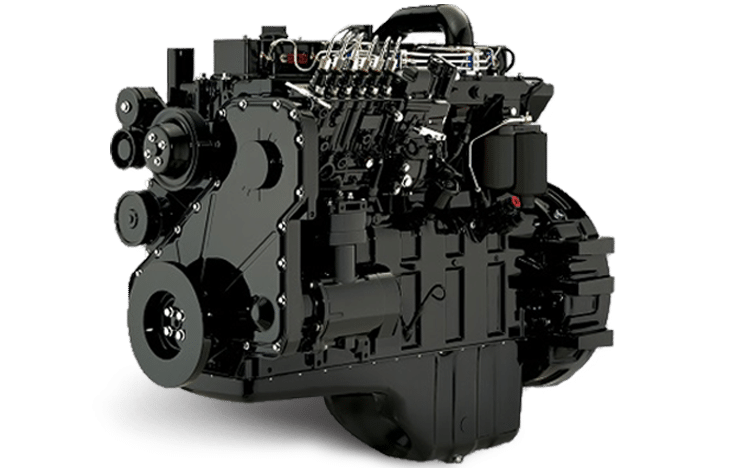

Cummins engine 6CTAA8.3-C260 technique specification |
|
|---|---|
| Bore*stroke | 114 mm* 135mm |
| Intake method | Turbocharged & Aftercooled |
| Fuel systeme | Weifu PW2000/RSV |
| Cooling method | Fluid Cooling 9.80 L |
| Governor Type | Mechanical Control |
| Compression Ratio | 18 : 1 |
| Fuel Consumption | 231g/kW.h @ Rated Power |
| Lowest Starting Temp .(with/without auxiliary system) | -12℃ |
| Starting System | Electrical Starting Motor 12V/24V |
Cummins diesel engine 6CTAA8.3-C260 trade information |
|
| Warranty time | 1year or 1500h |
| Engine Size(L*W*H) | 1560mm*900mm*1400mm |
| Packing size | 1680mm*1020mm*1480mm |
| Weight net | 760 Kg |
| Weight gross | 850 Kg |
| Delivary port | Shanghai |
| Marine delivary boat | Masket/zhongyuan |
| Delivary time | 15 working days |
| Trade termes | FOB/CIF/EXW |
| Payement termes | T/T，L/C |
| Mode of transport | Sea transportation or air transportation |
Using Genuine Cummins parts makes all the difference. Genuine Cummins new and ReCon® parts are guaranteed to fit right and work right.
Extend the life of your equipment by choosing the best parts for your Cummins engine or generator.
Backed by Cummins with a 100% comprehensive warranty on parts, labour and progressive damage nothing works better or lasts longer.
The difference between Genuine Cummins parts and non-genuine parts isn’t always the easiest to detect.
Precision design, state-of-the-art manufacturing and rigorous testing ensures that Genuine Cummins parts perform at Cummins factory-specified levels of durability, reliability and performance.
Don't see the parts you are looking for? Click Here and we can get it for you or send you a quote from the thousands of commonly used Cummins parts.
