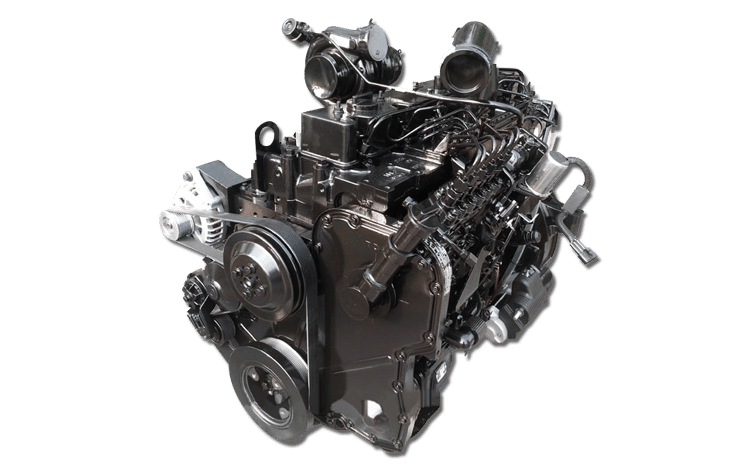

| Engine model | C230-33 |
| Engine type | 4 stroke, 6 cylinder in line |
| Displacement | 8.3 L |
| Rated Power | 170kW (230 HP)@2200rpm |
| Peak Torque | 861 N.m @1300rpm |
| Emission Standard | Euro Ⅲ |
| Use for | truck |
Cummins engine C230-33 technique specification |
|
|---|---|
| Bore*stroke | 114 * 135mm |
| Intake method | Turbochager & Intercooled |
| Fuel systeme | Bosch PW2000 Pump |
| Cooling method | Fluid Cooling 12.3 L |
| Governor Type | Mechanical Control |
| Compression Ratio | 18 : 1 |
| Fuel Consumption | 40.4 L/hr @ Rated Power |
| Starting System | Electrical Starting Motor 24V/510A |
| Lowest Starting Temp .(with/without auxiliary system) | -10℃/-25℃ |
Cummins diesel engine C230-33 trade parameters |
|
| Warranty time | 1year or 1500h |
| Engine Size(L*W*H): | 1180mm*920mm*1280mm |
| Packing size | 1200mm*950mm*1300mm |
| Weight net | 420 Kg |
| Weight gross | 450 Kg |
| Delivary port | Shanghai |
| Marine delivary boat | Masket/zhongyuan |
| Trade termes | FOB/CIF/CNF |
| Delivary time | 15 working days |
| Payement termes | T/T，L/C |
| Mode of transport | Sea transportation or air transportation |

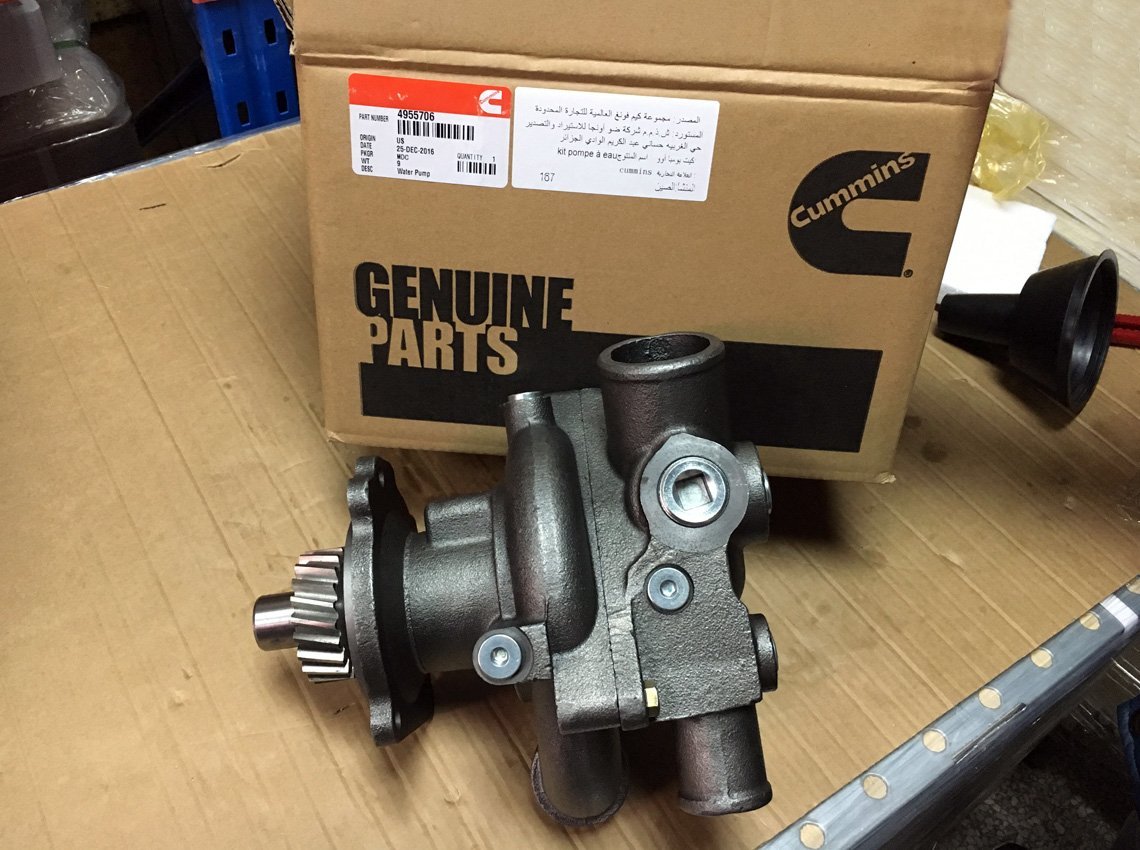

Using Genuine Cummins parts makes all the difference. Genuine Cummins new and ReCon® parts are guaranteed to fit right and work right.
Extend the life of your equipment by choosing the best parts for your Cummins engine or generator.
Backed by Cummins with a 100% comprehensive warranty on parts, labour and progressive damage nothing works better or lasts longer.
The difference between Genuine Cummins parts and non-genuine parts isn’t always the easiest to detect.
Precision design, state-of-the-art manufacturing and rigorous testing ensures that Genuine Cummins parts perform at Cummins factory-specified levels of durability, reliability and performance.
Don't see the parts you are looking for? Click Here and we can get it for you or send you a quote from the thousands of commonly used Cummins parts.
