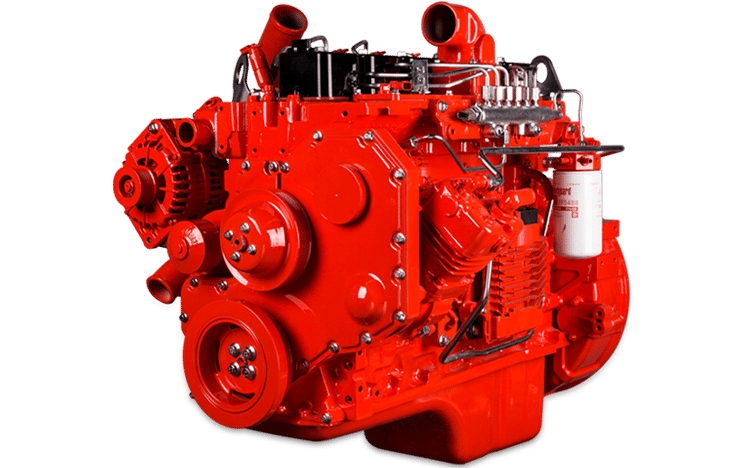

Cummins engine QSB5.9-C190-31 technique specification

Bore*stroke 102 * 120mm
Intake method Turbocharged intercooled
Fuel systeme BOSCH high pressure common rail system
Cooling Method Water Cooled
Firing Order 1-5-3-6-2-4
Control system ECM Eelectronic Control
Minimum Fuel Consumption/speed 216g/KW.h/1500RPM
Maximum Fuel Consumption/speed 240g/KW.h/2000RPM
Manufacturer DCEC Cummins

Cummins diesel engine QSB5.9-C190-31 trade information

Warranty time 1year or 1500h
Engine Size(L*W*H): 1015mm*725mm*990mm
Packing size 1215mm*850mm*1090mm
Weight net 453 Kg
Weight gross 510 Kg
Delivary port Shanghai
Marine delivary boat Masket/zhongyuan
Delivary time 15 working days
Trade termes FOB/CIF/CNF
Payement termes T/T,L/C
Mode of transport Sea transportation or air transportation

Original/genuine parts

Cummins parts | P/N: 5482359

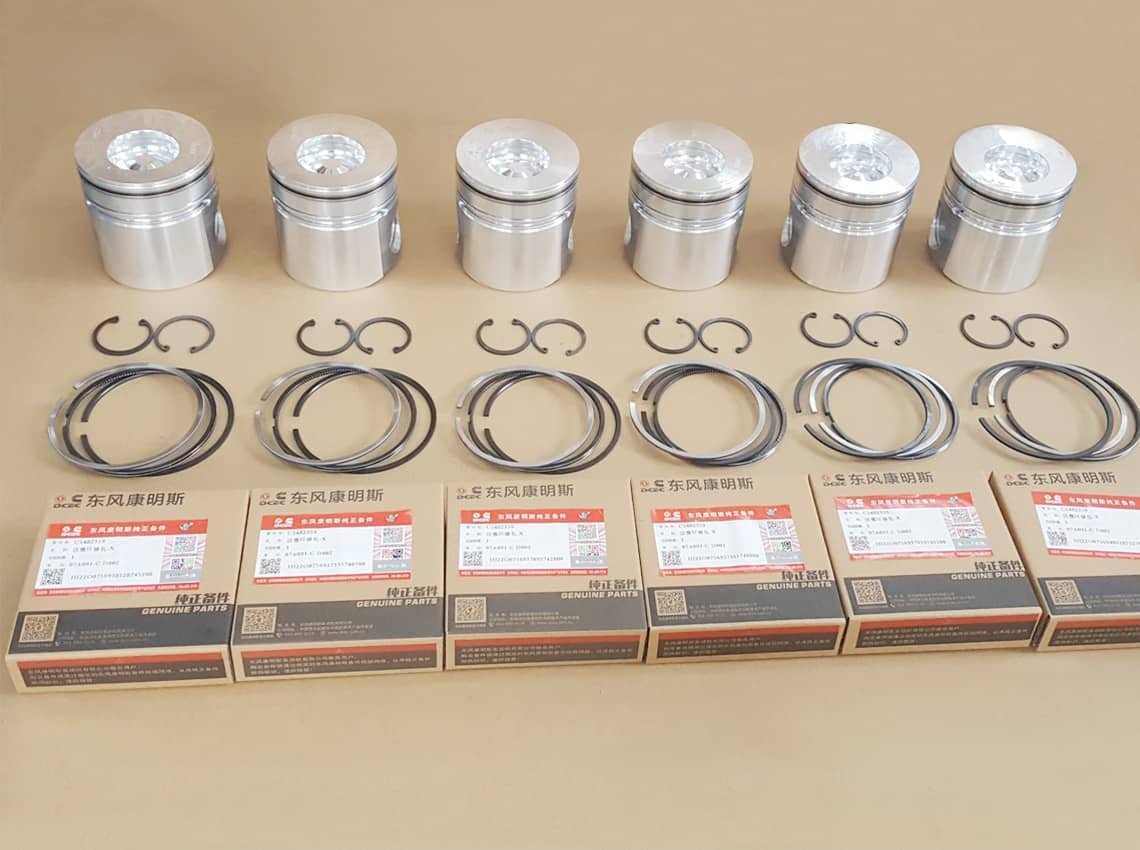

Piston Kit | P/N: 5482359

DCEC Cummins engine parts | P/N: 3354943

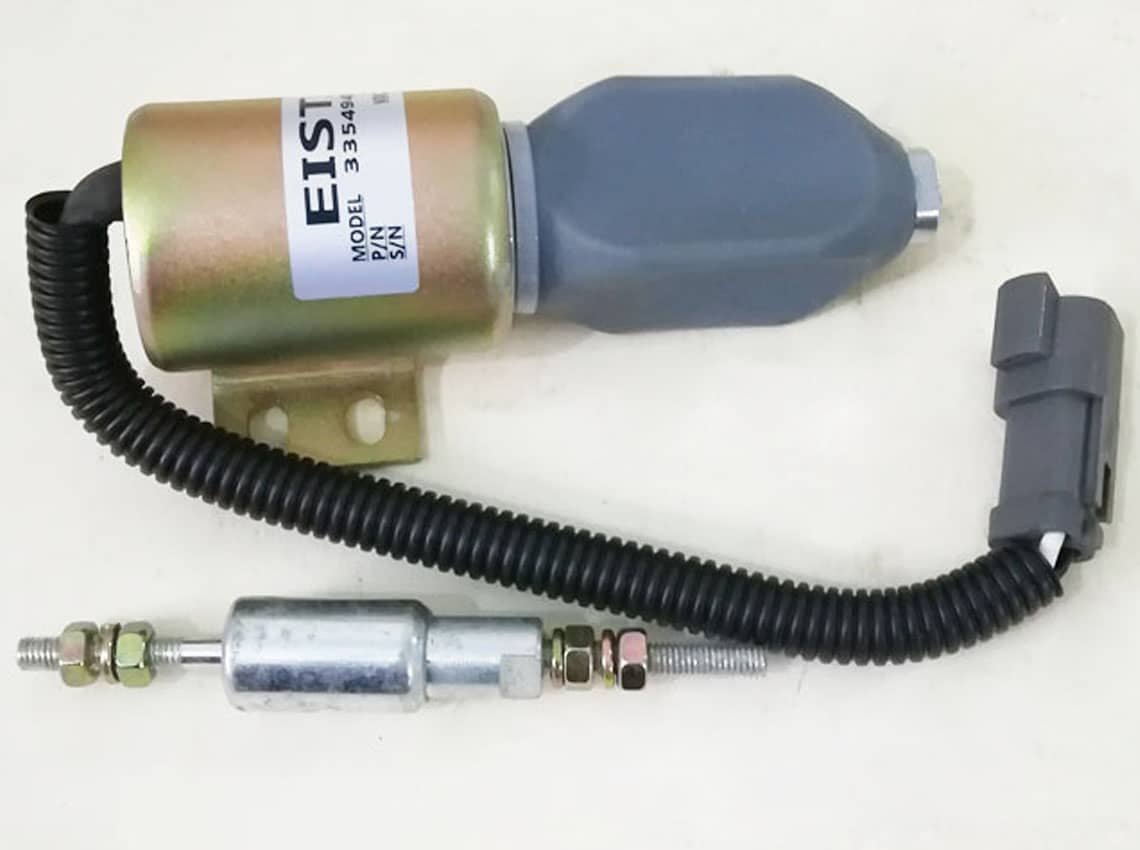

Fuel Shutdown Solenoid | P/N: 3354943

Genuine Cummins Parts | 4938598

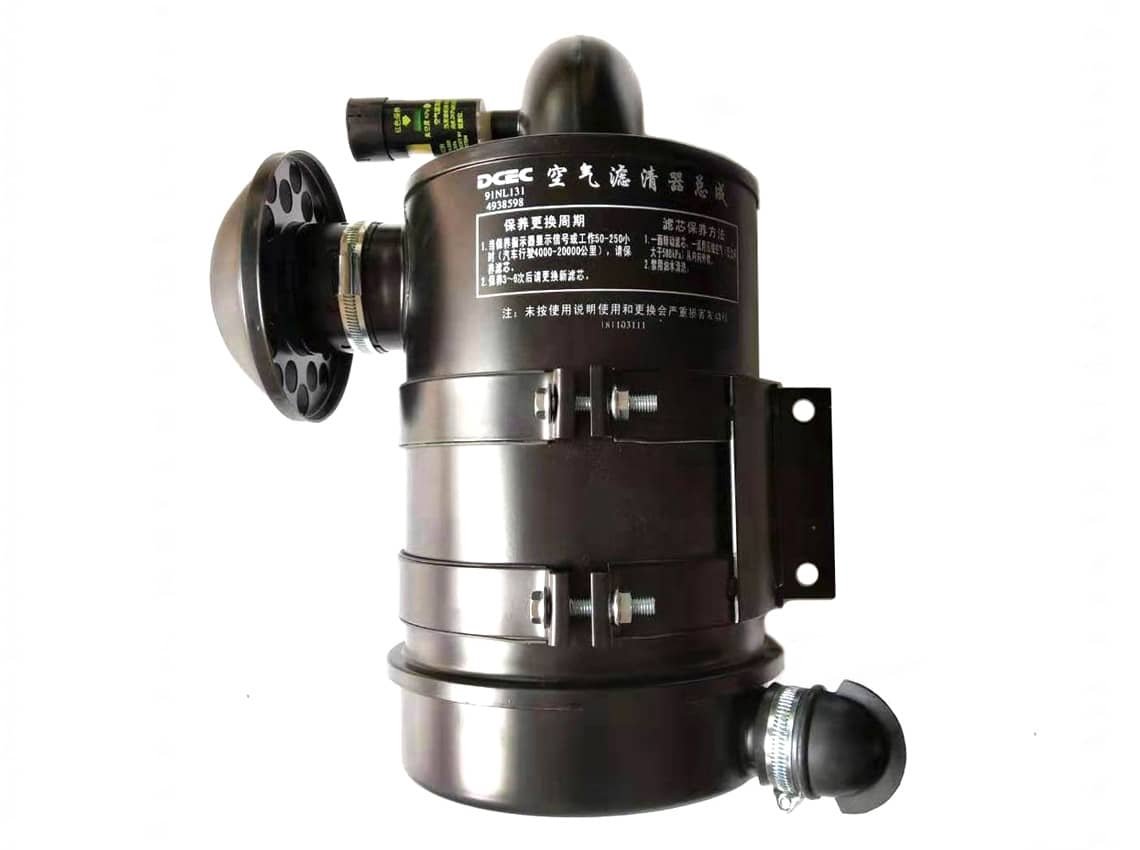

Air Filter Assembly | P/N: 4938598

Cummins diesel parts | P/N: 3285414

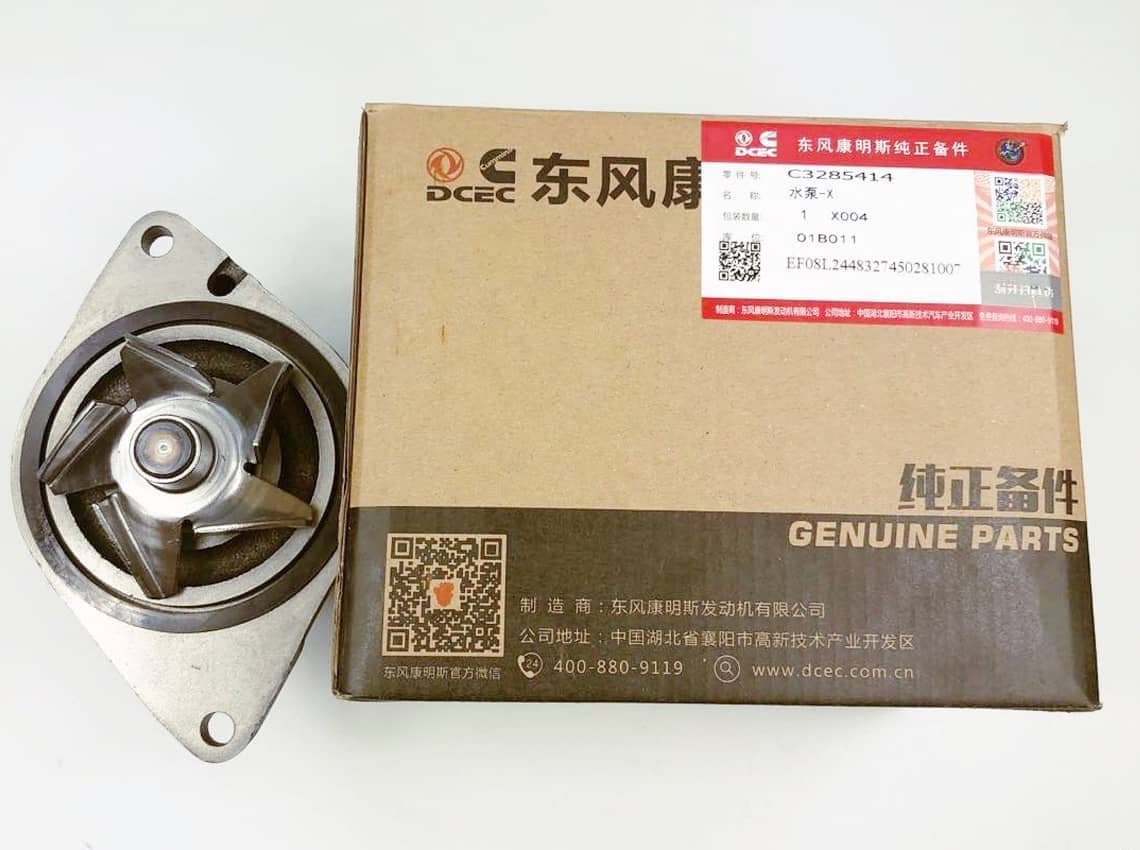

Wster Pump | P/N: 3285414

Cummins parts guarantee of engine durability and reliability

Cummins parts
Cummins parts
Cummins parts

Professional configuration, best quality

CCEC Cummins production plant

Professional configuration, best quality

Advanced design and sophisticated manufacturing, adapt to a variety of harsh working conditions, high strength, strong ability to work under heavy loads.

The cylinder block and cylinder head adopt an integrated design to prevent the occurrence of engine water and oil leakage. The parts are about 40% less than other similar engines, and the failure rate is greatly reduced.

Using forged steel camshaft and crankshaft, high-strength cylinder block design, multiple parts cast on the cylinder block, high rigidity, high pressure resistance, good reliability, and longer service life.

The cylinder bore adopts a platform mesh honing design, which is perfect The geometric structure effectively prevents oil leakage, and adopts advanced technologies such as new piston ring components and gasket crimping molding to reduce oil loss.

Adopt Holset supercharger with integral wastegate valve, low-speed response and strong power, three-stage fuel filter to ensure a balanced level of particulate dispersion, protect the main components of the fuel system, and maximize the life of the engine.

Electronic control system can intelligently switch the working mode according to the environment and operating conditions, and has the functions of self-diagnosis, alarm and remote monitoring.

Don't see the parts you are looking for? Click Here and we can get it for you or send you a quote from the thousands of commonly used Cummins parts.
