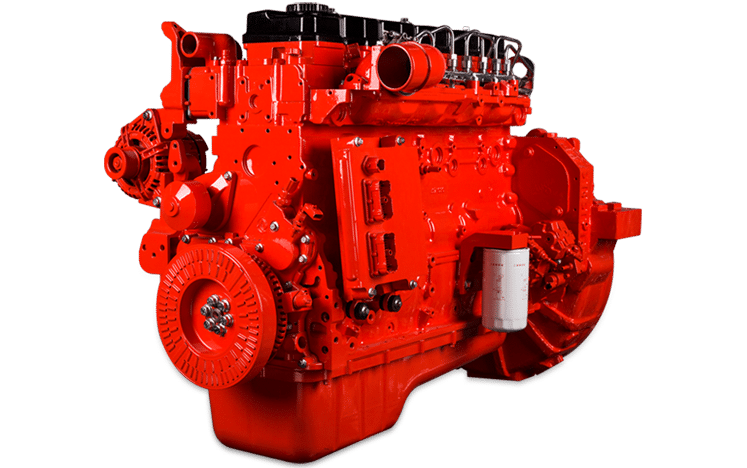

Cummins engine QSB6.7-C260-30 technique specification

Bore*stroke 107 * 124mm
Intake method Turbocharged intercooled
Fuel systeme BOSCH high pressure common rail system
Cooling Method Water Cooled
Firing Order 1-5-3-6-2-4
Control system ECM Eelectronic Control
Fuel Consumption @ Rated Power 228g/KW.h @ 260 HP
Starting System Electrical Starting Motor 24V/750A,12V/500A
Manufacturer DCEC Cummins

Cummins diesel engine QSB6.7-C260-30 trade information

Warranty time 1year or 1500h
Engine Size(L*W*H): 1150mm*810mm*910mm
Packing size 1250mm*910mm*1050mm
Weight net 520 Kg
Weight gross 600 Kg
Delivary port Shanghai
Marine delivary boat Masket/zhongyuan
Delivary time 15 working days
Trade termes FOB/CIF/CNF
Payement termes T/T,L/C
Mode of transport Sea transportation or air transportation

Original/genuine parts

Cummins parts | P/N: 3080760

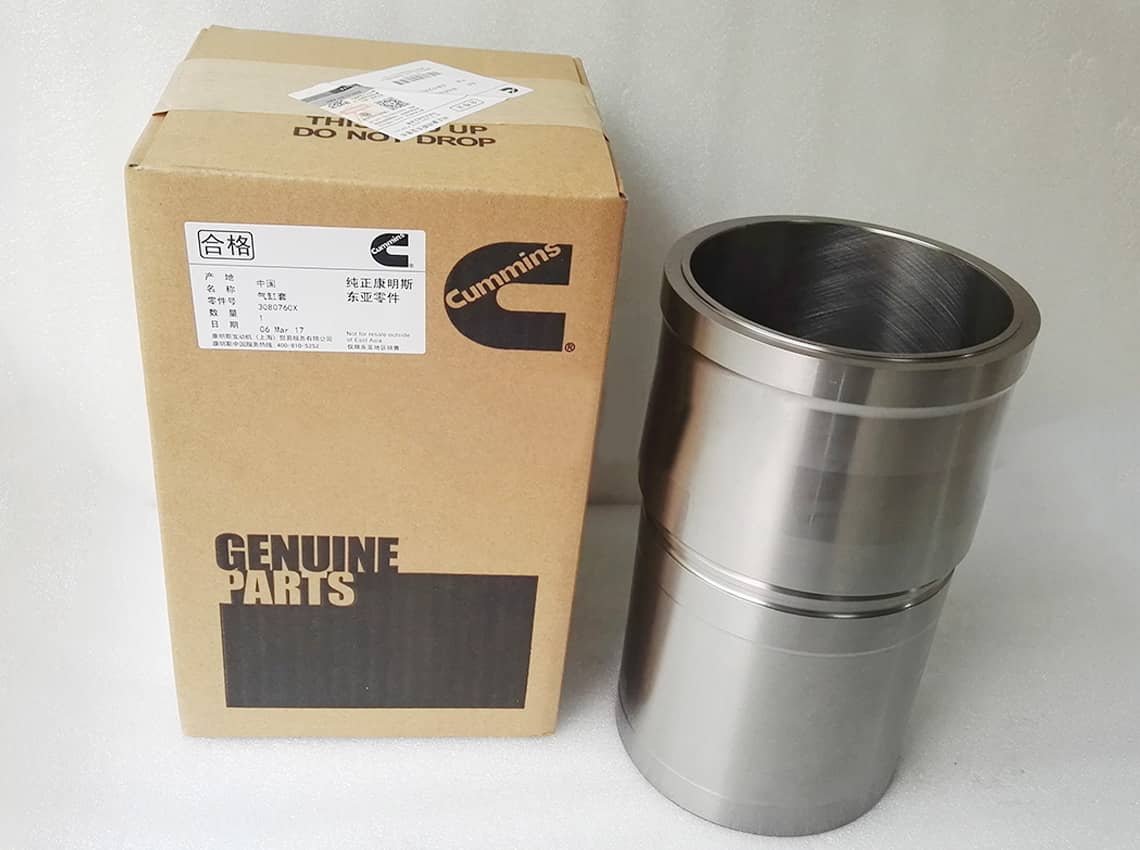

Cylinder Liner | P/N: 3080760

DCEC Cummins engine parts | P/N: 3914086

Belt tensioner | P/N: 3914086

Genuine Cummins Parts | 4955853

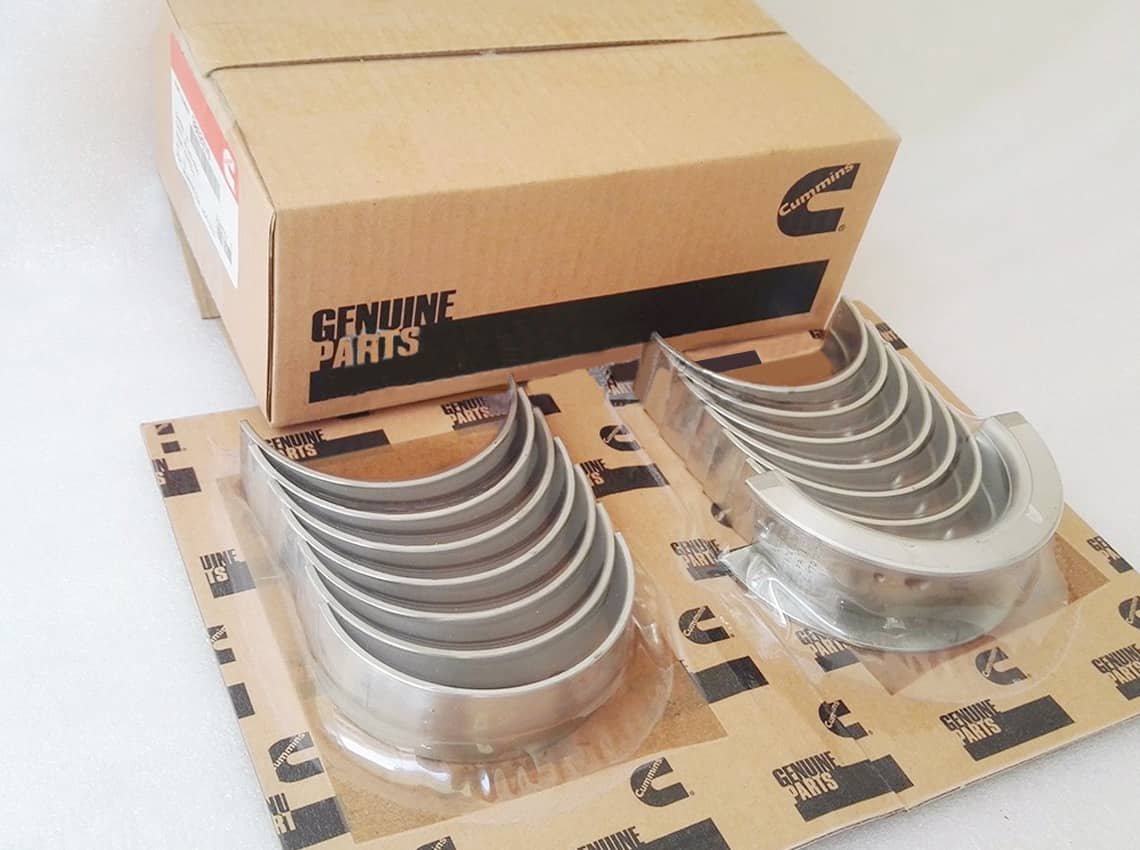

Main Bearing | P/N: 4955853

Cummins diesel parts | P/N: 3901569

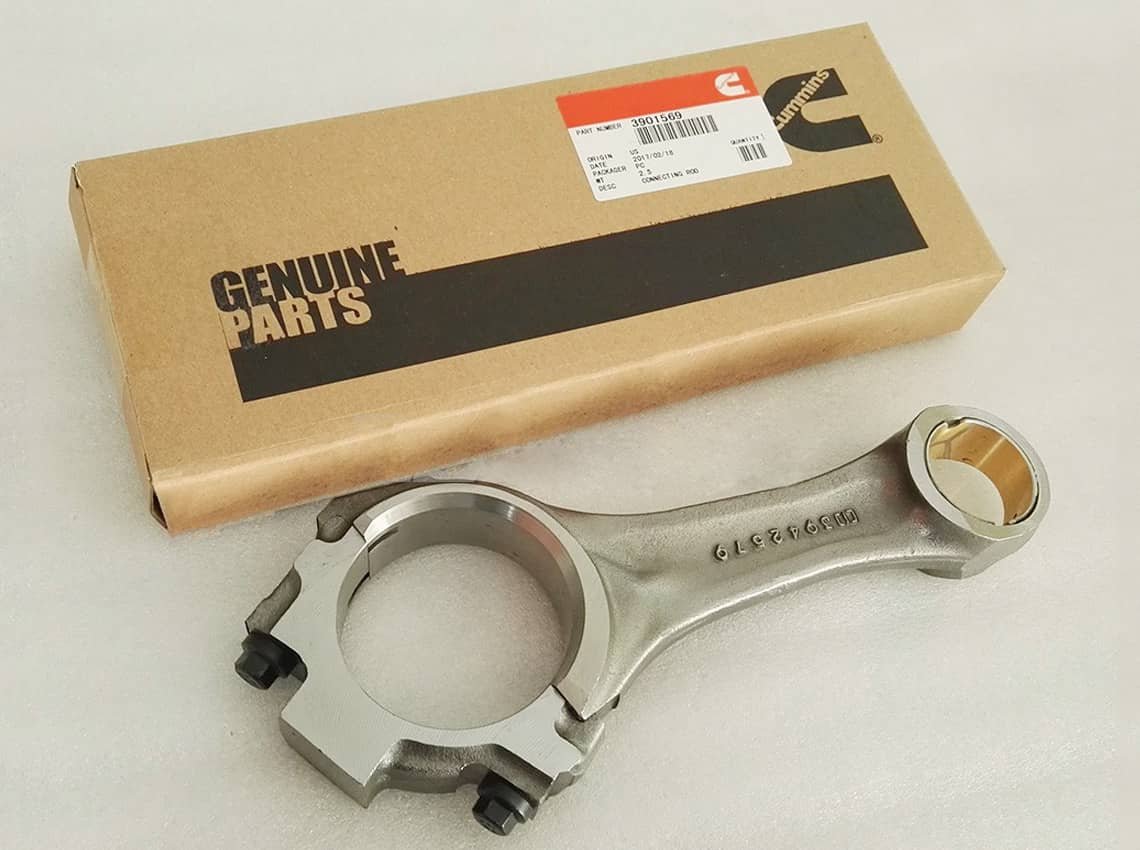

Connecting Rod | P/N: 3901569

Cummins parts guarantee of engine durability and reliability

Cummins parts
Cummins parts
Cummins parts

Professional configuration, best quality

CCEC Cummins production plant

Professional configuration, best quality

Advanced design and sophisticated manufacturing, adapt to a variety of harsh working conditions, high strength, strong ability to work under heavy loads.

The cylinder block and cylinder head adopt an integrated design to prevent the occurrence of engine water and oil leakage. The parts are about 40% less than other similar engines, and the failure rate is greatly reduced.

Using forged steel camshaft and crankshaft, high-strength cylinder block design, multiple parts cast on the cylinder block, high rigidity, high pressure resistance, good reliability, and longer service life.

The cylinder bore adopts a platform mesh honing design, which is perfect The geometric structure effectively prevents oil leakage, and adopts advanced technologies such as new piston ring components and gasket crimping molding to reduce oil loss.

Adopt Holset supercharger with integral wastegate valve, low-speed response and strong power, three-stage fuel filter to ensure a balanced level of particulate dispersion, protect the main components of the fuel system, and maximize the life of the engine.

Electronic control system can intelligently switch the working mode according to the environment and operating conditions, and has the functions of self-diagnosis, alarm and remote monitoring.
